| Insertion Loss: |
Less Than 0.2dB |
| Flammability: |
UL94-V0 |
| Housing Color: |
Blue (Upc Version), Green (APC Version) |
| Durability: |
Less Than 0.1dB Typical Change 500mating |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Transmission Medium: |
Singlemode and Multimode |
| Ferrule Endface: |
Upc/APC |
| Application: |
FTTX FTTH |
| Connector Type: |
Sc Adapter with Auto-Shutter |
| Brand: |
Fiberlink or OEM |
Product Description
SC Adapter with Auto Open Shutter comply with UL94 of V0
Fiberlink SC Fiber optic Auto shutter Adapters are specially designed to suit FTTH applications. The auto shutter is designed to prevent ingress of dust and also to prevent accidental exposure to laser. Auto Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter. all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.

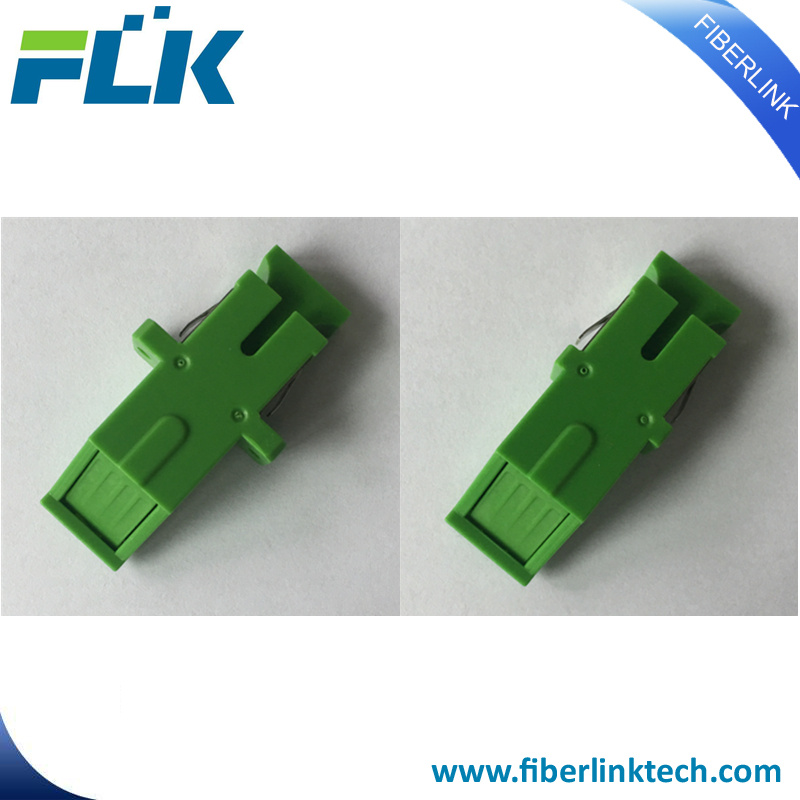

| Option A, with Flange | Option B, without Flange |
|
|
Shutter opens and closes automatically, friendly use
Applications
The SC adapter with integrated swing shutter is designed for FTTH applications.
It can be used with the FTTH wall outlet as its integrated swing shutter
Ensures a maxi- mum eye protection from the laser beam.
The adapter can also be used in harsh environments
Features
Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
UPC(blue) and APC(green) version available
Flange version as well as flangeless version available
Maximum dust & eye protection
Shutter opens and closes automatically
User friendly
Low Insertion Loss.
RoHS Compliance
Specification
| Item | Characteristic |
| Insertion Loss | <0.2dB |
| Durability | <0.1dB typical change, >500mating |
| Flammability | UL94-V0 |
| Operating Temperature | -40ºC to +75ºC |
| Housing Material | PC |
| Housing Color | Blue (UPC Version), Green (APC Version) |
| Application | SC adapter |
