FTTX MTRJ Sm Assembly Fiber Optic Patch Cord
| Price: |
US $ 0.5-3/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MTRJ SM Assembly fiber optic patch cord |
| Diameter (mm): |
0.9mm, 2.0mm, 3.0mm |
| Operating Wavelength: |
1310, 1550nm |
| Exchangeability: |
Less Than or Equal to 0.2 dB |
| Repeatability: |
Less Than or Equal to 0.2 dB |
| Operating Temperature: |
-40 to +75 C |
| Storage Temperature: |
-40 to +85 C |
| Applications: |
Telecommunication,CATV,LAN,ODF |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
E2000 |
| Sheath Material: |
LSZH |
Product Description

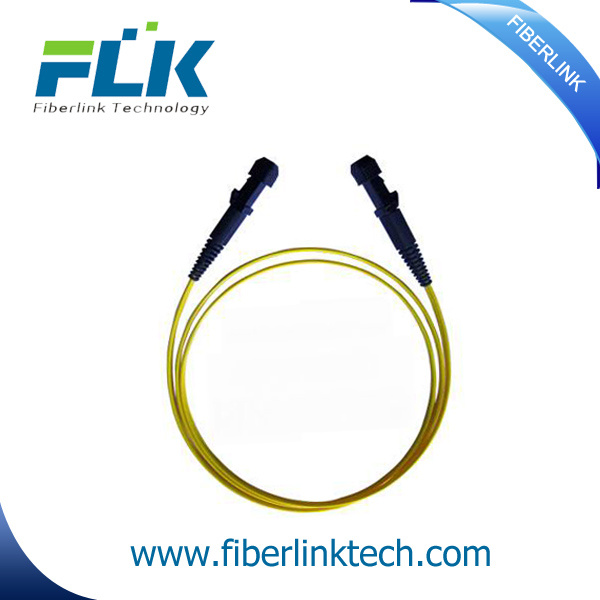

FTTX MTRJ SM Assembly fiber optic patch cord
Descriptions

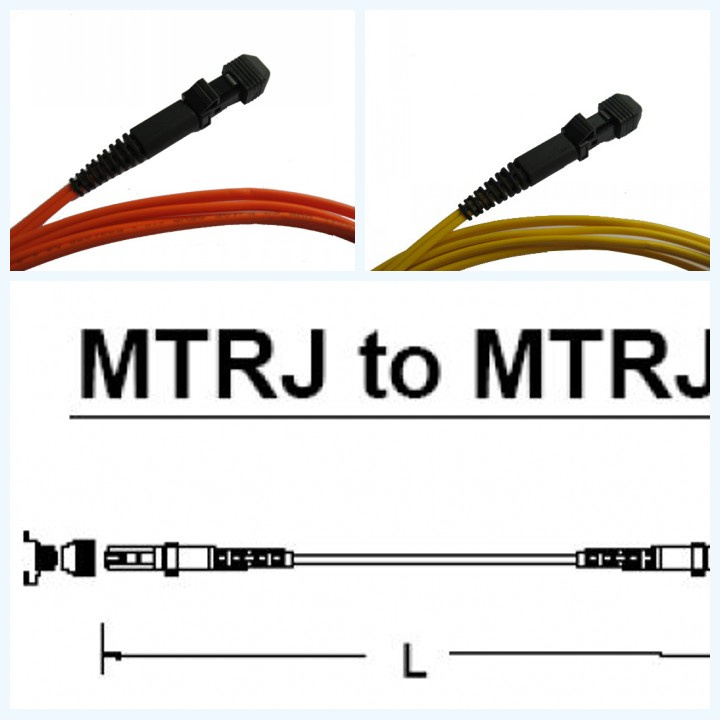

MTRJ Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features
SM & MM performance to TIA specification
At half the size of SC duplex connector space saving and cost effective
Available in male and female versions
RJ45style larch easily into existing copper
Network patch panel cutout
Applications
Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP
Specification:| Types | Single mode | Multi mode |
| Diameter (mm) | Ф0.9, Ф2.0, Ф3.0 |
| Fiber cable | Simplex or Duplex available |
| Operating Wavelength | 1310, 1550nm |
| Insertion Loss (dB) | ≤ 0.3 (PC)
≤ 0.3 (UPC)
≤ 0.3 (APC) | ≤ 0.5 (PC)
≤ 0.5 (UPC) |
| Return Loss (dB) | >= 45 (PC)
>= 50 (UPC)
>= 60 (APC) | >= 35 (PC)
>= 40 (UPC) |
| Exchangeability | ≤ 0.2 dB |
| Repeatability | ≤ 0.2 dB |
| Operating Temperature | -40 to +75 ºC |
| Storage Temperature | -40 to +85 ºC |
Our fiber patch cord production line:

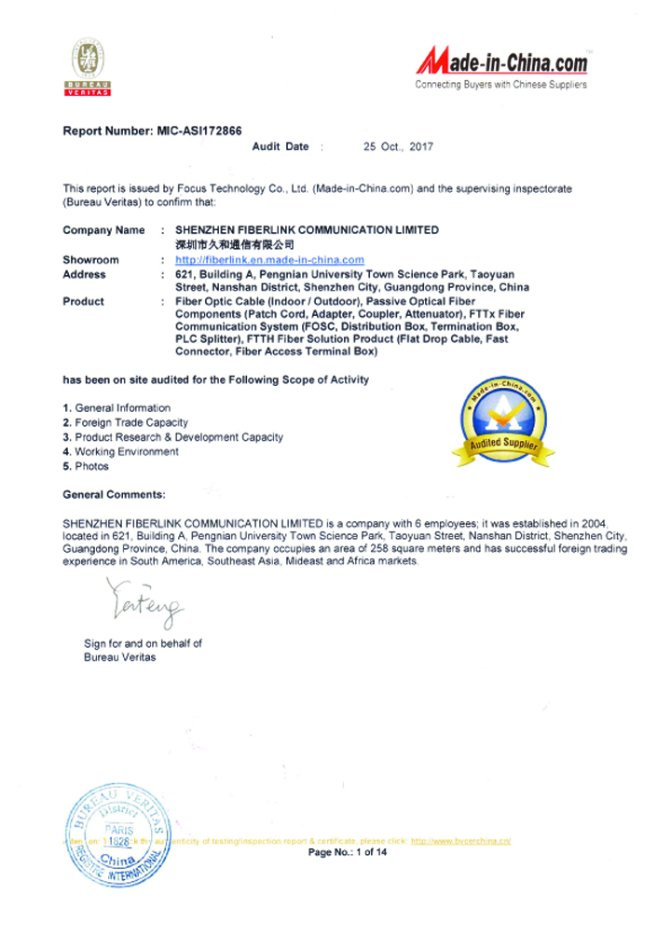

Certifications
Shipping:
Service:
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 9 years experience in this field. We are the prefessional supplier that you can trust.
FAQ
Q1:How can you guarantee the delivery time?
A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.
2. We can regulate the penalty clause in the contract for the late delay.
Q2:What's your best price?
A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
Q3:What's your MOQ?
A:Low MOQ, 1pc for sample checking is available
Q4:Can I print our own logo on the product?
A:Yes, Please send your logo to us.
Q5:Can you provide OEM/ODM service?
A:Yes, we can. Please tell us the details of your requirements
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7:Why choose us to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
How to Contact with me
Hope this would be a good start for our cooperation!
Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.
Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.
OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
