Fu-100 Clamp CT Split Core Current Transformer Manufacturers China

Name: Fu-100 Clamp CT Split Core Current Transformer Manufacturers China
Brand: all-electronics-online.com
SKU: 722383542
Availability: InStock
Rating: 4.4 (43 reviews)

Price:	US $ 30-300/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU-100
Ratio:	1000: 5 or 2000:5 , Customized
Key Words:	Clamp CT Manufacturers
Model:	Clamp CT Transformer
Overload Withstand:	1.2 Times Rated Current Continuously
Accuracy:	0.2%, 0.5 %, 1%
System Voltage:	720V(0.72kv)
Output Signal:	1A or 5A 333mv AC or 100mv-2V Optional
Burden:	2.5va
Frequency Range:	40 Hz-500 Hz
Max. Jaw Opening:	100 mm
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

Product Name

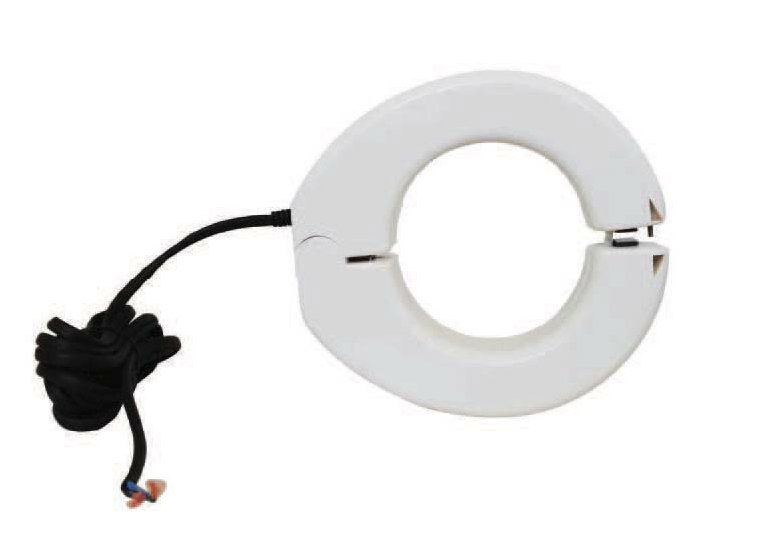

FU-100 Clamp ct Split Core Current Transformer manufacturers china

The GFUVE FU-100 clamp ct transformer are compact and low cost current transformers with high accuracy.
The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple
installation mechanisms provide stable and durable current measurement.
Applications
1. Energy sub - meter
2. Power meters
3. Power quality monitoring
4. HVAC & Pumps, etc
5. Distributed measurement system
Features
1. Most cost-effective
2. Faster installation
3. Safe and easy installations
4. High accuracy 0.5
5. Holding wire diameter: φ100mm
6. Ratio's ranging from 400/1A to 3000/5A
7. CE, UL
Parameters

Technical parameters
Standards	IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio	1000: 5 or 2000:5 , customized
Nominal input current(Primary current)	400A/500A/600A/800A/1000A/1200A/1500A/2000A/3000A
Overload withstand	1.2 times rated current continuously
Accuracy	0.2%, 0.5 %, 1%
System Voltage	720V(0.72kV)
Output signal	1A or 5A 333mV AC or 100mV-2V optional
Burden	2.5VA
Frequency range	40 Hz-500 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Output	Standard 2.5 meter cable
Max. jaw opening	100mm
Mechanical parameters
Dimensions (W×D×H) (mm)	170mm×184.5mm×41mm
Weight(Kg)	1
Operating conditions
Operating temperature	-25°C to +55°C
Relative Humidity	0-85% non-condensing
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
