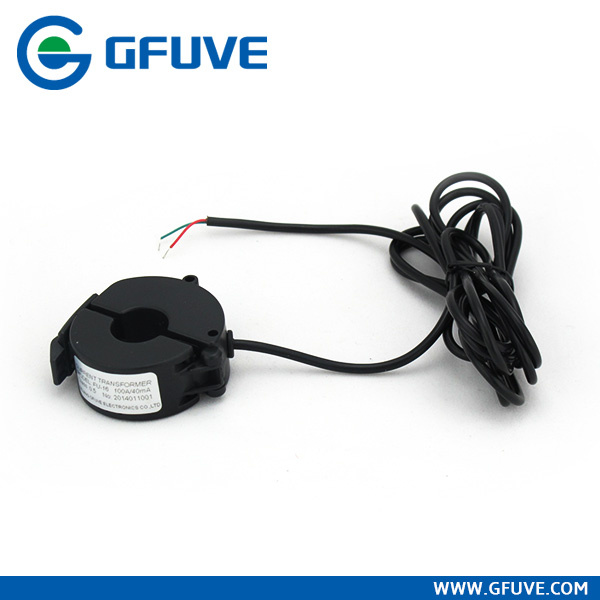

Fu-16 Mv Output Split Core Current Transformer

Name: Fu-16 Mv Output Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 706570582
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fu-16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Characteristic And Application:	Avaliable for Cable That Under 100A Online Measure
Diameter Of Clamping Wire:	16mm
Overall Dimensions:	57mmx76mmx20mm
Load Capacity:	Less Than 4
Output Mode:	Lead Output
Accuracy:	0.5\0.2
Ratio:	100A/0.333V
Weight:	60g
Output Signal:	2.5m Cable
Color:	Black
Application:	Lighting
Type:	Current Transformer
Phase:	Single
Installation:	Active Type, Suspension

Product Description

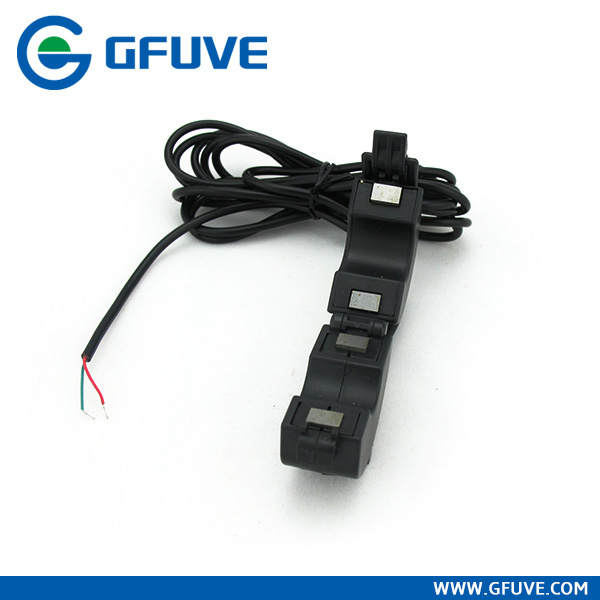

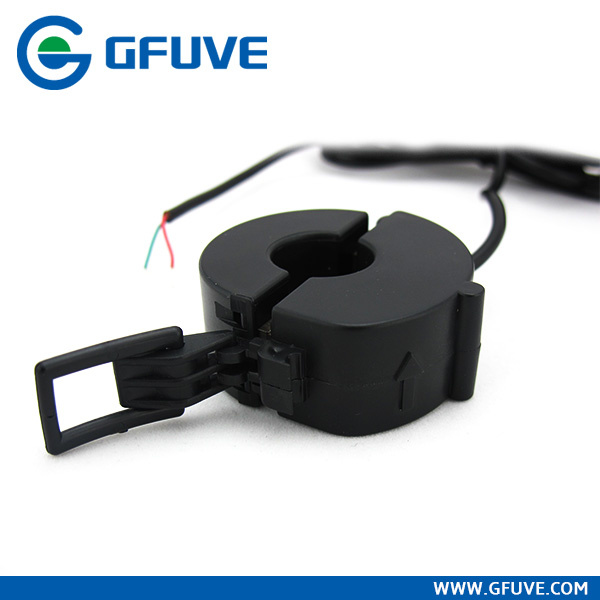

FU16 ECONOMIC ENERGY METER SPLIT CORE CURRENT TRANSFORMER

FU-16 series of split-core current transformer offers 333mV, 100mV-2V and 10mA-200mA at secondary from sensed primary current. Without using secondary CT inside of meter, users directly connect FU-16 series to meter for high accuracy metering application. It enables one meter to be adopted for various current rating by only changing primary CT so it makes compact meter design and reduces developing cost. Also, over-voltage protection circuit is included to offer safe, fast and cost effective installation.
FEATURES
Most cost-effective
Faster installation
Safe and easy installations
High accuracy 0.5
Holding wire diameter: φ16mm
Measurement range of 1mA to 200A AC
Low phase shift for power measurement
Output model: Lead output(2.5m)
Isolated plastic case recognized according to UL94-V0
Small-size, compact size, light-weight
Over-Voltage protection circuit is installed.
CE, UL / EN 61010 - 1 certified
PARAMETERSTechnical parameters Mechanical parameters Operating conditions

Standards	IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio	1000: 1 or 2000:1 , customized
Nominal input current(Primary current)	20A/30A/40A/50A/60A/80A/100A/150A/200A
Overload withstand	1.2 times rated current continuously
Accuracy	0.2%, 0.5 %, 1%
System Voltage	720V(0.72kV)
Output signal	10mA-200mA AC optional 333mV AC or 100mV-2V optional
Frequency range	40 Hz-500 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Output	Standard 2.5 meter cable
Protection Level	3.0V0-P
Installation Category	CATII or CAT III 600VAC
Max. jaw opening	16 mm
Dimensions (W×D×H) (mm)	38mm×55mm×18mm
Weight(g)	60
Operating temperature	-25°C to +55°C
Relative Humidity	0-85% non-condensing
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.
