| Prod Model: |
FU-16 |
| Fu-16: |
Plit Core Current Transformer |
| Ratio: |
1000: 1 or 2000:1 , Customized |
| Overload Withstand: |
1.2 Times Rated Current Continuously |
| Accuracy: |
0.2%, 0.5 %, 1% |
| System Voltage: |
720V(0.72kv) |
| Weight (G): |
60 |
| Operating Temperature: |
-25 to +55°c |
| Relative Humidity: |
0-85% Non-Condensing |
| Altitude: |
<3500 Meters |
| Output: |
Standard 2.5 Meter Cable |
| Application: |
Position Sensor |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

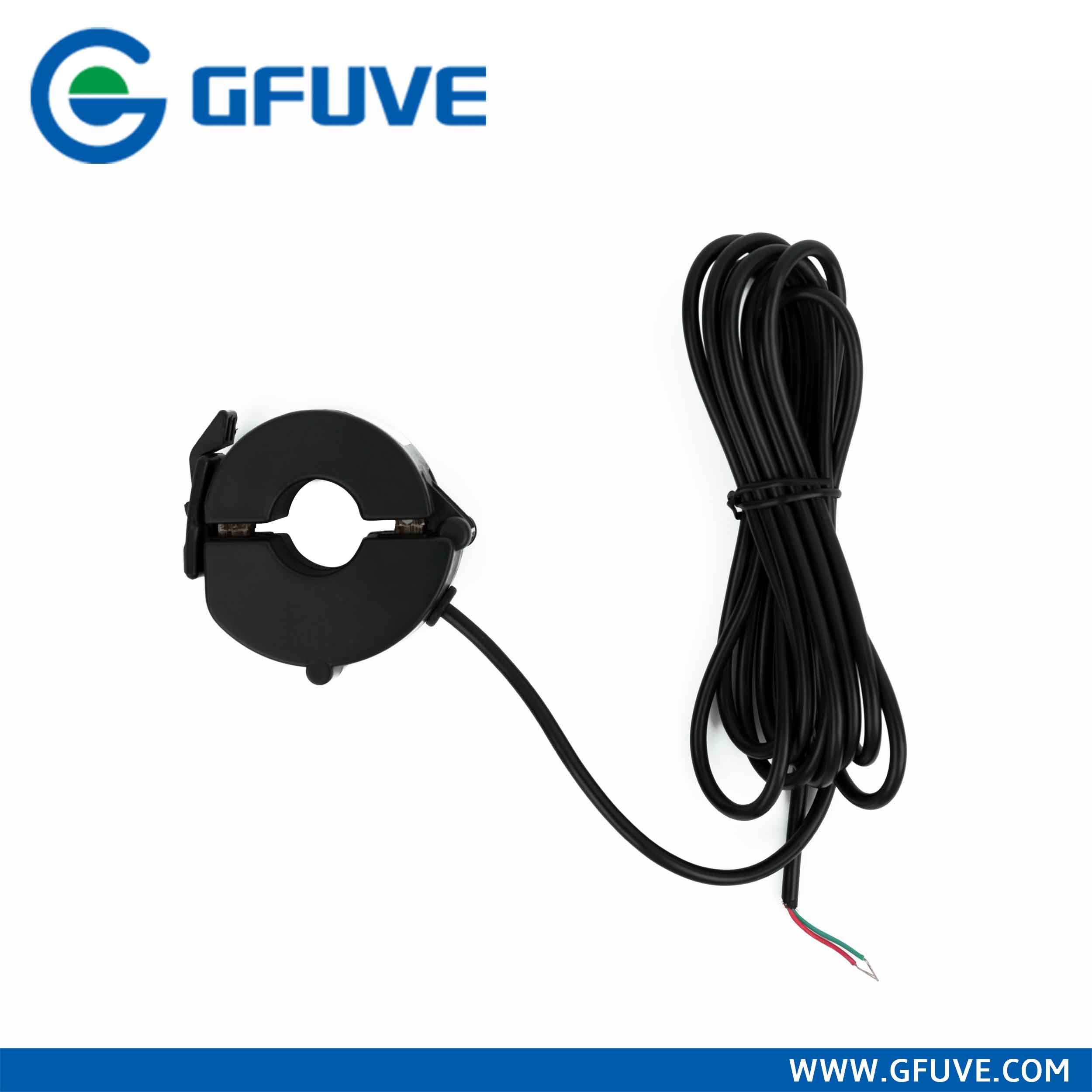

FU16 Economic 333mv mini Split Core Current Transformer for meter
FU-16 series of split-core current transformer offers 333mV, 100mV-2V and 10mA-200mA at secondary from sensed primary current. Without using secondary CT inside of meter, users directly connect FU-16 series to meter for high accuracy metering application. It enables one meter to be adopted for various current rating by only changing primary CT so it makes compact meter design and reduces developing cost. Also, over-voltage protection circuit is included to offer safe, fast and cost effective installation.
Features
Most cost-effective
Faster installation
Safe and easy installations
High accuracy 0.5
Holding wire diameter: φ16mm
Measurement range of 1mA to 200A AC
Low phase shift for power measurement
Output model: Lead output(2.5m)
Isolated plastic case recognized according to UL94-V0
Small-size, compact size, light-weight
Over-Voltage protection circuit is installed.
CE, UL / EN 61010 - 1 certified
Parameters
| Technical parameters |
|---|
| Standards | IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13 |
| Ratio | 1000: 1 or 2000:1 , customized |
| Nominal input current(Primary current) | 20A/30A/40A/50A/60A/80A/100A/150A/200A |
| Overload withstand | 1.2 times rated current continuously |
| Accuracy | 0.2%, 0.5 %, 1% |
| System Voltage | 720V(0.72kV) |
| Output signal | 10mA-200mA AC optional
333mV AC or 100mV-2V optional |
| Frequency range | 40 Hz-500 Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Output | Standard 2.5 meter cable |
| Protection Level | 3.0V0-P |
| Installation Category | CAT or CAT 600VAC |
| Max. jaw opening | 16 mm |
| Mechanical parameters |
|---|
| Dimensions (W×D×H) (mm) | 38mm×55mm×18mm |
| Weight(g) | 60 |
| Operating conditions |
|---|
| Operating temperature | -25°C to +55°C |
| Relative Humidity | 0-85% non-condensing |
| Altitude | <3500 meters |
| Condition | No existence of severely begrimed, erosive and
radioactive gas in the air. Permission of long-term
operation under rated current. |
