| Prod Model: |
FU-120 |
| Accuracy: |
0.2%, 0.5% |
| Primary Current: |
1000A-3000A |
| Secondary Current: |
5A |
| Load Capacity: |
0.1Ω(1A Output), 2.5va(5A Output) |
| Installation: |
Bracket and Bus Bar Installation |
| Output Mode: |
Terminal Output |
| Width Of The Clamping Copper Platoon (mm: |
120X30 |
| Overall Dimensions (mm): |
166X110X49 |
| Color: |
Black or Qrange |
| Characteristic And Application: |
Available for Copper Platoon That Under 3000A Onli |
| Production Process: |
Permalloy |
Product Description
Product description

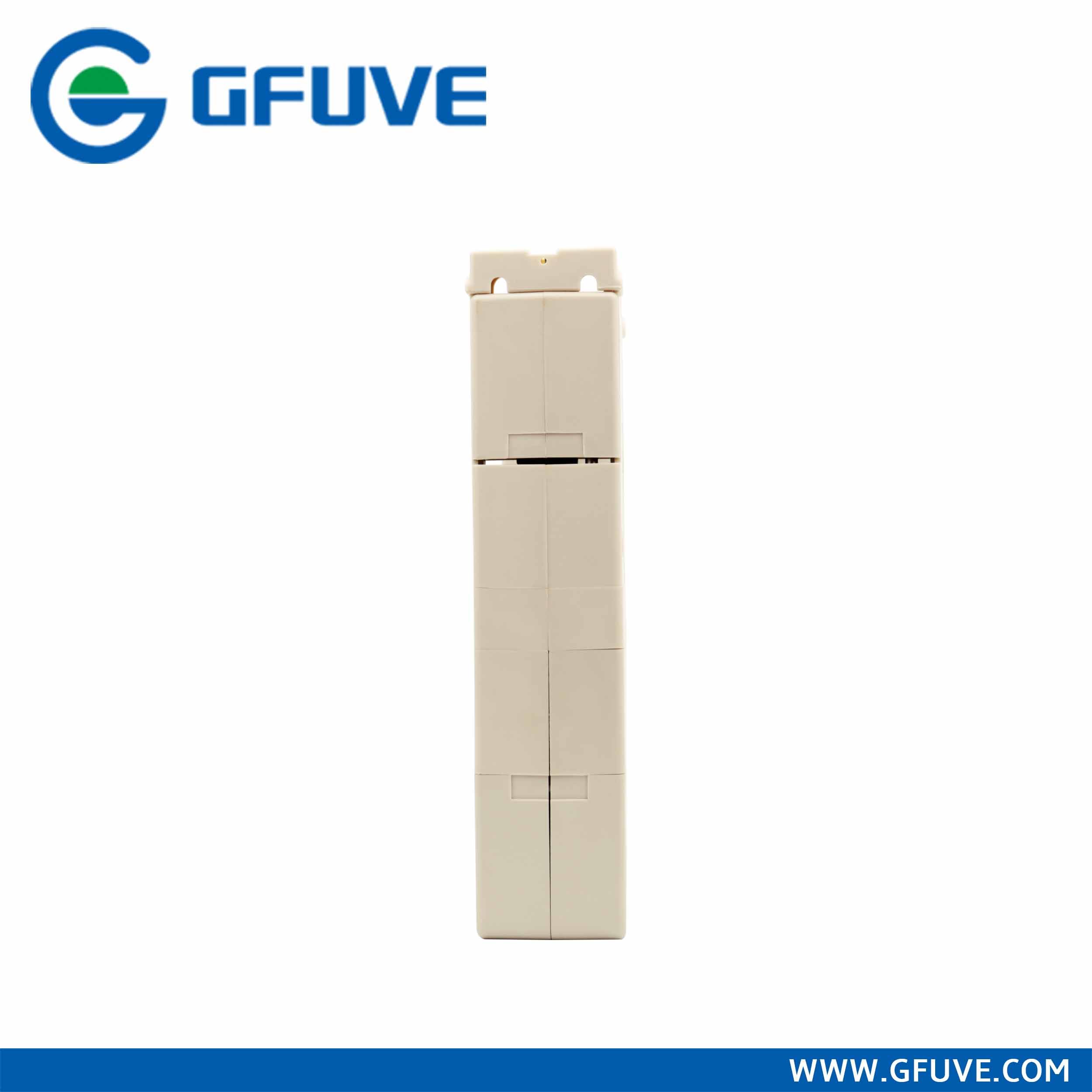

FU120 Busbar Split Core Current Transformer
Split Core Current Transformer also called Split Core Current Transformer or Openable Current Transformer.
It mainly applies for electric system renovation project with easy installation, no need to remove primary busbar, can also operate when power on without affect clients' normal electricity utilization. It can help clients renovate projects and improve efficiency to save human, material and financial resources. This series can apply with relay tester, measuring and metering devices.
Features
1. Easy install or remove with power on
2. Stable and reliable
3. Ratio could be customized
4. Various size to meet different busbar installation
5. Can apply with relay tester, measuring and metering devices
Parameters
| Electrical parameters | |
|---|
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 1000A-3000A |
| Secondary current | 5A |
| Characteristic and application | Available for copper platoon that under 3000A online measurement. |
| Load capacity | 0.1Ω(1A output), 2.5VA(5A output), 5VA |
| Installation | Bracket and Bus bar installation |
| Output mode | Terminal output |
| Mechanical parameters |
|---|
| Width of the clamping copper platoon (mm) | 120×30, 120×130 |
| Overall dimensions (mm) | 166×110×49, 166×208×49 |
