Fu120 Open Circuit Busbar Type Current Transformer

Name: Fu120 Open Circuit Busbar Type Current Transformer
Brand: all-electronics-online.com
SKU: 688874662
Availability: InStock
Rating: 4.7 (40 reviews)

Price:	US $ 98/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Characteristic And Application:	Avaliable for Cable That Under 500A Online Measure
Overall Dimensions:	126mmx110mmx49mm
Output Mode:	Terminal Output
Accuracy:	0.5\0.2/
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

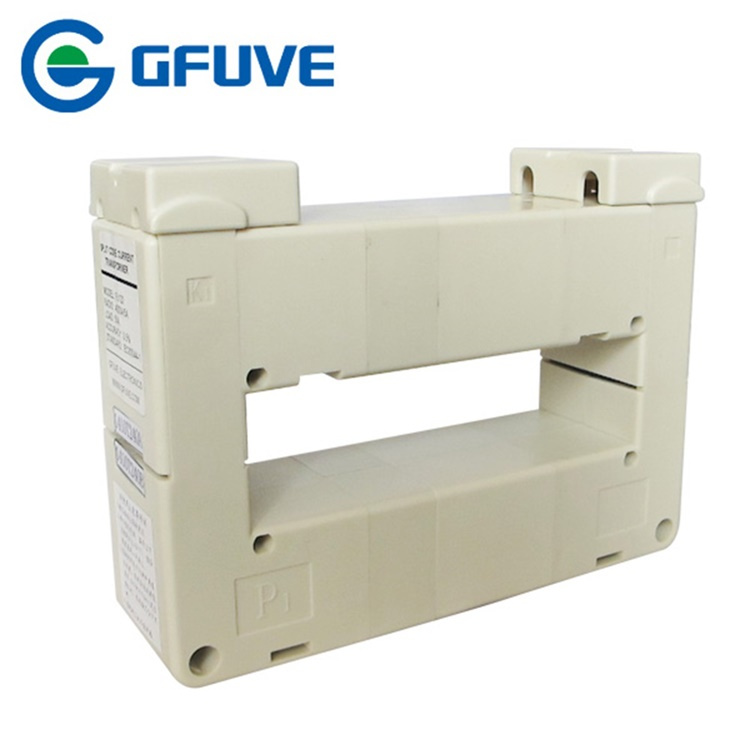

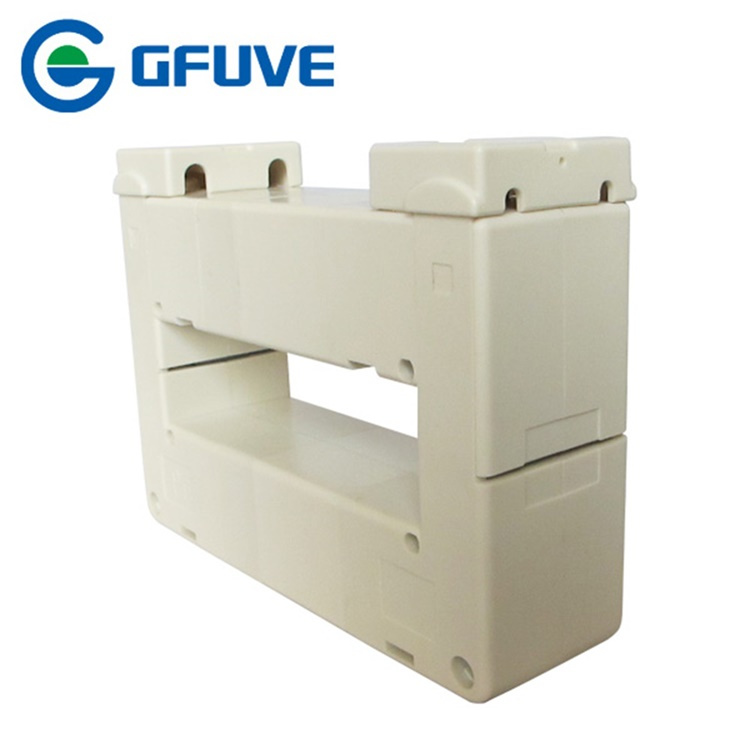

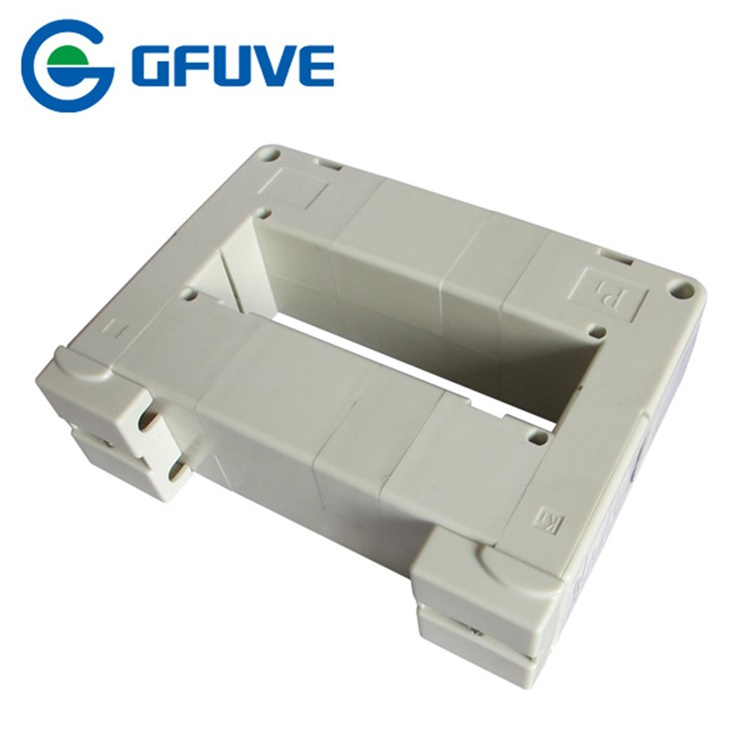

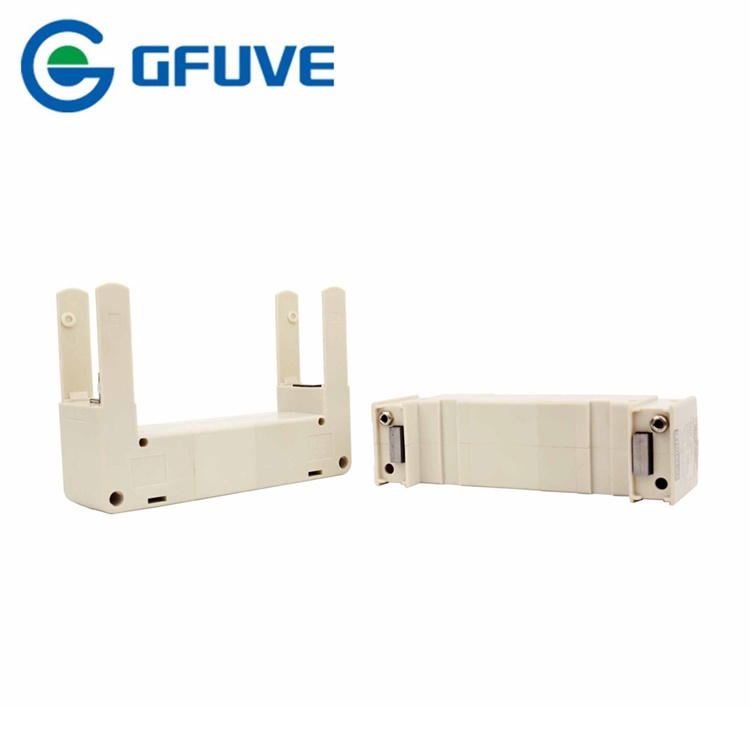

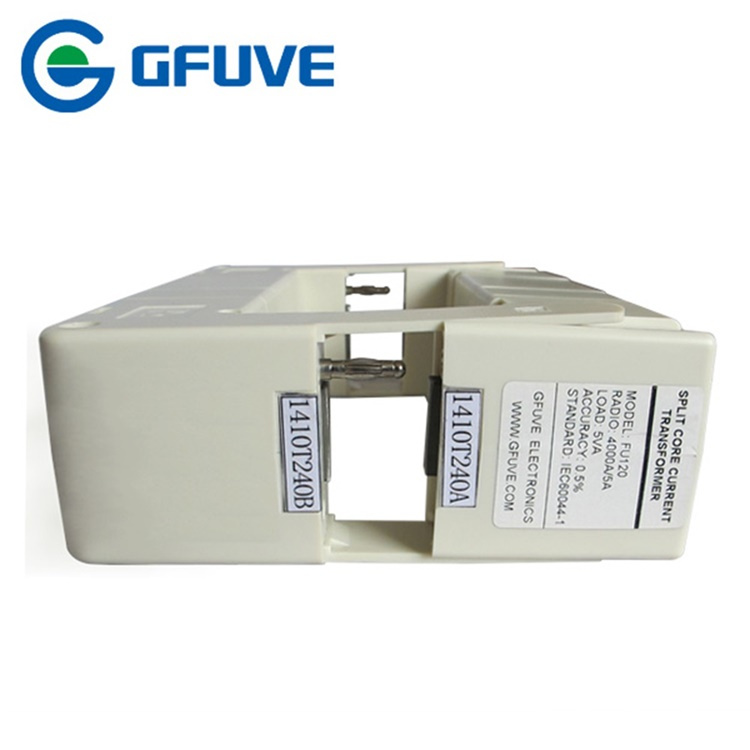

FU120 open circuit busbar type current transformer

Busbar Type Split Core Current Transformer also called Split Core Current Transformer or Openable Current Transformer. It mainly applies for electric system renovation project with easy installation, no need to remove primary busbar, can also operate when power on without affect clients' normal electricity utilization. It can help clients renovate projects and improve efficiency to save human, material and financial resources. This series can apply with relay tester, measuring and metering devices.
FEATURES
Easy install or remove with power on;
Stable and reliable;
Ratio could be customized;
Various size to meet different busbar installation;
Can apply with relay tester, measuring and metering devices.

PARAMETERS

Electrical parameters
Accuracy class	0.2%, 0.5%, 1%
Primary current	1000A-3000A
Secondary current	5A
Characteristic and application	Available for copper platoon that under 3000A online measurement.
Load capacity	0.1Ω(1A output), 2.5VA(5A output), 5VA
Installation	Bracket and Bus bar installation
Output mode	Terminal output
Mechanical parameters
Width of the clamping copper platoon (mm)	120×30, 120×130
Overall dimensions (mm)	166×110×49, 166×208×49

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
