| Prod Model: |
Car GPS tracker TK103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120g |
| Vehicle Tracking System: |
GSM/SMS GPRS |
| Tracking: |
by SMS or GPRS |
| Tracking Way: |
Google Map or Our Web Platform |
| Warranty Time: |
12 Months |
| Car Security: |
Engine Cut Remotely |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| GSM Network Frenquecy: |
850/900/1800/1900MHz |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |
103 |
| Screen Size: |
No Screen |
Product Description

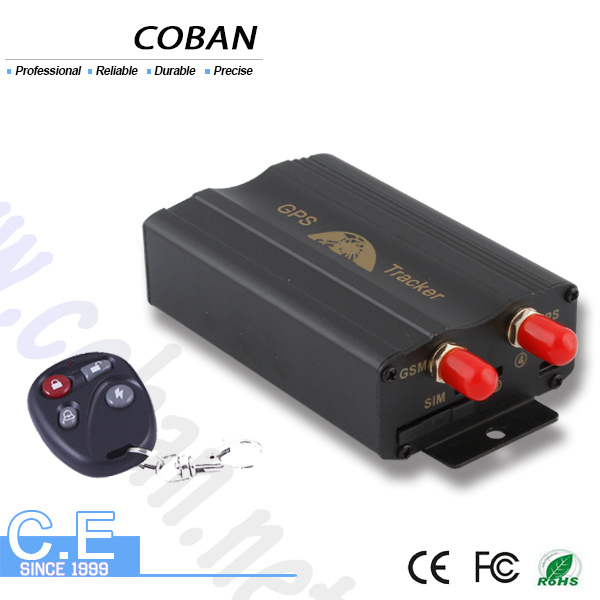

Fuel monitor Car GPS Tracker Tk103 with APP tracking
Top Quality, Factory Price, 3 Days Delivery, 12 months Warranty.
Model: TK103A/B+
GPS TK103A/B+ is the new advanced version of TK103A, TK103B. They have added a lot new functions such as dual SIM, support fuel monitoring, can remotely lock/unlock car door, check SIM card balance, etc.
TK103A/B+ Functions:
1. Dual SIM card. (NEW)
2. SOS button.
3. Geo-fence, movement alarm, overspeed alarm, low battery alarm.
4. Arm: Door open/ACC/Shock Alarm.
5. Stop engine and restart by SMS.
6. Support 2GB TF card to store/upload data.
7. Configure parameters by USB. (NEW)
7. Support dual fuel sensor. (NEW)
8. Lock/unlock car door by remote controller. (NEW)
9. Silent mode (NEW).
10. GPS drift suppression. (NEW)
11. Set up monitor center number. (NEW)
Technology parameter:
*Dimension: 83mm*54mm*26mm, 120g in weight
*Network: GSM/GPRS
*GSM Network frenquecy: 850/900/1800/1900MHz
*GPS chip: SIRF3 chip
*channel: Parallel 20 channels
*sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix: Cold status 45s, Hot status 1s
4 tracking solutions:
- SMS tracking by calling, return google map link
- Absolute street address by SMS
- Free PC based tracking application
- Optional web server WWW. Gpstrackerxy. COM
Tracking platform:
A). Free PC tracking software: We provide free PC tracking software in the CD in the package.
B). Optional Web platform: WWW. Gpstrackerxy. COM. (Demo ID: Demo; Password: 8888. )
For every GPS device, there is a free trial period of 10 days. After that, if you still want to use website, the charges is 10USD/unit/year.
TK103 Standard Package Content:
1 X GPS unit
1 X GPS Antenna
1 X GSM Antenna
1 X MIC
1 X Harness
1 X Relay(12V)
1 X CD
1 X Manual
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
