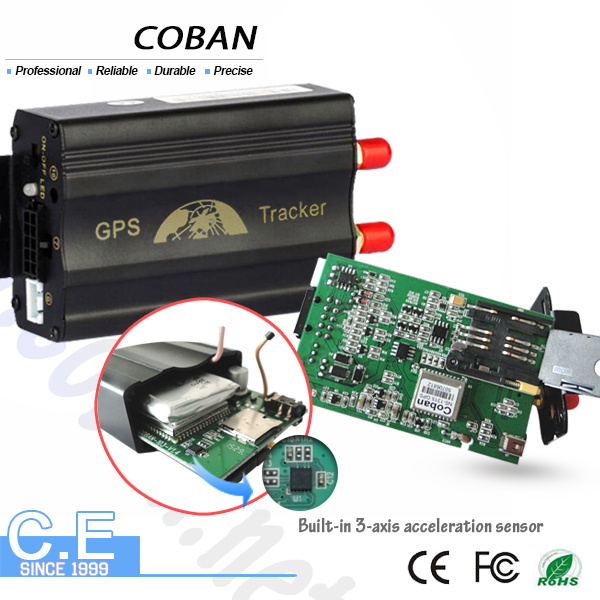

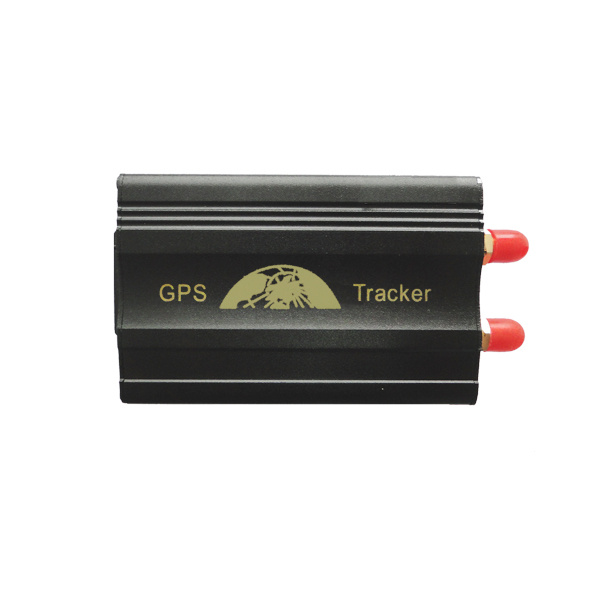

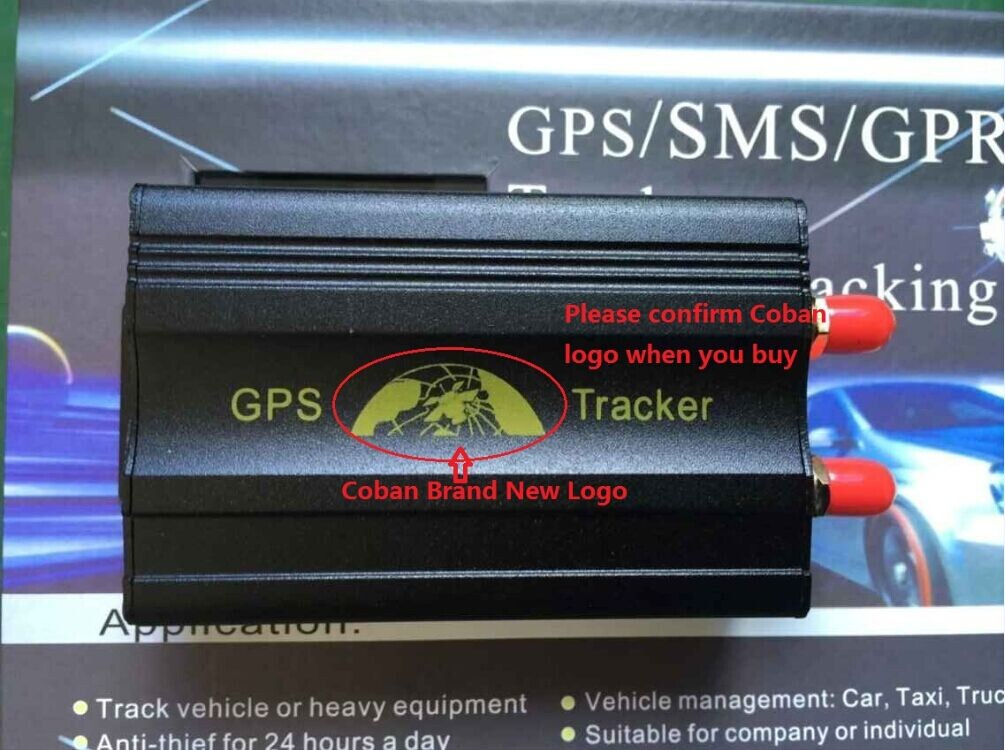

Fuel Monitor Vehicle Tracking System with Engine Shut (TK103)

Fuel Monitor Vehicle Tracking System with Engine Shut (TK103)
Price: US $ 25/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: Vehicle tracking system tk103
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: Auto Vehicle Tracking GPS 103b with USB Configurat
Weight: 120g
Vehicle Tracking System: GSM/SMS GPRS
USB Configuration GPS Tracker: for GPRS Configuration, Auto Tracking
By Mobile Phone Tracking: SMS, Android/iPhone APP Tracking
Warranty Time: 12 Months
Battery: 3.7V 500mAh Li-ion Battery
Vehicle Immobilizer Systems: Remotely Cut off Oil and Power
Anti Theft Vehicle GPS Tracker: Acc, Door/Shock Senosr, Geo Fence Alarm
GPRS Real Time Tracking Platform: Www.Gpstrackerxy.COM with Google Map
Type: GPS Tracker
Use: Automotive
Carrier Frequency: Dual-Frequency

Product Description

fuel monitor vehicle tracking system with Engine Shut (TK103)

1.Applications:
Vehicle rental/Fleet management ect

General
Working Based on existing GSM /GPRS network and GPS satellites, this tracker is a small and powerful tracking device that is developed for personal, vehicle and pet etc. Not only transmit the longitude and latitude coordinate to your cell phone by SMS, but also transmitting the longitude and latitude coordinate to the designated server by GPRS and then displaying the location by tracking software.

Special for car (12V-24V)
Support cut power and oil function from long distance
Supporting SMS remote reboot and reset button to restart
Support text geographic information searching
Supporting SMS with Google map track (SMS)
Support tracking (GPRS)
Support time and voice tracking
Support electronic fence, shift, speeding and low electric alarm
Support SOS emergency/alarm function
Free computer installed version tracking software

2.Basic functions:
1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or SMS comamnd
4, Show location directly on mobile phone with HTTP Google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS
15, Door, windows alarm get by SMS
16, Movement alert sensor
17, optional Android Ios apps
18. with direction and heading value
19. Optional shock/impact sensor
20. Abosolute street function

3 tracking solutions:
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking
-Web server online tracking. Capable of monitor 10,000 objects

4.specifications
Contentspecifications
DIM.83*54*26mm
Weight120g
NetworkGSM/GPRS
Band850/900/1800/1900Mhz
GSM/GPRS  ModuleSIM900B
GPS  ModuleSIRF3  chip
GPS  Sensitivity-159dBm
GPS  Accuracy5m
GPS  Start  timeCold  status    45s
Warm  status    35s
  Hot  status    1s
Voltage  of  car  power  system12  V  -24V

Backup  batteryChargeable  changeable  3.7V  800mAh  Li-ion  battery
Storage  Temp.-40° C  to  +85° C
Operation  Temp.-20° C  to  +65° C
Humidity5%--95%  non-condensing

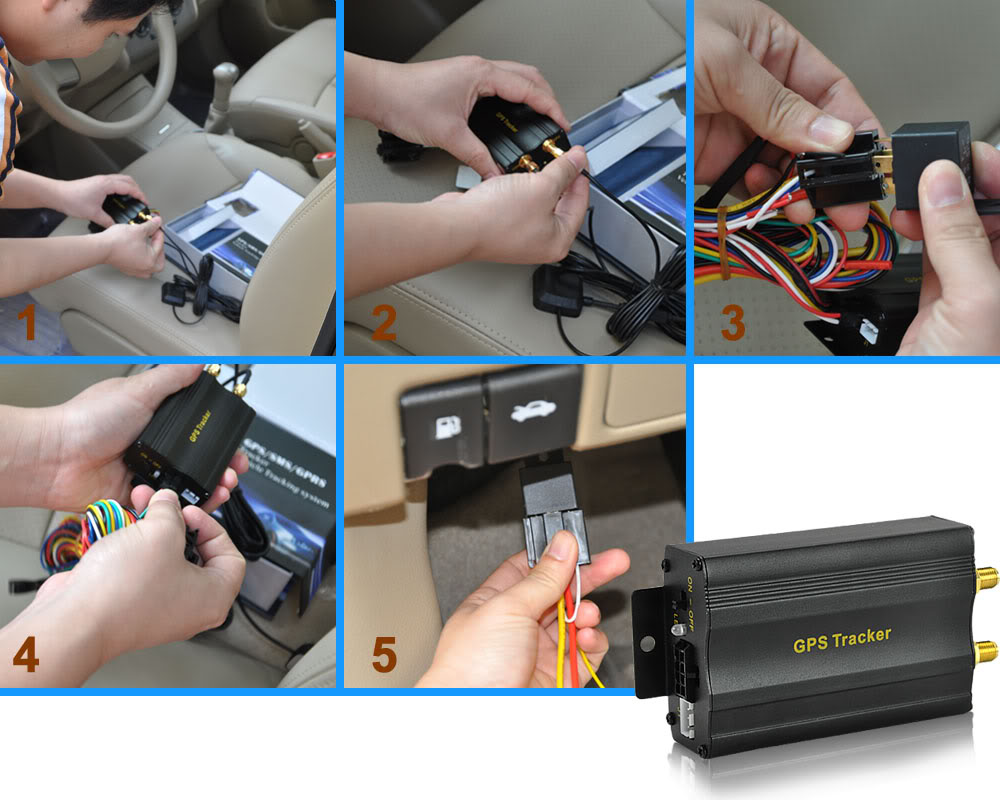

GPS Tracker 103 installation


Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.

As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.

Our company specialized in GPS tracker, car anti-theft alarm system.

Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
