Fuel Monitoring System with Capacitance Fuel Leve Sensor
| Price: |
US $ 99/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Money Gram,Western Union |
| Prod Model: |
JT606 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
Customized |
| Material: |
Aluminum |
| Accuracy: |
0.5% |
| Sealing: |
IP67 |
| Medium Types: |
Not Suitable for Conducting Medium |
| Use: |
Automotive |
| Type: |
Fuel Monitoriing |
| Screen Size: |
Customized |
Product Description

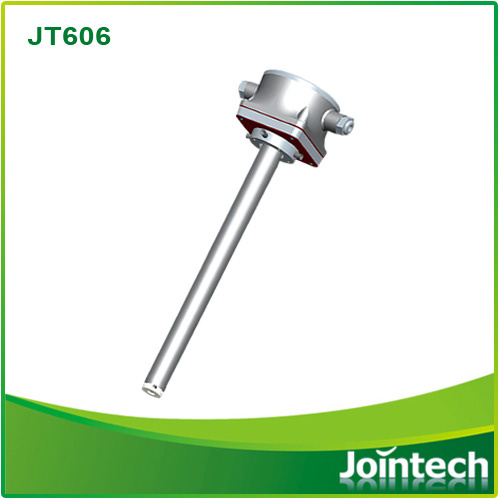

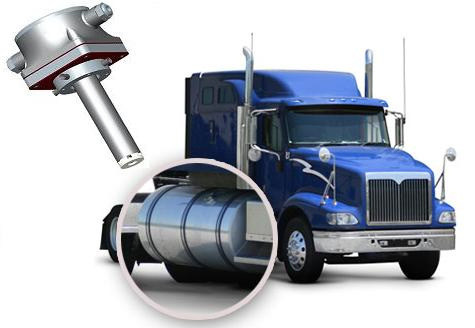

JT606 Capacitive fuel sensor Introduction:Combined with the latest sensor technology in the world, JT606 capacitive fuel level sensor was independent developed by JOINTECH and enjoyed a number of innovative patented technologies.The liquid level can be detected continuously by JT606, with resolution less than 1mm; The length of JT606 is adjustable to fit different fuel tanks;The original car fuel level sensor can also be replaced by JT606 to connect the original car fuel meter.JT606 has been widely used for fuel consumption monitoring and management in logistics fleet, generator, bus, coach, construction machine, etc.
Features:1. Resolution: less than 1mm / acquisition accuracy: less than 0.5%2. Can be cut off in the field as per the tank' height3. Wide power input: 4-70V4. Patented technology: Simple installation flange5. Signal output: (RS485,RS232, voltage, Resistance, Current)6. Support on-site calibration and remote parameter configuration7. Can be used to replace the original car fuel level sensor
|
Index |
Parameter |
|
Acquisition principle |
Capacitive |
|
Power input |
4-70V |
|
Power Consumption |
0.13W/5V,0.19W/12V,0.38W/24V |
|
Accuracy |
Resolution: <1mm, Accuracy: <0.5% |
|
Communication Interface |
RS-232, EIA-485, CAN (can be customized) |
|
Baud rate |
2400,4800,9600,57600,115200 (or customized by users) |
|
Analog Output |
Voltage : 0-5V, Current: 4-20mA, Resistance: 10-500Ω |
|
Measuring range |
10CM-150CM |
|
Protection grade |
IP67 |
|
Housing Material |
Aluminum alloy |
|
Operating Temperature |
-40°C ~~+85°C |
|
Storage Temperature |
-40°C ~~+105°C |
|
Weight |
400g (50mm) |
|
Size |
550mm, 750mm, 1000mm, can be customized. |
Skilled professionals dedicated to flexible customised solutions
For more than 10 years, the JOINT Industrial development team has been creating and implementing highly effective and innovative solutions to meet the varied needs of their customers. They have a proven reputation as the experts in cost-effectively deploying solutions for any equipment monitoring and management requirement
The JOINT industrial development team is also very experienced in streamlining ongoing operations to improve the performance of your monitoring and management solution in order to give you the greatest continuing return on your investment. The JOINT development team are proud of this reputation which not only boasts absolute flexibility, but also highlights their ability to come up with the perfect solution for all their customers irrespective of how unique or obscure the customer need.
When you choose a JOINT solution, their developers will work closely with you to design a solution to suit both your needs and your budget. They will investigate alternatives, clarify your requirements, project manage your order, train your staff and commission your system, all with the backup of an interactive database that keeps you informed and properly supported.
At your discretion, JOINT can fully train your staff and hand-over your system to enable ongoing in-house operations and management. This includes allowing full administrative rights over the software and the ability to modify the configuration / setup of any component of your system to best suit your company needs.
Their engineering team will continue to work with you to analyse your implementation, look for ways to improve the operations and useability of their implemented systems, and utilise their experience to help you find ways of more effectively integrating your new solution.
JOINT have a large global network of distributors and OEM product partners who have deployed to many companies across most industries. Contact JOINT today to discuss your needs and how they may be able to help. Who knows, they may have already deployed a solution to match your specific requirement.
