Fuel Tank Level Sensor (CX-RLM-070)

Prod Model:	CX-RLM-070
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Mud,Liquid
Range:	0ptional
Process Connection:	Screw, Flange
Process Temperature:	-40-250c
Precision:	+-1mm
Process Pressure:	-1.0-40bar
Frequency Range:	100MHz-1.8GHz
Anti-Explosion/Safety:	Exiaiict6/IP68
Signal Output:	4^20mA/Hart(Two Phases)
Type:	Guide Wave

Product Description

fuel tank level sensor

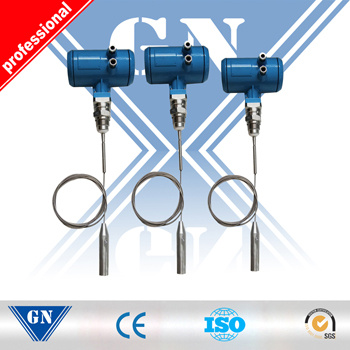

CX-RLM-070 series of guided wave radar material level gauge
Products:

types	CX-RLM-071	CX-RLM-072	CX-RLM-073
Application	Liquid, solid granules	Liquid, solid granules	Liquid
Measuring range	30 meters	6 meters	6 meters
Process connection	Screw, flange	Screw, flange	Screw, flange
Process temperature	-40-250ºC	-40-250ºC	-40-250ºC
Process pressure	-1.0-40bar	-1.0-40bar	-1.0-40bar
Precision	±1mm	±1mm	±1mm
Frequency range	100MHZ-1.8GHZ	100MHZ-1.8GHZ	100MHZ-1.8GHZ
Anti-explosion/safety grade	EXiaIICT6/IP68	EXiaIICT6/IP68	EXiaIICT6/IP68
Signal output	4…20mA/HART(two phases)	4…20mA/HART(two phases)	4…20mA/HART(two phases)

Technical parameters :
Parameter:      Working frequency: 100MHZ-1.8GHZ
Measuring range: cable type:0-30m;Rod, co-axial type: 0-6m
Repeatability: ±3mm
Resolution: 1mm
Sampling: wave echo sampling 55 times/s
Response speed:>0.2S(depends on concrete application status)
Output current signal: 4-20mA
Precision:<0.1%
Communication interface:      HART communication protocol
Process connection:        G1-1/2
Flange 2″,3″,4″,6″
Process pressure:          -1-40bar
Environment conditions:     temperature -40ºC~+80ºC
Shell safety grade:         IP68
Anti-explosion grade:     EXiaIICT6


Measuring distance :

The following table lists the relations between different types of measured mediums and measuring distance

Mediums grouping	DK(ε)	Solid granules	Liquids	Measuring range
1	1.4…1.6		-condensation gas, such as N2CO2	3m(only refers to coaxial rod type probe)
2	1.6…1.9	—plastic with granules -lime stone, special cement -sugar	-liquefied gas, such as propane -solvent -Fern 12/freon -palm oil	25m
3	1.9…2.5	-Ordinary cement, plaster	-Mineral oil, fuels	30m
4	2.5…4	-corn, seeds -Stone -Sand	-benzene, styrene, toluene -furan -naphthalene	30m
5	4…7	-Wet stones, minerals -salt	—chlorobenzene, chloroform , -cellulose spray —Isocyanuric hydrochloride, amine	30m
6	>7	-Metal powder -Carbon black -Coal and charcoal	-water containing liquid -alcohol -liquid ammonia	30m
