| Prod Model: |
HT33 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Full DSP Control 380VAC Ture Online U: |
Double DSP Control Power Convertion Devices |
| High Frequency UPS: |
PWM Tech Inverter, IGBT Rectifier |
| Parallel Redundant UPS: |
Inner Power Modules |
| N+X Configuration: |
6 Units Parallel Redundant Expandable |
| Power Module Control: |
Full Digital Control Through Double DSP |
| Parallel Control: |
Digital Current Control |
| Power Convertion Kits: |
Integrated IGBT Module |
| PCB: |
SMT and Conformal Coating |
| Abm: |
Battery Charge Discharge Float Charge Control |
| Bypass Protection: |
Bypass Back-Feed and Leakage |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Invt |
Product Description

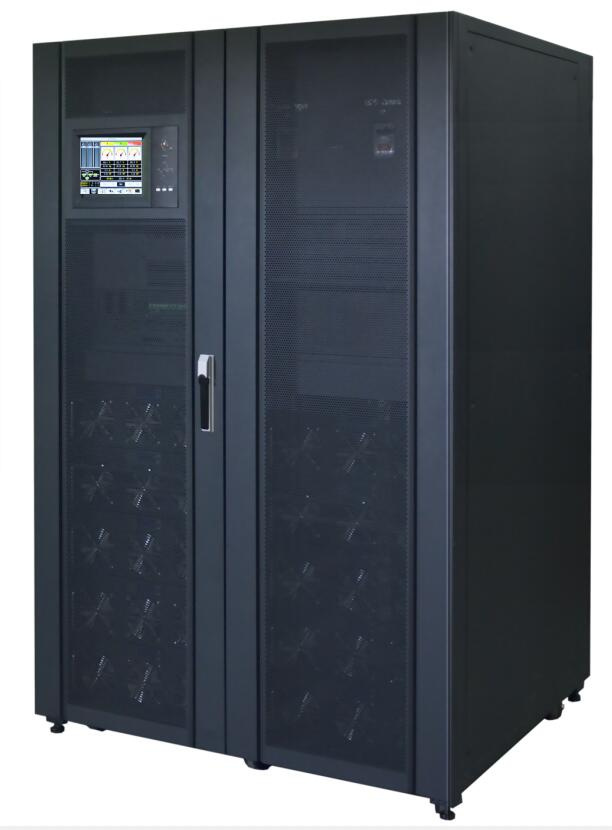

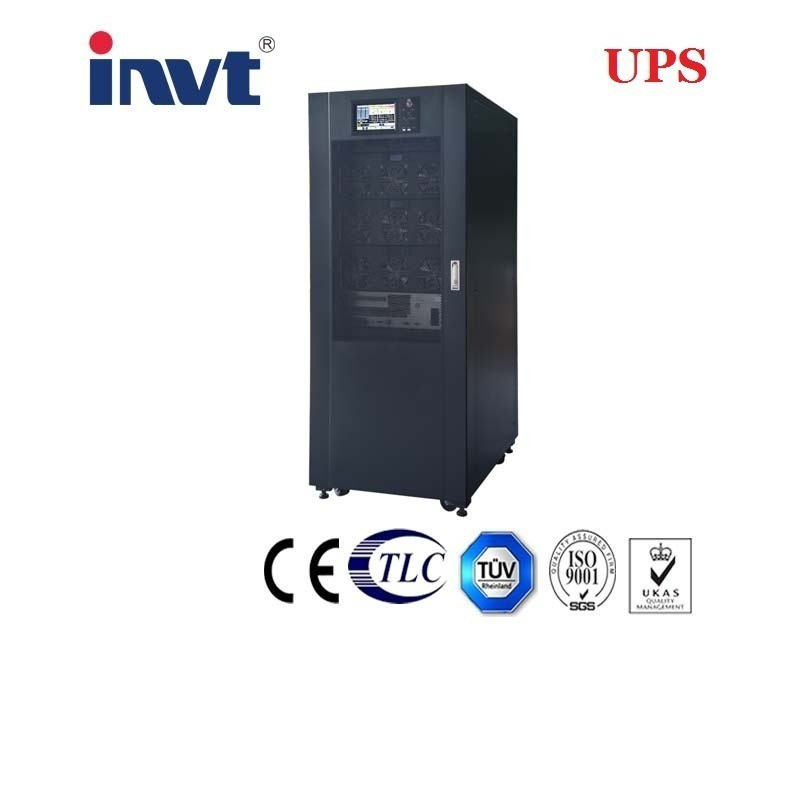

Full Digital control 380vac Ture Online UpsTure online Ups feature:
1.380v ture online in full digital control
Double Ti dsp control rectifier/battery charger, inverter/discharger.
2. High frequency PWM tech inverter, IGBT rectifier technology
3 full digital control on single power module through double dsp,
4. Double dsp control rectifier/battery charger, inverter/discharger.
5. Integrated IGBT module for rectifier, inverter.
6. Independent, power battery charger for each single power module.
7. Large lcd human-machine operation interface.
8.40-70Hz wide ac input frequency increase adaptibility to generator,
Frequency convertion operation mode, bypass input unavailable, user can set to battery mode in accordance battery capacity.
| 380v ture online ups | HT33010S | HT33015S | HT33020S | HT33030S | HT33010 | HT33015 | HT33020 | HT33030 | HT33040 | HT33060 | HT33080 | HT33100 | HT33120 | HT33160 | HT33200 |
| Capacity | 10KVA | 15KVA | 20KVA | 30KVA | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | 200KVA |
| Main Input |
| Input voltage | 380V/400V/415V(line to line), 50/60Hz |
| Input connection | 3Ph+N+PE |
| Power factor | >0.99 |
| Input voltage window | +25%~-20%, full load |
| -20%~-40%, power derating between 100% to 70% |
| Frequency window | 40-70HZ |
| Bypass input |
| Bypass voltage | 380V/400V/415V |
| Bypass voltage window | +15%--20%, full load |
| Frequency window | ±5Hz |
| Battery |
| Battery voltage | ±240VDC |
| Charger power | 20%*Power |
| Charger voltage precision | 1% |
| Output |
| Voltage precision | 1% (balance load),1.5% (unbalance load) |
| Output voltage transient | 5%(0~100% load step) |
| Voltage THD(Total Harmonic Distortion) | THD<1%(linear load),THD<5%(nonlinear load) |
| Power factor | 0.8 |
| Frequency tracking range | 50/60Hz±3Hz, adjustable |
| Frequency precision (free running) | ±0.02% |
| Phase tolerance | 120°±0.5° (balance and unalance load) |
| Voltage unbalance degree (100% unbalance load) | ±1% |
| Frequency tracking speed | 0.5Hz/s to 5Hz/s, adjustable |
| Crest factor | 3:1 |
| Overload capabiltiy | 102% long time operation |
| 110%, transfer to bypass after 1hour |
| 125%, transfer to bypass after 10 minutes |
| 150%, transfer to bypass after 1 minute |
| >150%, transfer to bypass after 200ms |
| Bypass overload capability | 125%, long time operation |
| 125%< load <130%, last for more than 1 hour |
| 130% |
| >1000%, last for more than 100ms |
| System |
| System efficiency | Normal mode: 95% |
| ECO mode: 99% |
| Battery mode efficiency | 95% |
| Battery configuration | 12V, 40PCS (36~44pcs acceptable) |
| Display | LCD+LED, keyboard | | | | | LCD+LED, Touch screen and keyboard |
| EMI | IEC62040-2 |
| EMS | IEC61000-4-2(ESD) |
| IEC61000-4-3(RS) |
| IEC61000-4-4 (EFT) |
| IEC61000-4-5 (Surge) |
| Insulation resistance | >2M (500VDC) |
| Dielectric strengh | (input,output to PE)2820Vdc, leakage current lower than 3.5mA, no flashover in 1 minute |
| Surge protection | Comply with IEC60664-1 class IV, endure surge of 1.2/50us + 8/20us higher than 6KV/3KA |
| IP class | IP20 |
| Interface (Communication Ports ) | RS232,RS485,Dry contacts,SNMP card,EPO,Generator interface |
| Installation/Connection | Top or bottom cable connection |
| Operation temperature | 0-40 degree |
| Relative humidity | 0-90% (non-comdensing) |
| Noise(dB) | <55dB |
| Net Weight(KG) | 97 | 97.5 | 97.5 | 99.5 | 44 | 46 | 46 | 58 | | 186 | 208 | 256 | 278 | 358 | 380 |
| Pakage Weight(KG) | 109 | 109.5 | 109.5 | 110.5 | 48 | 50.5 | 50.5 | 65 | | 204 | 226 | 274 | 292 | / | / |
| Dimension(W*D*H)(mm) | 540*690*1100
(Internal battery) | 280*730*668 | 320*781*788 | 540*762*1100 | 600*855*1350 | 600*855*1600 | 600*855*2000 |
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
