Full Range AC/DC T-60d Triple Output Power Supply

Name: Full Range AC/DC T-60d Triple Output Power Supply
Brand: all-electronics-online.com
SKU: 690889421
Availability: InStock
Rating: 4.4 (68 reviews)

Price:	US $ 7.99-11.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-60
IP Code:	IP20
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Output Type:	Triple
Warranty:	2 Years
Output Power:	51 - 100W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

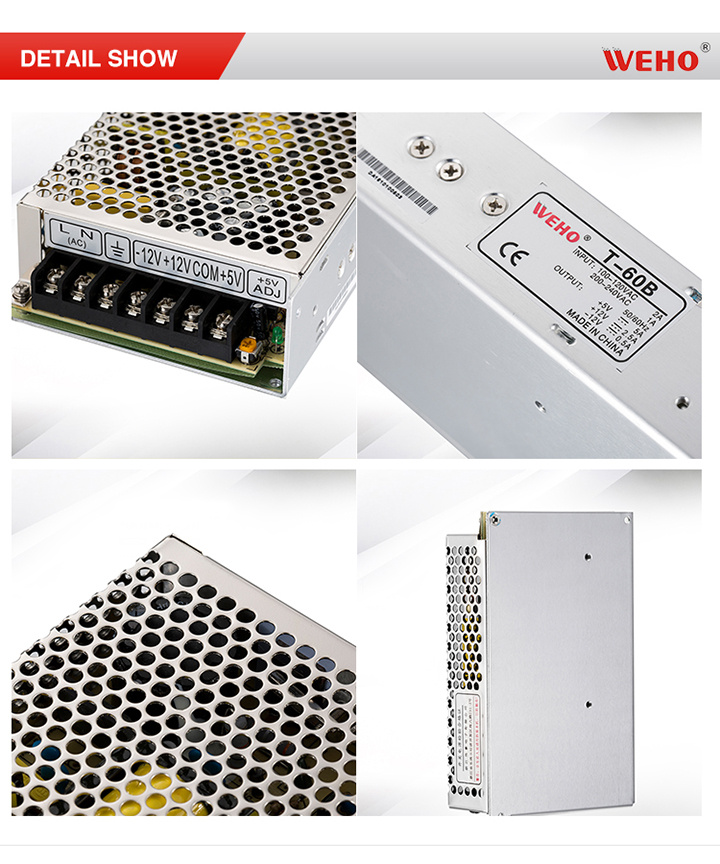

Full range ac/dc T-60D triple output power supply

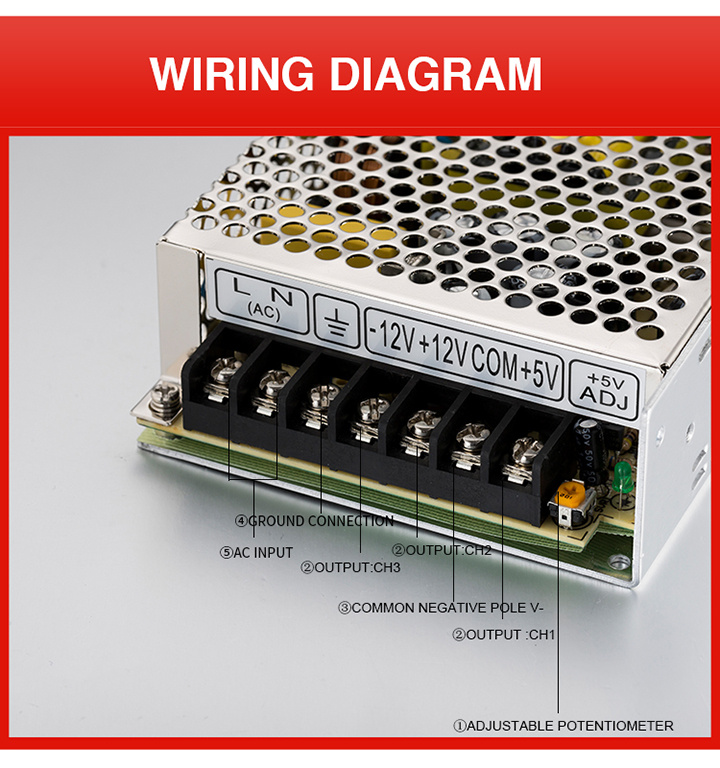

Model	T-60A			T-60B			T-60C
Model	CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
DC output voltage	5V	12V	-5V	5V	12V	-12V	5V	15V	-15V
Output voltage range(Note:2)	±2%	±6%	±8%	±2%	±6%	±8%	±2%	±6%	±8%
Rated output current	5A	2.5A	0.5A	5A	2.5A	0.5A	5A	2A	0.5A
Output current range	0.5-7A	0.2-3.5A	0-0.1A	0.5-7A	0.2-3.5A	0-1A	0.5-7A	0.2-3A	0-0.1A
Wave and noise(Note:3)	100mVp-p	120mVp-p	100mVp-p	100mVp-p	120mVp-p	120mVp-p	100mVp-p	120mVp-p	120mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±1%	±0.5%	±1%	±1%	±0.5%	±1%	±1%
Load stability(Note:5)	±0.5%	±4%	±6%	±0.5%	±4%	±6%	±0.5%	±4%	±4%
DC output power	57.5W			61W			62.5W
Efficiency	72%			72%			72%
Adjustable range for DC voltage	CH1; +10, -5%			CH1; +10, -5%			CH1; +10, -5%
Input current	2A/115V 1A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	CH1: 5.75~6.75V
Temperature coefficient	±0.03%/°c(0~50°c)ON+5V
Setup, rise , hold up time	1.6ms, 50ms, 16ms/115VAC 800ms, 50ms, 60ms/230VAC
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	159×97×38mm
Weight	0.56Kgs
Safety standards	CSA international mark approved (CSA950, UL 1950, IEC950, EN60950)
EMC standards	CISPR22(EN55022), IEC801-2,-3,-4,IEC555-2 Verification

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
