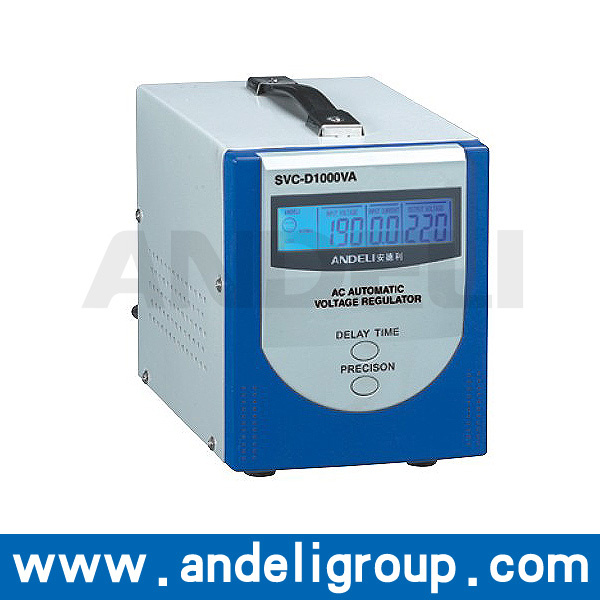

Fully Automatic AC Voltage Regulator (SVC-D)

Name: Fully Automatic AC Voltage Regulator (SVC-D)
Brand: all-electronics-online.com
SKU: 650223405
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	1. AC 150V~250V 2. AC 70V~130V
Output Voltage:	AC 1.220V 2.110V
Specification:	0.5kVA, 1kVA, 1.5kVA, 2kVA, 3kVA, 5kVA
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	High Frequency

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, RoHS, CE, CB, SIMKO, KEMA...

Application

SVC-D Series AC automatic voltage regulator is the latest product studied and produced by ourselves. These products adopt 8 digits CPU control produced by the well-known Motorola company, which can stabilize the precision and set up the delay time. The products also have many protection functions on delay, over-voltage invert-delay, lack voltage, over load invert-delay, lack voltage, over load, over temperature, machine malfunction and so on. They have digital display, blue-screen lightproof, dynamic panel display and it can show the working status of the machine. When the machine works abnormally, on the panel there is corresponding due and short or long warning.

Specification	0.5KVA,1KVA,1.5KVA,2KVA,3KVA,5KVA
Input Voltage	(1)AC 150V~250V (2)AC 70V~130V
Output Voltage	AC (1)220V (2)110V
Stabilization Precision	When 220V,±3% When 110V,±3%
Frequency	50Hz,60Hz
Delay Time	Long:180s;Short:5s
Over-voltage Protection Value	(1)250V/5s delay; (2)275V/2s delay; (3)295V/1s delay; (4)305V/0s
Lack-voltage Protection Value	180V/5s delay
Over-load Protection Value	2.8times than rated capacity
Over-temperature Protection Value	90 o C
Load Capacity Factor	cos 0.9
Regulating Time	When input varies 10%,less than 1s
Waveform Distrotion	No additional waveform distortion
Reactance Strength	1500V/1min
Insulation Resistance	>5MΩ
Insulation Grade	E grade
Environment	Temperature:-10 o C~+40 o C Humidity:<90%

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
