Funelec 0-10V Analog Output Proximity Sensor Switch Le40xzsn15lum-D

Funelec 0-10V Analog Output Proximity Sensor Switch Le40xzsn15lum-D
Price: US $ 1-8/Piece
Min Order: 200/Piece
Pay Type: L/C,T/T
Prod Model: LE40XZSN15LUM-D
Material: Plastic
Rotection Degree: IP 67
Mounting: Flushed/ Non-Flushed
Standard: Standard
Certification: CE
Type: Inductive Proximity Switch
Principle: Inductive
Wires: NPN/PNP
Application: Position Sensor, Speed Sensor

Product Description

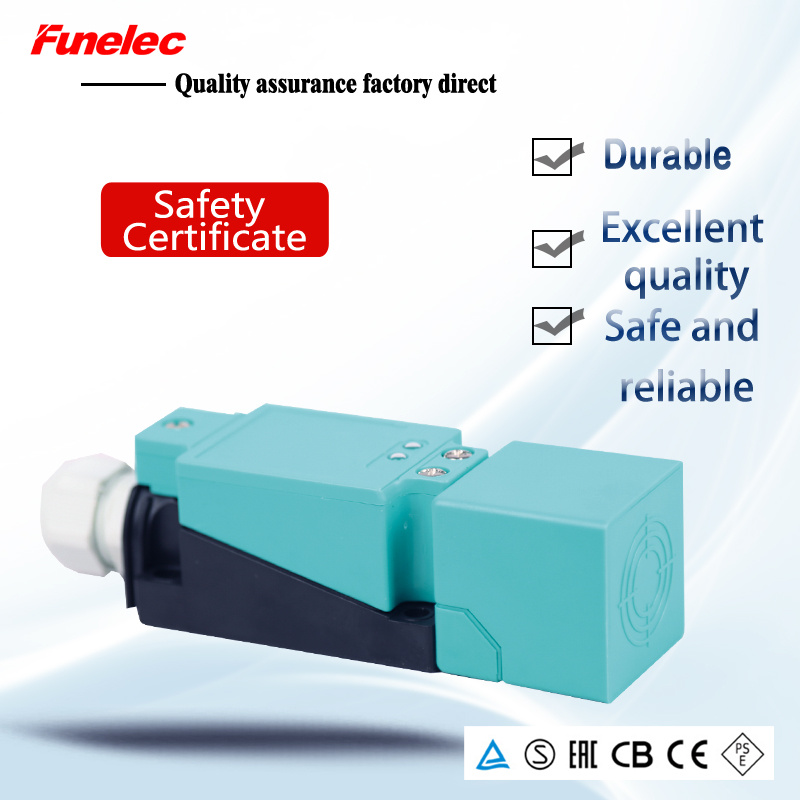

Plastic square shape inductive sensors LE40XZ series
Features
Providing equivalent signal output along with target position;
0-10V, 0-20mA, 4-20mA analog output;
Perfect choice for displacement and thickness measurement;
Part number
0-10V               LE40XZSF10LUM-D       LE40XZSN15LUM-D4-20mA                    LE40XZSF10LI4M-D         LE40XZSN15LI4M-D
0-20mA           LE40XZSF10LIM-D         LE40XZSN15LIM-D0-10V + 0-20mA     LE40XZSF10LIUM-D        LE40XZSN15LIUM-D
Technical specifications
Mounting                                   Flush                   Non-flushLeakage current [lr]                  ≤20mA
Rated distance [Sn]                10mm                 15mmCircuit protection                      Reverse polarity protection
Sensing distance                   2…10mm           3…15mmOutput indicator                        Yellow LED
Dimensions                            40 mm *40 mm *140 mmAmbient temperature             -25ºC…70ºC
Output                                       Current, voltage or current+voltageAmbient humidity                   35-95%RH
Supply voltage                        15…30 VDCSwitching frequency [F]         100 Hz            50 Hz
Standard target                       Fe 40*40*1t       Fe 45*45*1tVoltage withstand                  1000V/AC 50/60Hz 60s
Switch-point drifts [%/Sr]       ≤±10%Insulation resistance             ≥50MΩ(500VDC)
Linearity                                    ≤±5%Vibration resistance              10…50Hz (1.5mm)
Repeat accuracy [R]               ≤±3%Degree of protection              IP67
Load current                             Voltage output: ≥4.7KΩHousing material                    PBT
                                                    Current output: ≤470ΩConnection type                      Terminal


Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively



FAQ
Q: If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.

Q:Your product seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our product are high quality customized.I think compare the quality first and then compare the price is the best way.

Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!

Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.


Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!
WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
