Funelec Contactor Hot Product 690V AC Contactor

Prod Model:	FNG01 Series

Product Description

MOTOR PROTECTIVE SWITCHES
AC Contactor
FNG01 series AC Contactor is suitable for using in the circuits up to the rated voltage
660V AC 50Hz or 60Hz,
For making,breaking,frequently starting & controlling the AC motor
Combined with the auxiliary contact block,timer delay & machine-interlocking device etc
It becomes the delay contactor,mechanical interlocking contactor,star-delta starter
With the thermal relay,it is combined into the electromagnetic starter
The product conforms to IEC60947-4-1 standard

AC Contactor FNG01

Rated Current In(A)	Type Designation	Article No.	QNT/CTN(pcs)	G/N.W/CTN(kg)	MEAS(cm)
09 12 18 25 32 40 50 65 80 95	FNG01-09 FNG01-12 FNG01-18 FNG01-25 FNG01-32 FNG01-40 FNG01-50 FNG01-65 FNG01-80 FNG01-95	G0101 G0102 G0103 G0104 G0105 G0106 G0107 G0108 G0109 G0110	50 50 50 50 50 20 20 20 16 16	17.5/16.5 17.5/16.5 18.517.5 27/26 28/27 26/25 26/25 26/25 26/25 26/25	40x26x19 40x26x19 40x26x19 44x30x22 44x30x22 45x27.5x26 45x27.5x26 45x27.5x26 40x27x28 40x27x28

Technical Data

FNG01 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz,
for making,breaking,frequently starting & controlling the AC motor
Combined with the auxiliary contact block,timer delay & machine-interlocking device etc
It becomes the delay contactor,mechanical interlocking contactor,star-delta starter
With the thermal relay,it is combined into the electromagnetic starter
The product conforms to IEC60947-4-1 standard


Application Notice

·If your temp changing range is 10 ~20 of application place,the resistance value will
change 10% accordingly
·If your voltage changing,there is no infection to resistance of contactor,But considering the current
changing due to volt changing,We suggested you to consider to use contactor in the place which voltage
changing range is 85%~110%.For example ,if you choose 230V contactor,the permitting volt changing is
from 184V~253V
·The standard circumstance temp for our contactor is up to +40
·You must choose the right specification contactor which to be used as per your actual requirement & loading conditions.
·The relative humidity required 90%


Main Material & Characteristic Indication

1. Cover & Base: Nylon 66 with fire resistant,withstand temp rising up to 130ºC~180ºC
2.Inserting part: Bakelite with fire resistant,withstand temp rising up to 200ºC
3.Coil wire: Insulating copper cables with stand temp rising up to 130ºC.and detailed rolling & Dia as per
different volt,please refer to following list
4.Contacts: silver points.with copper material levels


Type		FNG01-09	FNG01-12	FNG01-18	FNG01-25	FNG01-32	FNG01-40	FNG01-50	FNG01-65	FNG01-80	FNG01-95
Rated  working current(A)	AC3	9	12	18	25	32	40	50	65	80	95
	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratings of 3-phase motors 50/60Hz in category AC-3	200/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3(x104)	100	100	100	100	80	80	60	60	60	60
	AC4(x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts		3P+NO					3P+NC+NO
		3P+NC

Standard Control Circuit Voltage

Volts

24

42

48

110

220

230

240

380

400

415

440

500

660

50Hz

B5

D5

E5

F5

M5

P5

U5

Q5

V5

N5

R5

S5

Y5

60Hz

B6

D6

E6

F6

M6

-

U6

Q6

-

-

R6

-

-

50/60Hz

B7

D7

E7

F7

M7

P7

U7

Q7

V7

N7

R7

-

-



Type	A	B	C	D	E	a	b	Ф
FNG01-09-12	47	76	82	113	133	34/35	50/60	4.5
FNG01-18	47	76	87	118	138	34/35	50/60	4.5
FNG01-25	57	86	95	126	146	40	48	4.5
FNG01-32	57	86	100	131	151	40	48	4.5
FNG01-40-65	77	129	116	145	165	40	100/110	6.5
FNG01-80-95	87	129	127	175	195	40	100/110	6.5

Packaging & Shipping:

1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
3.Shipment port:SHANGHAI/NINGBO
4.By Air or by Sea for batch goods,Airport/ Port receiving;
5.Customers specifying freight forwarders or negotiable shipping methods!


Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively

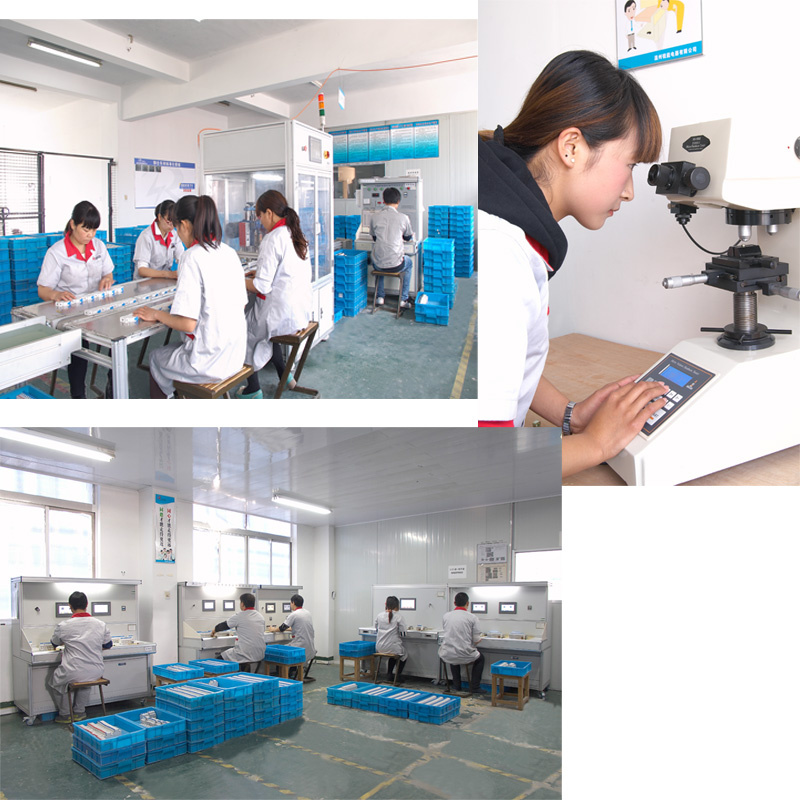

Company Information
