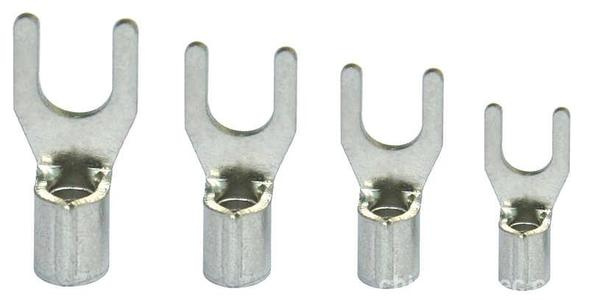

Furcate Naked Terminal, Shaped Terminal, Cable Terminal

Prod Model:	SNB 1.25-8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Cable Lugs and Sleeve
Application:	Conduct Electricity
Type:	Single Hole Terminals
Material:	Copper
Brand:	Jma

Product Description

1) Material: Purple copper
2) Cable size: 0.5-6mm2, thickness 0.75mm, 0.8mm, 1mm
3) Max current: 19A, 27A, 37A, 48A, 62A

Specification

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, railway, shipbuilding, spaceflight & aviation, light industry, household electrical, computers, auto-equipment and etc.
2) Processing: Cold press
3) Material: T2 copper with tinned surface, credible conductivity; PVC insulation cover, no break or rebound.
4) Certificate: ISO9001-2008
5) Manufacturer: Price advantage, quick delivery
Detail:
Specification: According to the customer picture, item NO. Or picture
Certification: ISO9001, CE, SGS
Delivery: The stock goods will be delivered within 3days, and the customized goods will be delivered within 7days
Sample: Free
MOQ: Most product not have MOQ, orders for just one piece are welcome
Terms of trade: EXW, FOB, CIF, CFRect
Payment Terms: T/T in advance, Western Union, L/C etc.
Serivce: ODM/OEM
Other service: CO, Form F

Wenzhou ziyong electrical Co., Ltd is a comprehensive and production processing trading enterprise in Zhejiang Province which is approved by the Forgeign Trade Department in China, and has own import and export power. We are engaged in cable and cable accessories, Like insulation piercing connector, cable connectors and fittings, like insulators and cable lugs and other connectors, explosion-proof products, fuse products, transformers, auto parts to cars, electricity and electronic products, plastics, machinery and decorated products.

Item NO.	USA Bolt No.	Bolt dia d2(mm)	Dimension(mm)						Description
			B	F	L	E	D	d
LSNB1.25-3.5	#6	3.7	6.4	6.5	16.0	4.8	4.3	1.7	Lead Section: 0.5-1.5mm Max Current:Imax=19A Material:Copper Thickness:0.7mm
LSNB1.25-4S	#8	4.3	7.2	6.5	16.0
LSNB1.25-4L	#8	4.3	8.1	6.5	16.0
LSNB1.25-5S	#10	5.3	8.1	6.5	16.0
LSNB1.25-5L	#10	5.3	9.5	6.5	16.0
LSNB2-3.5	#6	3.7	6.0	6.5	16.0	4.8	4.9	2.3	Lead Section: 1.5-2.5mm Max Current:Imax=27A Material:Copper Thickness:0.8mm
LSNB2-4S	#8	4.3	6.4	6.5	16.0
LSNB2-4L	#8	4.3	8.1	6.5	16.0
LSNB2-5S	#10	5.3	8.1	6.5	16.0
LSNB2-5L	#10	5.3	9.5	6.5	16.0
LSNB5.5-3.5	#6	3.7	8.3	7.5	19.5	6.0	6.7	3.4	Lead Section:4-6mm Max Current:Imax=48A Material:Copper Thickness:1.0mm
LSNB5.5-4	#8	4.3	8.3	7.5	19.5
LSNB5.5-5	#10	5.3	9.0	7.5	19.5
LSNB5.5-6	1/4	6.4	12.0	12.0	25.5
