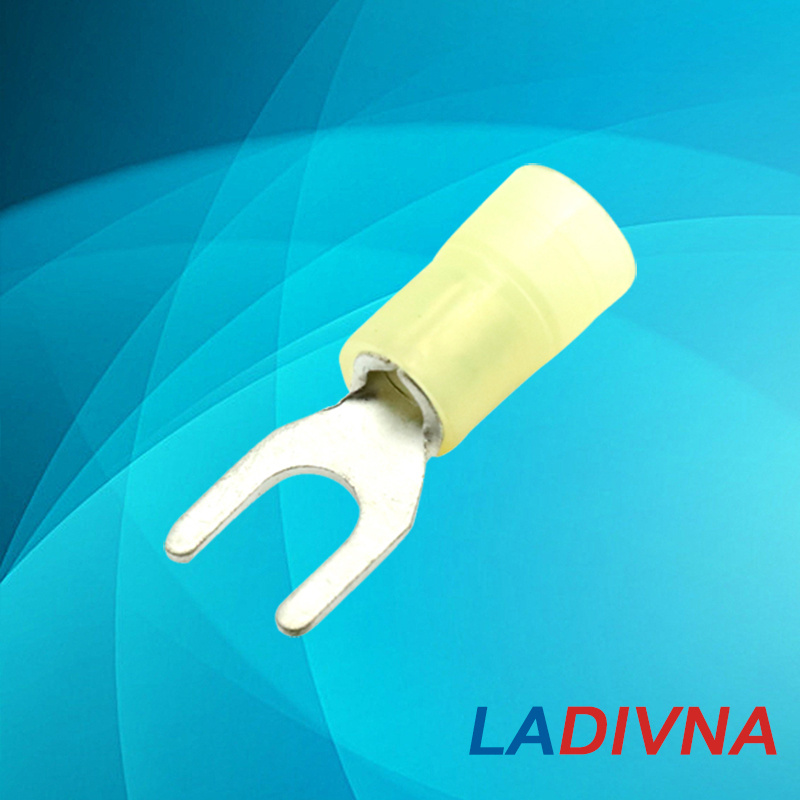

Furcate Pre-Insulating Terminal (SV)

Name: Furcate Pre-Insulating Terminal (SV)
Brand: all-electronics-online.com
SKU: 687654045
Availability: InStock
Rating: 4.9 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper

Product Description

Wire Range: 0.5-1.5mm² (A. W. G 22-16)
Max AMP: 1max = 19A Material: Copper

Wire Range: 1.5-2.5mm² (A. W. G 16-14)
Max AMP: 1max = 27A Material: Copper

Wire Range: 4- 6 mm² (A. W. G 12-10)
Max AMP: 1max = 48A Material: Copper

ITEM NO	American Bolt number	d2(mm)	Dimension(mm)						Color
ITEM NO	American Bolt number	d2(mm)	B	L	F	H	D Ø
SV 1.25-3	#4	3.2	5.7	21.2	6.5	10.0	4.3	Red
SVS 1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL 1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS 1.25-4	#8	4.3	6.4	21.2	6.5
SVM 1.25-4	#8	4.3	7.2	21.2	6.5
SVL 1.25-4	#8	4.3	8.1	21.2	6.5
SVS 1.25-5	#10	5.3	8.1	21.2	6.5
SVL 1.25-5	#10	5.3	9.5	21.2	6.5
SVS 1.25-6	1/4	6.4	9.5	21.2	6.5
SVL 1.25-6	1/4	6.4	12.0	27.2	11.0
