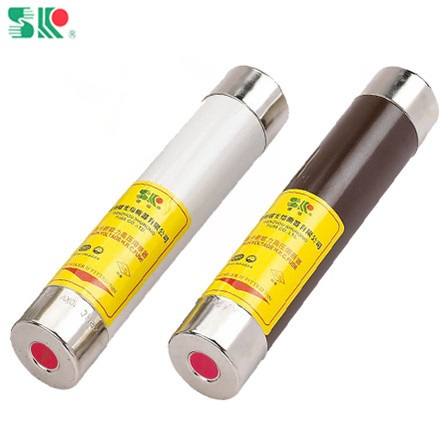

Fuse High Voltage for Protect Motor From Short-Circuit and Ovlerload

Prod Model:	XRNM-7.2KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage 3.6~10kv:	Rated Current up to 400A&224A
Color: Brown, White:	Material: Porcelain
Length: 254, 403, 600mm:	Diameter: 51, 76mm
Type:	Current Fuse
Breaking Capacity:	High
Usaga:	Electronic
Standard:	GB15166.2,IEC282-1,Bs
Shape:	Tube
Fusing Speed:	Quick
Fusing Device:	Striker

Product Description

Product Description

Key Specifications/Special Features:

1. Motor protection

2. High breaking capability

3. High voltage current limiting fuse

4. Suitable for electrical power system of AC 50Hz, rated voltage 10kV and below, rated current up to 400A(3.6KV), 224A(7.2KV) circuit for protecting motor and other power equipment from overload and short-circuit.

5. High-pressured fuse conforms to the national GB15166.2 standard and the international electrical committee IEC 60282 standard as well as German DIN standard and British BS standard.

foreign models	department	rated voltage(KV)	rated current of thefuse links(A)	rated  breaking current(KA)	diameter(mm)	length
WDF.O	XRNM1	3.6	50,63,80,100,125	50	51	254
WFF.O	XRNM1	3.6	125,160,200	50,	76	254
WKF.O	XRNM1	3.6	250,315,355,400	50	76	254
WFN.O	XRNM1	7.2	25,31.5,40,50,63,80,100,125,160	40	76	403
WKF.O	XRNM1	7.2	200,224	40	76	403
		10	25,31.5,40,50,63,80,100,125,160,200,224	40	76	600
