Fuse on Save Energy Lamp with UL

Name: Fuse on Save Energy Lamp with UL
Brand: all-electronics-online.com
SKU: 761505575
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Current Rating:	1-5A
Coating:	Silastic Sleeve
Product Name:	Fuse on Save Energy Lamp with UL
Breaking Capacity:	High
Type:	Temperature Fuse
Usaga:	Electronic

Product Description

Product description of the Fuse on Save Energy Lamp with UL.
Specifications:

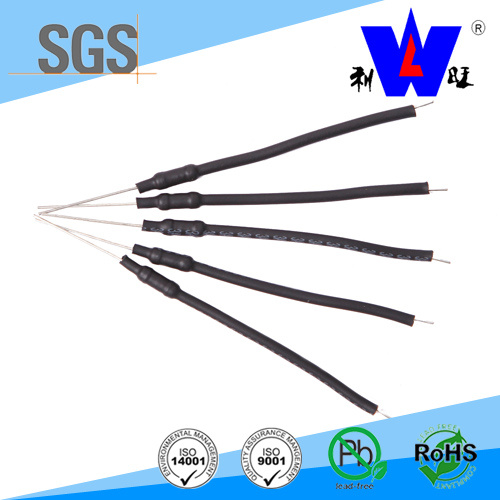

Fuse On Save Energy Lamp
Type:1A,1.5A,2A,3A ect
Fuse On Save Energy Lamp
Coating by silastic sleeve.They are used in save energy lamp.

Electrical characteristics:
Pre-arcing time/current characteristic
Rated current:
2 In in 5S maximum
2.75In in 300mS maximum
4In in 30mS maximum
10In in 4mS maximum

Function characteristics:

recentage of rated current	blow time limit
100%	4 hours min
150%	1 hours min
200%	2 minutes max
400%	150ms min 10s max

Ratings:
160mA~5A: 50A 125V AC/DC
6.3A: 63A 125V AC/DC

Environmental specifications:
Operating temperature: -5 to 60 degrees Celsius
Stock conditions:

Temperature: +10 to 60 degrees Celsius
Relative humidity less than or equal to 75% storing for three years on average
Without dew, maximum value for 30 days, 95%
Structure:

Body: plastic (quantity = 1)
Termination: tinned copper wire (quantity = 2)
Weight: 0.26g (approximately) per fuse

Standards and approvals:
C-UL/VDE/CCC/PSE approved
See nominal melting I2t A2sec

Don't hesitate to contact us if you have any interest in our products, welcome to provide us your specification, we will submit the best quotation shortly.
It's our pleasure to be on service of you.Thanks.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
