| Prod Model: |
RDH5 |
| Frequency: |
50Hz |
| Type: |
Low-voltage |
| Structure: |
Double-column Disconnector |
| Installation: |
Indoor High-voltage |
| Operation: |
Manual |
| Run: |
Vertical Rotation |
| Switching Mode: |
Single Throw-in |
| Certification: |
CE |
| Brand: |
People |
Product Description
Application

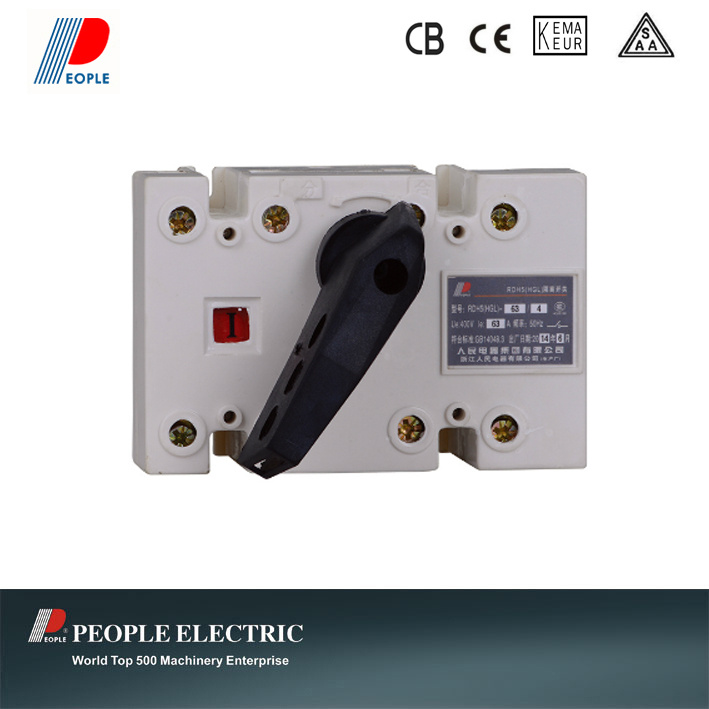

RDH5(HGL) series fuse-switch disconnector, is applied to Power-distribution system of AC50Hz,rated voltage up to 400V,DC rated voltage up to 440V,rated current from 125A to 1600A,as circuit making and breaking unfrequently and isolator.And the product which is above 1000A only works for electric isolator.
Operate and installation condition:
3.1 Temperature: no higher than +40ºC,and no lower than -5ºC
3.2 Altitude: no higher than 2000m
3.3 The relative humidity: no more than 90%
And Installation location should have no exploresion danger, and no gas and conductive dust which can cause corrosion and insulation damage.
3.5 It should be installed at the place without obvious impact and weather-influence.
3.6 Installation type:III
Note:if the actual temperature cannot meet the requirements,it should be consulted with manufacturer.
For more details and information,please contact us with no hesitate,
Or visit our website: http://www.chinapeople.com
Main teccnical parameter
| One Normally open, One Normally close | 11 | NO+NC | applied to RDH5(HGL),RDH5(HGL)C |
| Two Normally open, Two Normally close | 22 | 2NO+2NC | applied to RDH5(HGL),RDH5(HGL)C,RDH5(HGL)Z |
| rated current A | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 1000 | 1250 | 1600 |
| dielectric strength V | 5000 | 5000 | 5000 | 5000 | 8000 | 8000 | 8000 | 8000 | 10000 | 10000 | 10000 |
| rated insulate voltage | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| rated breaking capacity | 1000 | 1000 | 1600 | 1600 | 2500 | 3200 | 3200 | 3200 | 8000 | 8000 | 8000 |
| rated making capacity | 1250 | 1250 | 2000 | 2000 | 3150 | 4000 | 4000 | 4000 | 10000 | 10000 | 10000 |
| life | 10000 | 10000 | 10000 | 10000 | 5500 | 5500 | 5500 | 5500 | 4000 | 4000 | 3000 |
