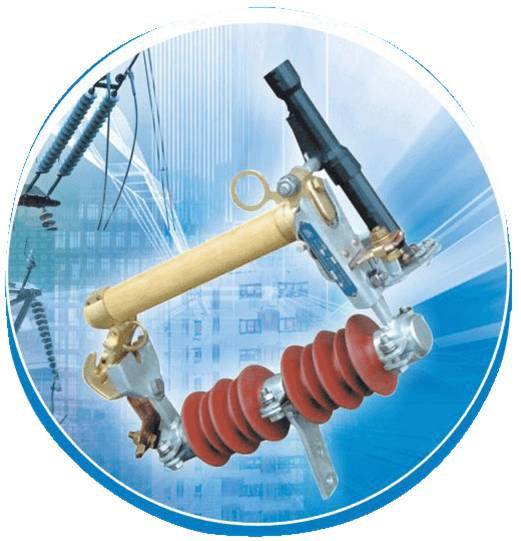

Fuse with Load Isolator
| Price: |
US $ 100-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
PRW-12F/200 Drop-off Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12kv |
| Rated Current: |
200 |
| Off/on Loading Current Times: |
≥15 |
| Type: |
High-voltage |
| Structure: |
Single-column Disconnector |
| Installation: |
Indoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Single Ground |
| Series: |
Single-Stage |
| Run: |
Plug-In |
| Switching Mode: |
Single Throw-in |
| Certification: |
ISO |
| Brand: |
Ville |
Product Description
General:
PRW-12F/200 type fuse is used for overload and short circuit protection and opening and closing load current in power distribution and distribution transformer with rated voltage 10kV, rated current less than 200A and frequency 50Hz.
Structure:
This kind of fuse consists of three parts: Fuse base, load arc-extinguishing device and an arc-extinguishing device. Active and static contactor is of bridge structure. While fuse is in closing position, active and static contactor will be tightly pressed by compressed spring to guarantee a suitable pressure between contactors. A rotary torsion spring is equipped in the lower end of arc-extinguishing tube. When a fuse-element is put in the tube, the torsion spring will be screwed tightly, the fuse will be in drawing tightly condition to ensure the arc-extinguishing tube self-locked in closing position. When overload or short-circuit occurs, fuse-element will be melted and the fuse will be quickly drawn out from the fuse tube by the torsion spring. Meanwhile, a great deal of arc-extinguishing gas is produced in the fuse tube by electric arc heat energy to extinguish electric arc quickly. After electric arc-extinguishing, the voltage between the both ends of the fuse is regained. The fuse tube will be dropped out by its weight and a function of compressed spring with bridge contactors. So an obvious disconnected section will be produced. Arc-extinguishing tube is designed at a step by step gas-discharging type. While breaking a low current, gas produced will be released from the lower vent. While breaking a high current, the gas produced will be released from the upper cap to realize a gas release from both the top and the bottom, which meets the requirements of breaking different current in the same fuse.
Main Technical Data:
| Rated Voltage | 12 |
| Rated Current | 200 |
| Rated Breaking Capacity | Upper Limit | 200 |
| Lower Limit | 400 |
| Off/on Loading Current Times | ≥15 |
| Weight (If silicon rubber equipped, the 2kg could be reduced.) | 7.8 |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
