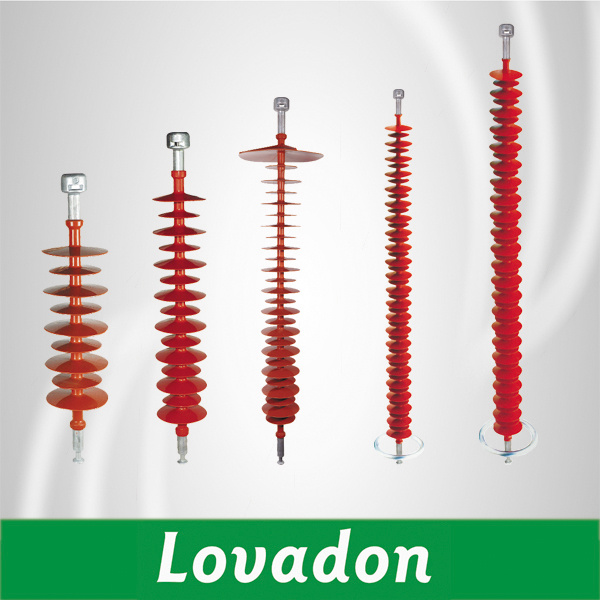

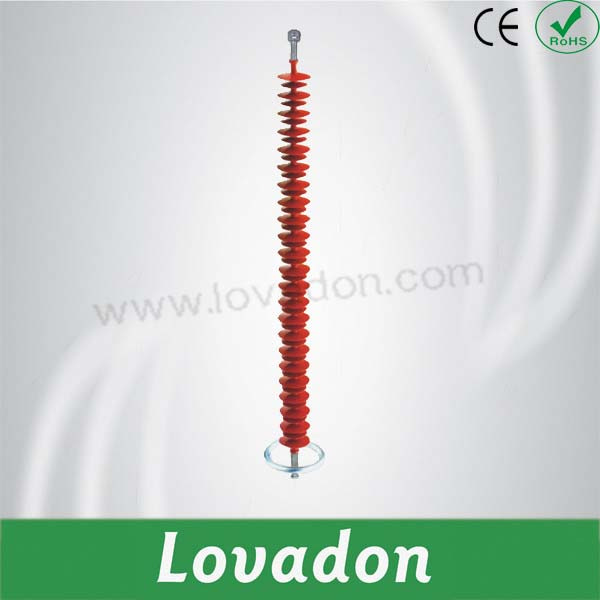

Fxbw4 Series Rod Composite Suspension Insulator

Name: Fxbw4 Series Rod Composite Suspension Insulator
Brand: all-electronics-online.com
SKU: 684283622
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator

Product Description

1. Item name: Rod composite suspension insulator
2. Standard: IEC

Long Rod Suspension Composite Insulator FPBW4-220/160
Application For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109

Composite Insulator for AC Power Distribution System

Features:
Secure and reliable operation on high mechanical strength.
Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability.
Good electric performances
Strong anti-pollution falshover ability.
High anti-aging performances which is perfect for utilization under conditions of high altitude.
Easy for maintenance.

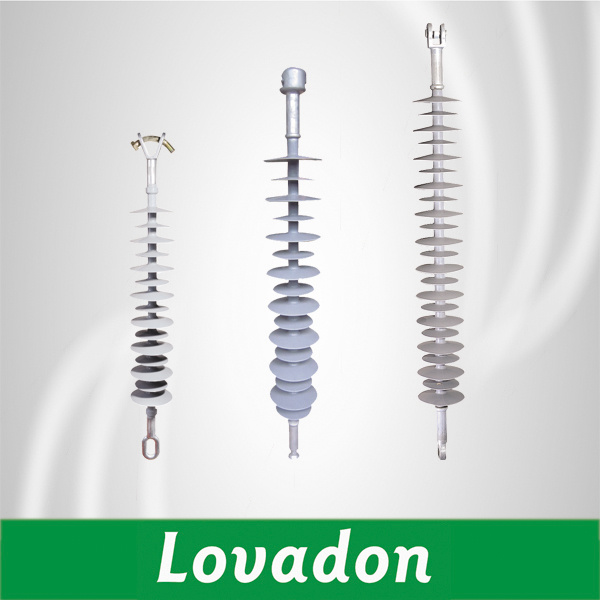

Product range:
Long rod polymer insulator up to 500kV.
Polymer pin insulator up to 36kV.
Polymer post insulator up to 252kV.
Line post insulator up to 36kV.

Note: For details, please refer to the catalogue.

Type	Rated voltage(kV)	Specified mechanical load(kN)	Section length(mm)	Min Arc distance(mm)	Leakage distance(mm)	Lightning impulse withstand BIL(kV)	Power frequency withstand (wet) (kV)
FPBW4-66//70	66	70	900	710	1980	410	185
FPBW4-66/100	66	100	940	710	1980	410	185
FPBW4-110/100	110	100	1240	1000	3315	550	230
FPBW4-145/120	145	120	1480	1240	4123	725	355
FPBW4-220/100	220	100	2240	1900	6300	1000	395
FPBW4-220/160	220	160	2240	1900	6300	1000	395
FPBW4-330/100	330	100	2990	2600	9075	1425	570
FPBW4-330/160	330	160	2990	2600	9075	1425	570
FPBW4-500/160	500	160	4080	3730	12750	2250	740

1.Specifications
Product Model	Rated voltage (KV)	Rated mechanical bending load (KN)	Structure height H(mm)	Min Arc distance(mm)	Min creepage distance(mm)	Lightning impulse withstand voltage (peak)(KV)	1 min P.F withstand voltage (wet)(Vitrual value) (KV)
FXBW4-10/70	10	70	350+/-15	180	400	95	45
FXBW4-10/100	10	100	370+/-15	200	480	95	45
FXBW4-24/70	24	70	550+/-15	370	850	185	95
FXBW4-24/100	24	100	570+/-15	370	850	185	95
FXBW4-35/70	35	70	650+/-15	450	1015	230	95
FXBW4-35/100	35	100	670+/-15	450	1015	230	95
FXBW4-66/70	66	70	920+/-15	700	1900	410	185
FXBW4-66/100	66	100	940+/-15	700	1900	410	185
FXBW4-110/70	110	70	1200+/-15	1000	3150	550	230
FXBW4-110/100	110	100	1240+/-15	1000	3150	550	230
FXBW4-220/100	220	100	2240+/-30	1900	6300	1000	395
FXBW4-220/160	220	160	2240+/-30	1900	6300	1000	395
FXBW4-330/100	330	100	2990+/-30	2600	9075	1425	570
FXBW4-330/160	330	160	2990+/-30	2600	9075	1425	570
FXBW4-330/210	330	210	2990+/-30	2600	9075	1425	570
FXBW4-550/160	500	160	4450+/-300	4000	13750	2250	740
FXBW4-500/210	500	210	4450+/-300	4000	13750	2250	740
