Fyrejacket Fire Sleeve

Prod Model:	FJF-56
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	4mm to 152mm
Standard Packaging:	25meters
Temperature:	Continue *1750°c Intermediate
Application:	Steel Factory
Type:	Insulation Sleeve
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	250 250
Maximum Voltage:	10KV~20KV
Color:	Brick Red
Brand:	Hong Tai

Product Description

THE ULTIMATE HEAT PROTECTION FOR CABLES
Up to approximately 100°C most conduits offer good cable protection. Metal conduit itself
withstands higher temperatures (up to 800°C), but has limited insulation properties. Good heat
protection and insulation can be provided by a high insulating outer jacket with protective cover. The
Hiprojacket and Hiprotape from Hongtai Insulation of China meet those requirements.

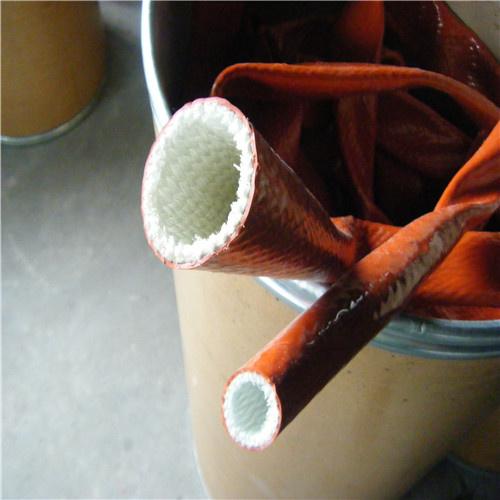

Hiprojacket and Hiprotape are both constructed from a high bulk fibreglass fibre that is
woven to produce a hollow sleeve or tape. It is coated with a thick covering of iron oxide
red silicone rubber. The ability to shed molten metal splash and withstand intense radiant

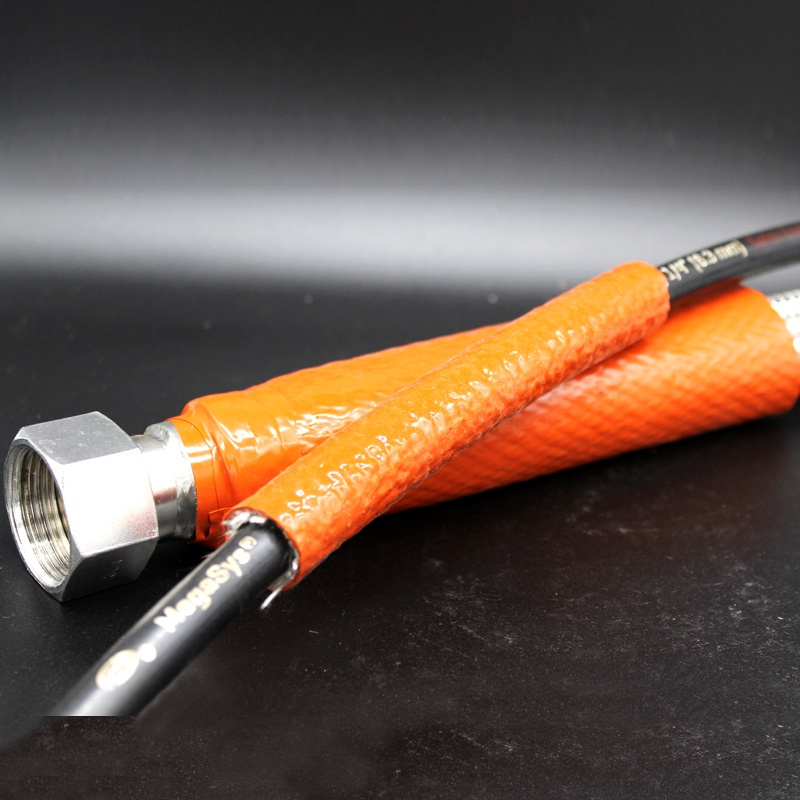

heat are important characteristics that make Hipro-jacket and Hiprotape ideal for
protecting hoses, cables and wires in a variety of hostile environments.
Applications:
Hiprojacket and Hiprotape offer high temperature protection and the outer cover
offers excellent re-sistance to most industrial chemicals and hydraulic oils. Additional usage
includes the bundling of multiple hoses and cables together, while providing good abrasion
resistance.In applications where operators and maintenance personnel are working in the
vicinity of steam lines or hot oil lines, there is always the danger of serious burns. Hiprojacket provides effec-tive burn protection from steam lines, while insulating against costly energy losses.
Applications include rubber vulcanisation operations, platen presses, injection moulding plants
or anyplace where hot steam or oil lines are used.
