Fzn21-12/Fz (R) N21-12D Indoor High-Voltage Alternating-Current Vacuum Load Switch

Name: Fzn21-12/Fz (R) N21-12D Indoor High-Voltage Alternating-Current Vacuum Load Switch
Brand: all-electronics-online.com
SKU: 717576502
Availability: InStock
Rating: 4.5 (140 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FZN21-12/FZ(R)N21-12D
Rated Current A:	630/1250A
Rated Voltage:	40.5
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Insert
Structure:	MCCB
Poles Number:	3
Certification:	Type Report

Product Description

FZN21-12/FZ(R)N21-12D Indoor high-voltage alternating-current vacuum load switch

General

Ratings: Rated voltage 10kV, AC50/60Hz.
Application: for the busbar liaison, electric energy measurement, power equipment overload or short circuit protection and as the protection unit in maintenance.
Characteristic:Equipped with screw feed mechanism to prevent wrong operation,and easy to moving.
Standard: IEC62271-100.

Working Condition

Ambient air temperature: -40~+40ºC
Altitude: ≤1000m
No operating in such places as subject to dust, dirt, smog, corrosive / flammable gas, vapor and salt pollution.
Humidity: Daily average value ≤95%
Monthly average value ≤90%
Water vapor pressure: Daily average value ≤2.2kPa
Monthly average value ≤1.8kPa
The external shocking and earthquake could be neglected.
Note: Customized products are available on your requirements.

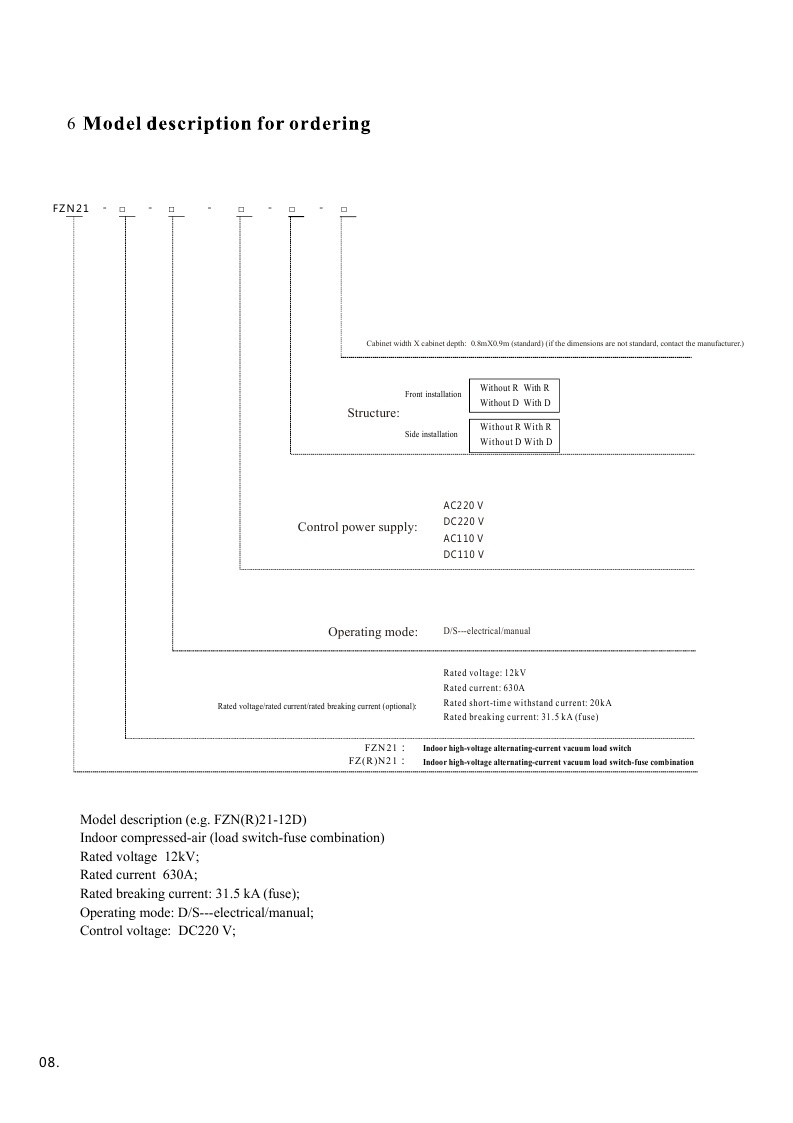

Ordering Information:

Please indicate the following items when order:
Type, name and quantity.
Rated voltage, rated current and rated short-circuit breaking current.
Rated operating voltage.
Name and quantity of spare parts.
Customized products are available per you requirements
