| Prod Model: |

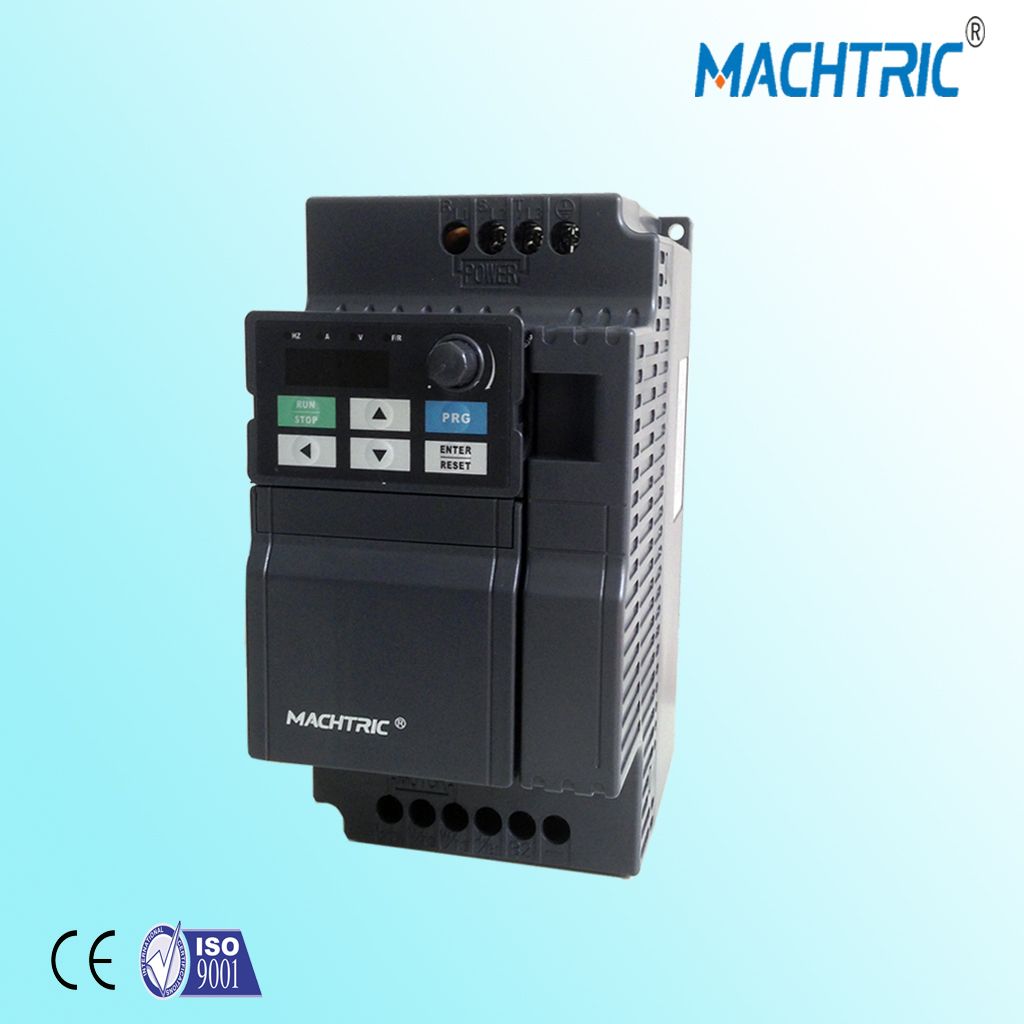

Z900 frequency inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
V/F& Sfvc |
| Frequency Range: |
0~320Hz, 0~3200Hz |
| Color: |
Black |
| Torque Control Accuracy: |
±5% |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
ItemZ900
Control mode: Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control
Maximum frequency: Vector control: 0-300 Hz
V/F control: 0-3200Hz
Carrier frequency: 1 kHz-16 kHz
The carrier frequency can be automatically adjusted based on the load features.
Input frequency resolution
Dgital setting: 0.01 Hz
Analog setting: Maximum frequency X 0.025%
Startup torqG type: 0.5 Hz/150% (SFVC);
P type: 0.5 Hz/100%
Speed range
1: 100 (SFVC)
Speed stability accuracy± 0.5% (SFVC)
Overload capacityG type: 60s for 150% of the rated current,
3s for 180% of the rated current.
P type: 60s for 120% of the rated current,
3s for 150% of the rated current.
Torque boostAuto-boost
Customized boost 0.1%-30.0%
V/F curve
Liner V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,
1.8-power, square)
V/F separationTwo types: Complete separation; Half separation
Ramp mode
Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC brakingDC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-36.0s
Braking action current value: 0.0%-100.0%
JOG control
JOG frequency range: 0.00-50.00 Hz
JOG acceleration/deceleration time: 0.0-6500.0s
| Item | Item Description |
| Input | Rated voltage& Frequency | Single /Three phase 220VAC . Three phase 380V.50Hz/60Hz |
| Allowable Voltage range | Voltage fluctuate range:-20%~+20% |
| Voltage unbalance rate:<3%;Frequency fluctuation:≤5% |
| Output | Rated voltage | three phase 0~ input AC voltage |
| Frequency | 0.00~600.00Hz |
| Overload capacity | Type G:150% 1minute,180% 1 second,200% transient protection |
| Type P:120% 1minute,150% 1 second,180% transient protection |
| Control Function | Modulation mode | Optimal space voltage vector PWM modulation |
| Control mode | Sensorless vector control (SVC), V/F control . Torque control |
| Frequency accuracy | Digital setting: Max. Frequency ×±0.01% |
| Analog setting:Max. Frequency×±0.2% |
| Frequency resolution | Digital setting :0.01HZ; |
| Analog setting :Max. Frequency x0.1%. |
| Starting frequency | 0.00~10.00Hz |
| Torque lift | Automatic torque lift: To lift the torque automatically according to the output current. |
| Manual torque lift, Range: 0.1-30.0% |
| Slip compensation | Setting range:0~150%,The inverter output frequency can be auto-regulated within this range according to the motor load, so as to reduce the speed variation of the motor due to load fluctuation. |
| Acceleration/deceleration | Minutes/Seconds can be selected as time unit .0.1~3600S can be set in sequence . |
| time |
| Carrier frequency | 1.0~15.0KHz |
| Jog function | Jog frequency range:0.01~600.00Hz, |
| Jog acceleration /deceleration time 0.1~3600.0S can be set. |
| V/F curve | 1:linear curve;2:quadratic;3:user defined V/F curve |
| Control Function | Automatic energy-saving operation | Auto optimize V/F curve according to the load changes to realize the energy saving operation. |
| Auto voltage regulation (AVR) | When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage. |
| Built-in PID | This can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control . |
| Operation Function | Operating command | Operation panel control ,external terminal control and COM control |
| Frequency setting | Keypad potentiometer setting , operation panel setting,. external terminal UP/DOWN setting, analog voltage signal or external potentiometer setting , analog current signal setting .terminal combination setting ,485 COM setting and so on. |
| Input Signal | Forward/Reverse signal,multi-speed signal , fault signal , |
| reset signal etc. |
| Output signal | Programmable relay, open collector output , Fault signal output. |
| Multi-function analog and digital output terminal | This can realize the output of frequency current and other physical quantity by output 0-10V or 0-20mA DC signal and 0-10KHz digital signal output. |
| Braking function | Dynamic braking | With an external braking resistor, the maximum braking torque may reach 100%. |
| DC Braking | This can be selected when the motor starts or stops with the action frequency of 0-20Hz,action current level of 0-100% and actuation time of 0-30sec., which can be set in sequence. |
| Other Function | Skip frequency,Jog function, Counter ,Rotation speed tracking, Momentary power loss restart ,Frequency upper/lower limiting, Acceleration/ Deceleration mode can be adjusted ,Frequency meter and Voltmeter output ,Multi-speed/ program running ,Two wire mode/ three wire mode control ,Wobble frequency control, Multi-function input terminal selection , Fault auto reset,RS485 serial communication . |
| Protection Function | Input phase loss protection, Over current protection ,Overload protection, Over voltage protection ,Under voltage protection, Over heat protection ect. |
| LED display | Can display the real time running status of the inverter , monitor parameter .function parameter and fault code and other information of the inverter. |
| Matching parts | Braking assembly, remote keypads and wire connection , communication panel . |
| Ambient | Place to be used | Indoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc |
| Altitude | Below 1000 M |
| Ambient Temperature | -10 C to +45 C (Bare Machine: -10 C to+50 C) |
| Humidity | 20%-90% RH without dew condensation |
| Vibration | <0.5G |
| Storage temperature | -20~+60 C |
| Structure | Protection class | IP20 |
| Cooling mode | Forced air cooling |
| Installation mode | Wall mounted or floor-type actuator |
Why choose Machtric frequency inverter?
1. Easy operating system. --- easy but effective software, gentle touch achieve.
2. Stable performance--- best famous company ensure the quality all the time.
3. Excellent after sales service--- never leave you along.
4. Fast delivery --- safety delivery, we look after it all the time.
We looking forward to cooperate with you!
Delivery time required:
Normally in one week or two week, depend on quantity! .
Minimum order value:
MOQ =1
Variable Frequency Drives Variable Speed Drives Frequency Converters AC converters
Frequency Inverters AC Drivers AC Drives AC Motor Drives VFD VSD Transistorized Drives
| Model No. | Input Voltage | Rated Output Power (KW) | Rated Input Current(A) | Rated Output Current (A) | Motor Power (KW) |
| Z900-2S0.4GE | 1PH AC
220V?50/60Hz | 0.4 | 5.4 | 2.4 | 0.4 |
| Z900-2S0.75GE | 1PH AC
220V?50/60Hz | 0.75 | 7.2 | 4.5 | 0.75 |
| Z900-2S1.5GE | 1PH AC
220V?50/60Hz | 1.5 | 10 | 7.0 | 1.5 |
| Z900-2S2.2GE | 1PH AC
220V?50/60Hz | 2.2 | 16 | 10.0 | 2.2 |
| Z900-2S3.7GE | 1PH AC
220V?50/60Hz | 3.7 | 23 | 16.0 | 3.7 |
| Z900-4T0.75GE | 3PH AC
380V@50/60Hz | 0.75 | 3.8 | 2.5 | 0.75 |
| Z900-4T1.5GE | 3PH AC
380V@50/60Hz | 1.5 | 5 | 3.7 | 1.5 |
| Z900-4T2.2GE | 3PH AC
380V@50/60Hz | 2.2 | 5.8 | 5.0 | 2.2 |
| Z900-4T3.7GE/5.5GP | 3PH AC
380V@50/60Hz | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| Z900-4T5.5GE | 3PH AC
380V@50/60Hz | 5.5 | 15.0 | 13.0 | 5.5 |
| Z900-4T7.5GE | 3PH AC
380V@50/60Hz | 7.5 | 14 | 17.5 | 7.5 |
| Z900-4T7.5GE/11GP | 3PH AC
380V@50/60Hz | 7.5/11 | 20.0/26.0 | 17.0/25.0 | 7.5/11 |
| Z900-11GE/15GP | 3PH AC
380V@50/60Hz | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
Z900-15GE/
18.5GP | 3PH AC
380V@50/60Hz | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
Z900-18.5GE/
22GP | 3PH AC
380V@50/60Hz | 18.5/22 | 38.0/46.0 | 37.0/45.0 | 18.5/22 |
| Z900-22GE/30GP | 3PH AC
380V@50/60Hz | 22/30 | 46.0/62.0 | 45.0/60.0 | 22/30 |
