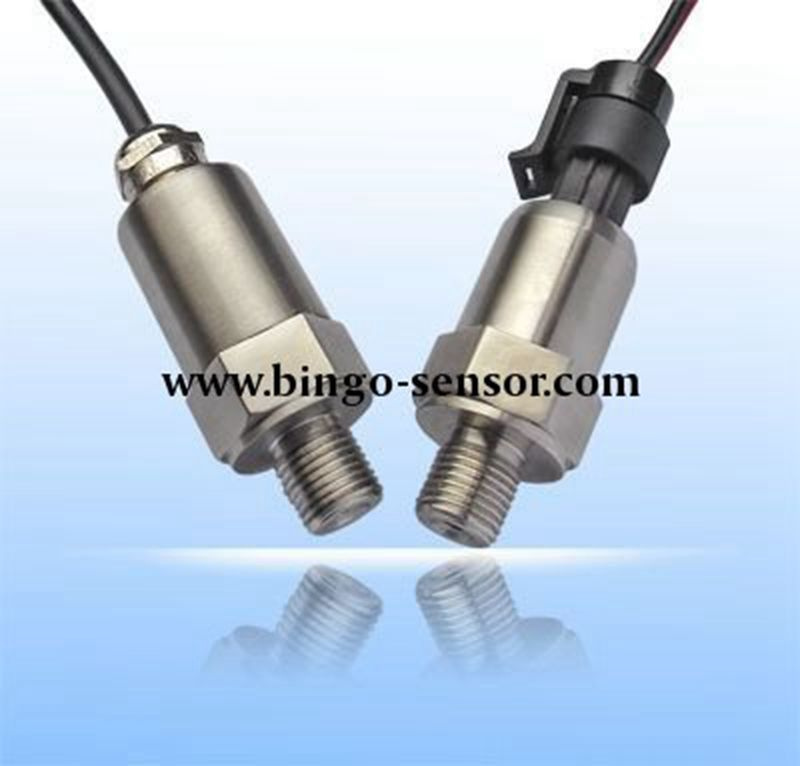

G1'' Thread Industrial Pressure Transmitter

Prod Model:	PT-ID010
Pressure:	2, 5, 10,16, 20, 50. 100 (Unit: Bar) 0 2,0 5, 1, 1
Accuracy:	0 5%Fs
Medium:	Virous Liquid, Gas and Steam That Can Compatible W
Pressure Port:	G1/4". M20 * 1 5. G1/2". Can Be Special Order

Product Description

Introduction
PT-ID010 of pressure transmitter feature high quality, high stability, small size. Low weight. Compact structure, low cost and mass production. The products are widely used to measure of air compressors. Auto engines, air conditioning equipment. Etc. The product is made of stainless steel and Stainless steel are ideal for industrial environment. Non-polar two-wire current output and three-wire voltage output are provided.
Characteristic
*± 0 5%F S Accuracy
*High Stability, High Reliability
*Economical and mass production
*Packard Connector and cable connection for option
*Multiple Pressure Ports
*Long-term stability ± 01%F S/year
Application
* Compressor
* Building water supply
* Hydraulic control
* Air conditioner
* Automotive engine
*Automatic detection system
* Hydraulic unit
* Refrigeration equipment
Technical Parameter

Pressure range	2, 5, 10,16, 20, 50. 100 (unit: Bar) 0 2,0 5, 1, 1 6. 2. 5. 10 (unit: Mpa)
Accuracy	±0 5%FS (linearity, repeatability and hysteresis)
Measuring medium	Virous liquid, gas and steam that can compatible with stainless steel
Pressure port	G1/4". M20 * 1 5. G1/2". can be special order
Pressure circulation	More than 10^8 times
Overload pressure	1.5 * RP (rated pressure)
Broken pressure	2*RP (rated pressure)
Long-term stability	Typical ±1%FS/year
Power supply	5V DC; 10- 30V DC
Output current	<10mA; <15mA
Output signal	0 - 10V DC. in direct proportion to the supply voltage 0.5 - 4.5V DC, in direct proportion to the supply voltage 1 ~ 5V DC (fixed output) 4 - 20mA. 2-wire
Zero point error	±2%FS (Please contact the factory if you need higher accuracy)
Span error	±2%FS (Please contact the factory if you need higher accuracy)
Output load	1mΩ (for mV output type), 5KΩ (for V output type) 0Ω©10V, 1000Ω@30V (for 4 - 20mA output type)
Response time	0 ~1KHz
Operating temperature	(-40)ºC   - 85ºC  : (other range can be special ordered)
Compensating temperature	0- 70ºC
Storage temperature	(-40)ºC  ~100ºC
Temperature effect on zero	<±1.5%FS
Temperature effect on span	<±1 5%FS
Housing material	Stainless steel, brass, Aluminium for option
Protection degree	IP65
