G10/Fr4 CNC Machined Parts for Insulation

Name: G10/Fr4 CNC Machined Parts for Insulation
Brand: all-electronics-online.com
SKU: 737948525
Availability: InStock
Rating: 4.7 (68 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	G10/Fr4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Customer
Application:	Motor
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	F 155
Maximum Voltage:	20KV~100KV
Color:	Light Green
Brand:	Nova

Product Description

Typical applications:

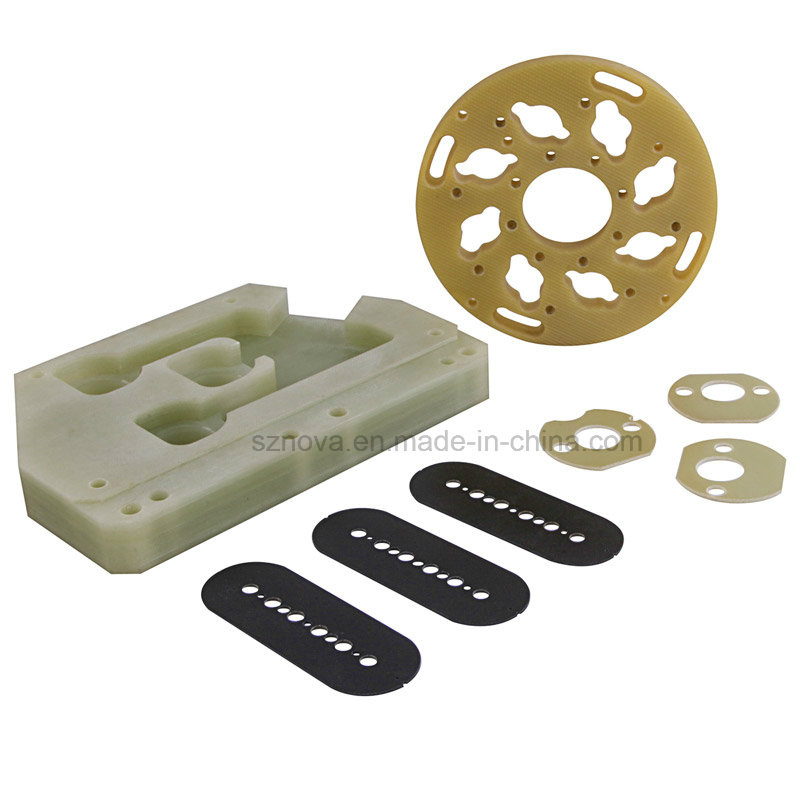

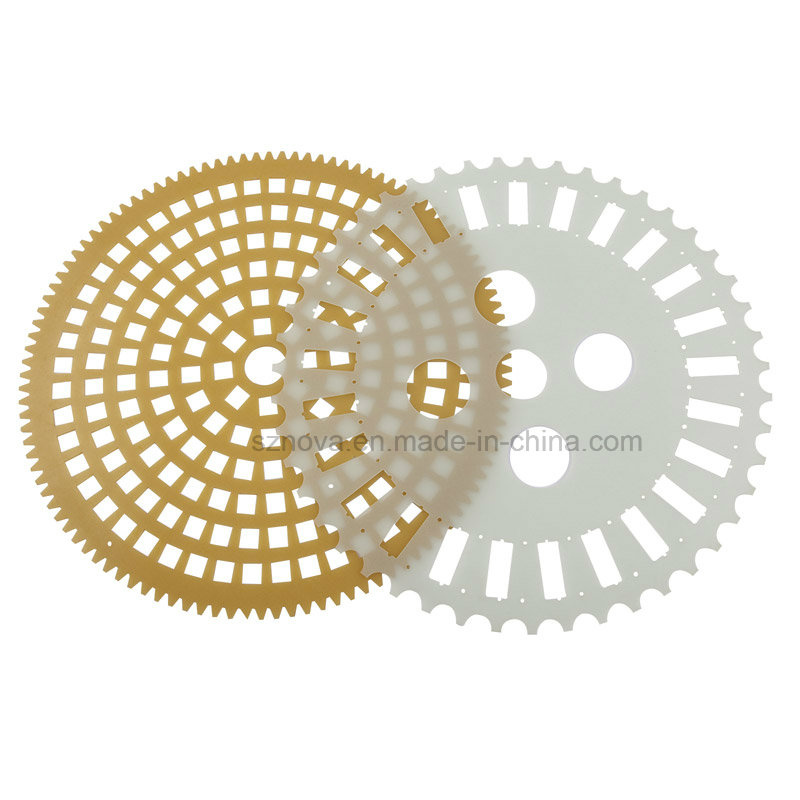

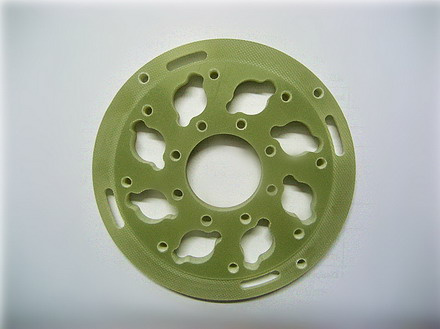

Gasket, terminal board, test board, washer, bushing, bearing, gear, spacer, socket and insulator.

These grades are composed ofelectrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat. They have extremely high mechanical & electrical strength. Good dielectric properties under dry and humid conditions. Excellent rigidity and dimensional stability.

Competitive Advantages:
Well and High Quality Control, Prompt Delivery, Competitive Prices, In a Variety of Design, Small Order Acceptable, ODM Accepted, OEM Accepted.

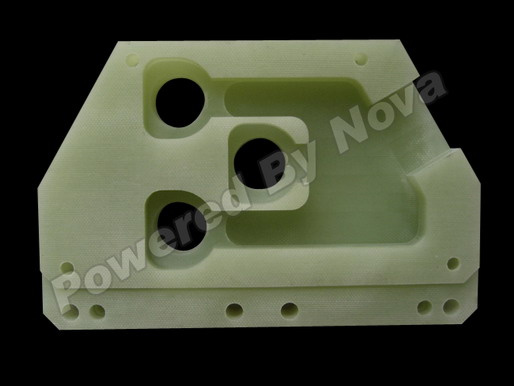

We have the ability to machine electrical insulation laminates & metallic material s into many customize sizes and shapes according to drawings or samples.

Basic Info.
Product Name	G10/Fr4 CNC Machined Parts for Insulation
Material:	FR4
Size:	As buyer's requirement
Trade Terms:	FOB, CFR, CIF, EXW
Payment Terms:	L/C, T/T, Western Union, PayPal
Min. order:	500kg

Machining Capability include CNC Milling, Lathe turning/drilling/ routing, Die cutting, and many others.

Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~100mm
*(101~200mm available in 915*1220mm & 1020*1220mm)
4) Sheet size: 915*1220mm; 1020*1220mm; 1020*2040mm; 1220*2440mm
5)Min. Order Quantity: 500 kgs in a lot

These grades are composed ofelectrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat. They have extremely high mechanical & electrical strength. Good dielectric properties under dry and humid conditions. Excellent rigidity and dimensional stability.
G10/FR4 Temperature Index: 135 Degree Celsius

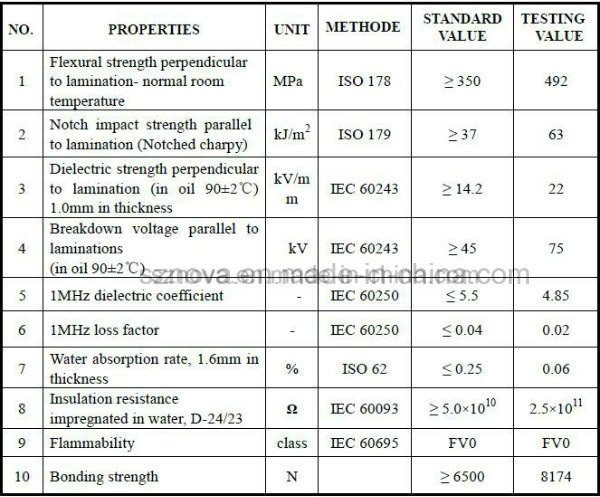

Technical Data sheet - G10/Fr4

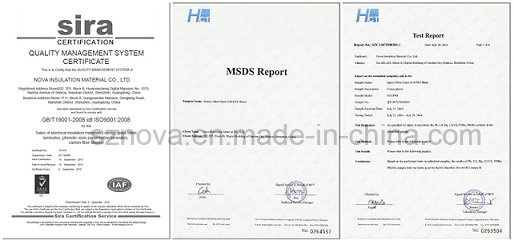

Certificate Show

About Us:

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

We can serve you not only customize the G10/FR4 Epoxy glass fabric laminated sheet products for you, but also very experienced design concept, strong program management system, well trained employees for G10/FR4 Epoxy glass fabric laminated making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.

FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
  A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
  A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
  A:It depends on quantity,the larger quantity is,the more discount you can get.

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
