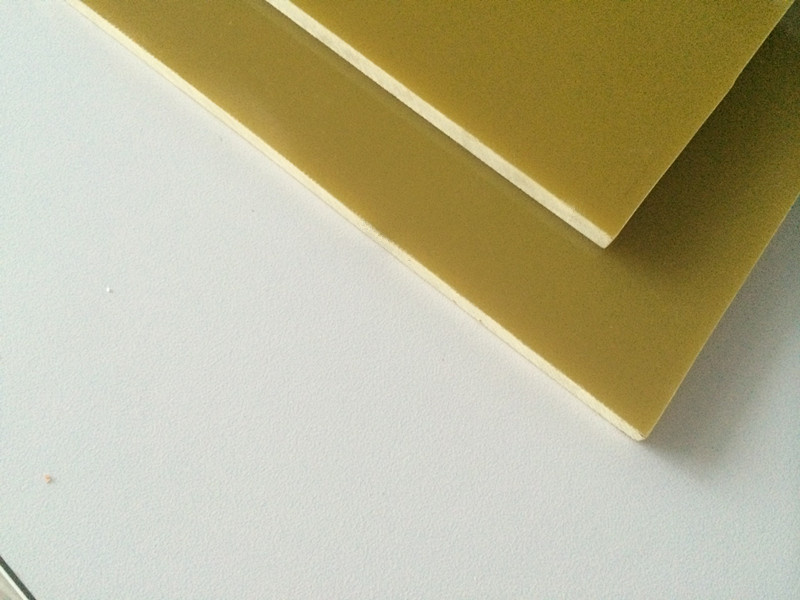

G10/Fr4 Epoxy Glass Laminate/3240
| Price: |
US $ 4.8-5kilogram |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
500kilogram |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Epoxy laminate |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Size: |
1020*1220mm |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Inorganic Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
B 130 |
| Maximum Voltage: |
20KV~100KV |
| Brand: |
Nova |
Product Description
Define and purpose:
This laminated product is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy phenolic resin. It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical/electrical equipment, as well as used under damp environmental conditions and transformer oil.
Technical requirement for surface:
The surface of laminated board should be flat and smooth, no bubble, no wrinkle, no delamination or crackle, and properly free from other defects such as scrape, impress, dirty spot and uneven color, but a little color patches is allowed. The surface of laminated board should be flat and smooth, no bubble, no wrinkle, no delamination or crackle, and properly free from other defects such as scrape, impress, dirty spot and uneven color, but a little color patches is allowed.
Characteristics:
* High mechanical properties, and oil resistance and certain dielectric property.
* Thermal rating is 120, and temperature resistance: 150 centidegrees
* Withstand a variety of chemical solvents and acid erosion
Application:
Chemical machine parts, general machine parts and gear, and generators, Pads, base, baffle etc...Generator, transformer, fixture, inverter, motor and electric insulation component

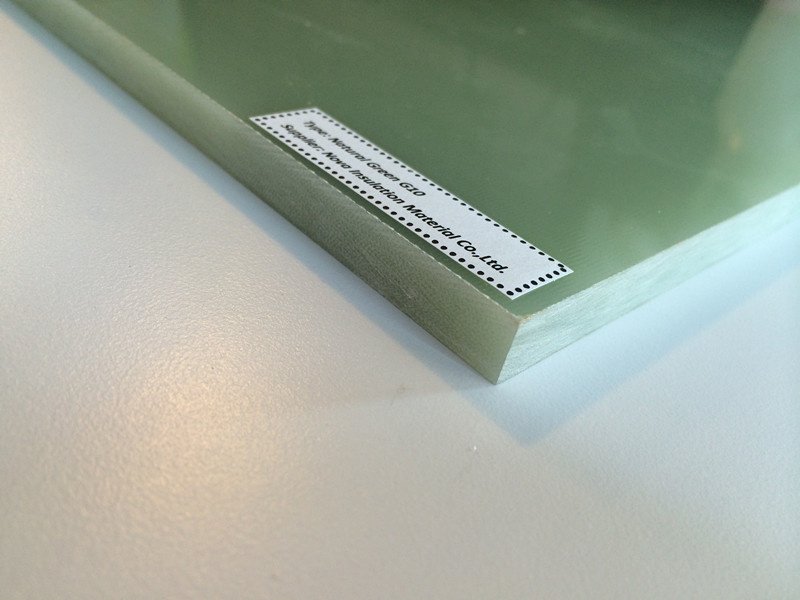

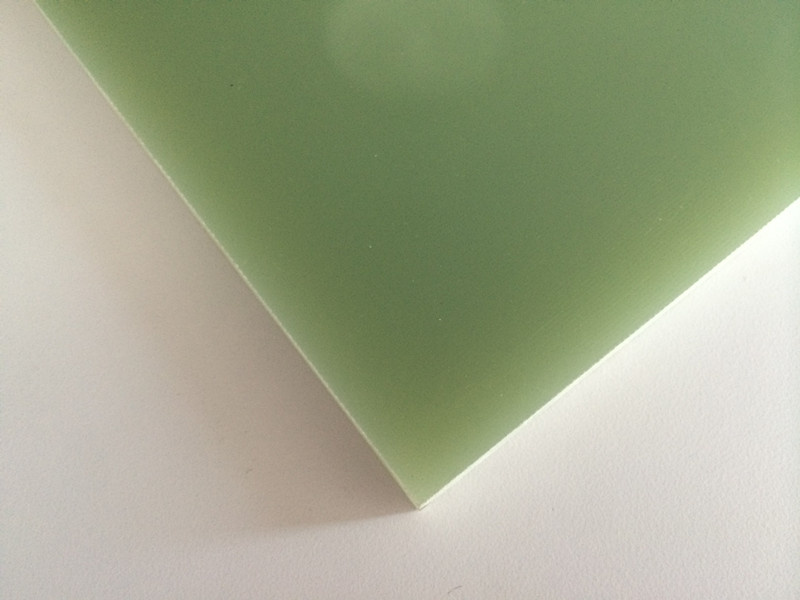

Specifications:1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~200mm
4) Sheet size: 915*1220mm; 1020*1220mm;
1020*2040mm; 1220*2440mm;
5)Min. Order Quantity: 500 kgs in a lot
NEMA Grade: G-10, FR-4
(IEC Grade: EPGC201, EPGC202)
(DIN7735 Grade: Hgw2372, Hgw2372.1)
(ISO1642 Grade: EPGC1, EPGC2)
Technical Data sheet - G10/Fr4| NO. | PROPERTIES | UNIT | METHODE | STANDARD VALUE | TESTING
VALUE |
| 1 | Flexural strength perpendicular to lamination- normal room temperature | MPa | ISO 178 | ≥ 350 | 492 |
| 2 | Notch impact strength parallel to lamination (Notched charpy) | kJ/m2 | ISO 179 | ≥ 37 | 63 |
| 3 | Dielectric strength perpendicular to lamination (in oil 90±2ºC) 1.0mm in thickness | kV/mm | IEC 60243 | ≥ 14.2 | 22 |
| 4 | Breakdown voltage parallel to laminations
(in oil 90±2ºC) | kV | IEC 60243 | ≥ 45 | 75 |
| 5 | 1MHz dielectric coefficient | - | IEC 60250 | ≤ 5.5 | 4.85 |
| 6 | 1MHz loss factor | - | IEC 60250 | ≤ 0.04 | 0.02 |
| 7 | Water absorption rate, 1.6mm in thickness | % | ISO 62 | ≤ 0.25 | 0.06 |
| 8 | Insulation resistance impregnated in water, D-24/23 | Ω | IEC 60093 | ≥ 5.0×1010 | 2.5×1011 |
| 9 | Flammability | class | IEC 60695 | FV0 | FV0 |
| 10 | Bonding strength | N | | ≥ 6500 | 8174 |

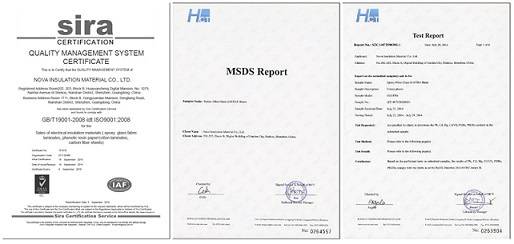

Certificate Show

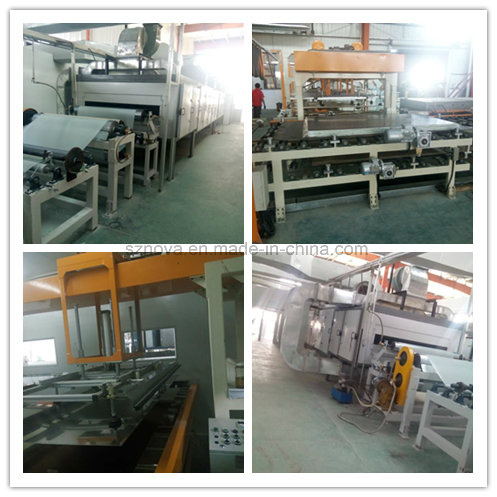

About Us:
Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.
We can serve you not only customize the G10/FR4 Epoxy glass fabric laminated rod products for you, but also very experienced design concept, strong program management system, well trained employees for G10/FR4 Epoxy glass fabric laminated making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.
We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!
FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
A:It depends on quantity,the larger quantity is,the more discount you can get.
Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.
We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.
Nova supplies the following products:
1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)
2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)
3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)
4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.
Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.
Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
