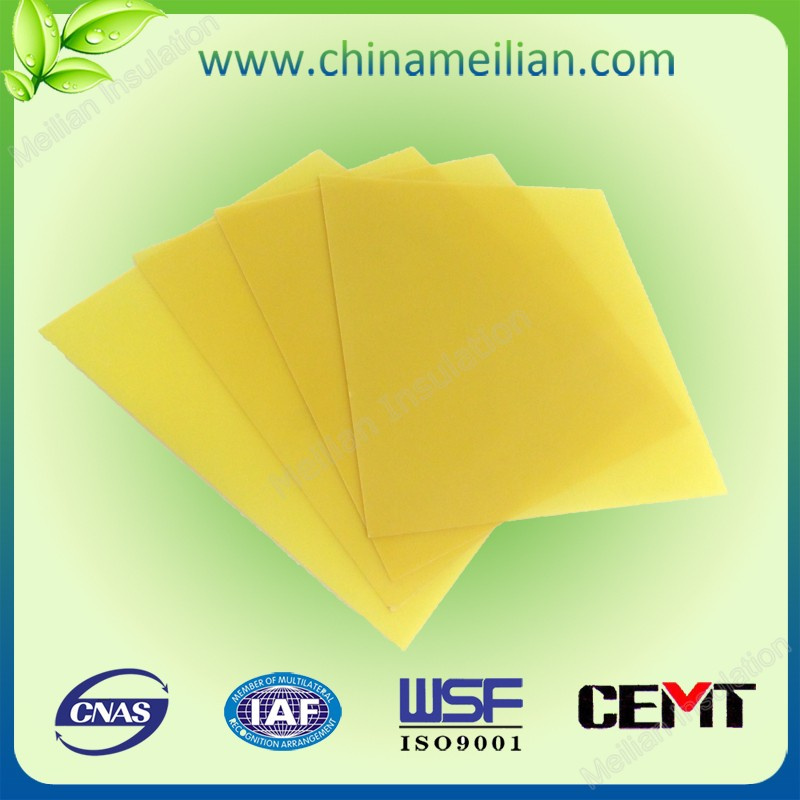

G10/Fr4 Glass Epoxy Sheet

Prod Model:	MJ-G10 FR4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Customer Requirement
Usage:	G10/Fr4 Glass Epoxy Sheet
Others:	G10 Sheet
Name:	Electric
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

g10/fr4 glass epoxy sheet
G10 insulation laminate fiberglass sheet/ board:
Appearance:
Natural color Yellow, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation

Feature:
Excellent mechanical & electric property
Good heat & moisture resistance
Easy for processing & machining

Application:
Can be processed into high temperatue insulating structural parts installed in a variety of motors and electrical equipmenst, or processed into motor slot wedges, standard and non-standard shaped parts

Packaging Detail: Epoxy slot wedge package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.

Delivery Detail: 7-10 working days

FAQ:

(1) Can you give me a discount price?

It is depending on the volume. The larger the volume is, the more discount you can enjoy.

(2) How can I get a sample?

Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.

(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.

Basic information
Product name	Epoxy Fibeglass Insulation Laminate
Item No.	MJ-G10
Brand	MJ
Material	Epoxy resin and Alkali free fiberglass cloth
Grade	Grade B
Technical Performance
Density	≥1.7g/cm 3
Sheets Thickness	0.1-50mm
Size	≥1220x980mm
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥200'
Water absorption	≤6.5mg
Flexural strength perpendicular to lamination	≥473 Mpa
Impact strength parallel to laminations (Charpy)	≥45.3 KJ/m 2
laminations (Charpy)                   Dielectric strength perpendicular to laminations (in 90±2°C transformer oil,1mm in thickness)	≥10.7 MV/m
Breakdown voltage parallel to laminations (in 90±2°C transformer oil)	≥40 KV
Insulation resistance after impregnated in water	1.5*10 13 Ω
Dielectric constant (1MHz)	5.14
Combustibility	HB Class
Reference Standard	GB/T1303.1-1998
