G10 Multi Colors Sheet for Pocket Knife Handle

Name: G10 Multi Colors Sheet for Pocket Knife Handle
Brand: all-electronics-online.com
SKU: 735299625
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	US $ 9.5kilogram
Trade Terms:	FOB,CFR,CIF
Min Order:	250kilogram
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Colored G10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	9151220mm; 10201220mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	10KV~20KV
Color:	Black, White, Red, Yellow, Blue, Orange, Green
Brand:	Nova

Product Description

Descriptions:

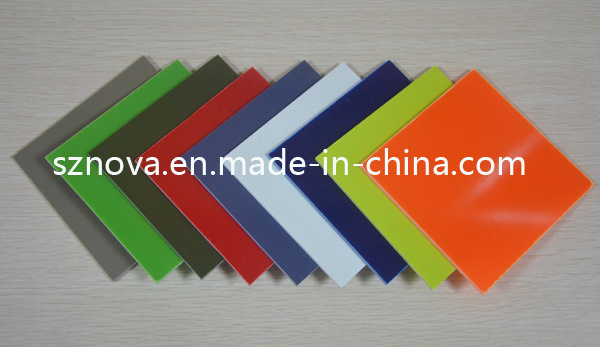

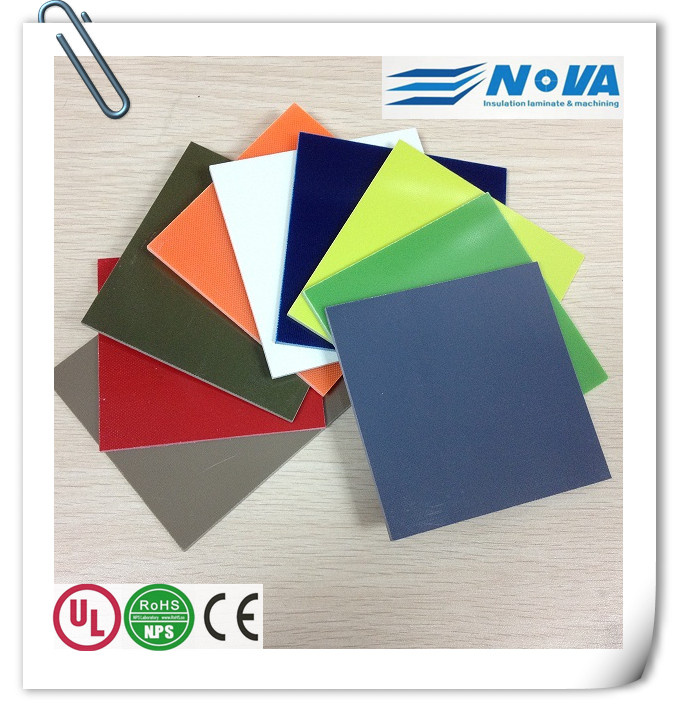

Colored fiberglass sheets made from layers of fiberglass and epoxy resin pressed together under enormous pressure and heat. We produce these in both solid colors and multicolor layering.

Applications:
This material is very light but also very strong and stable. Can be cut, shaped, drilled, taped, machine and polished with ordinary tools.Our Colored G10 has high flexural & impact strength, good machining quality, and bright color.Especially be suitable for Surfboard fins, Knife handle, and other sport appliances.

Specifications:
1) Grade: G10
2) Usual Colors: Black, White, Red, Yellow, Blue, Orange, Olive Green, Gray, Brown, etc.
3) Thickness Range: 0.5mm to 50mm
4) Sheet Size: 915*1220mm; 1020*1220mm
5) Min. Order Quantity: 250 kgs in a lot

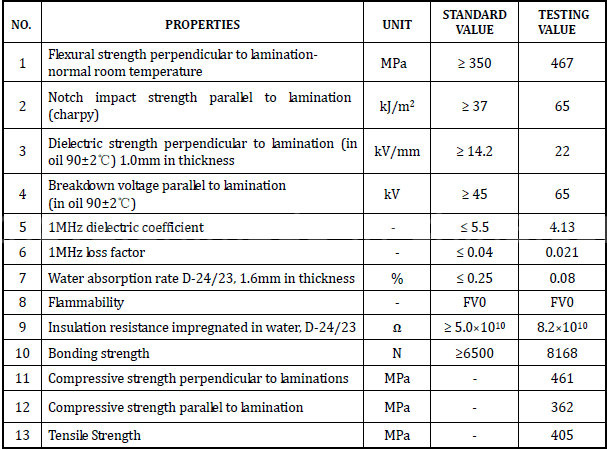

Technical Performance

About Us:

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

We can serve you not only customize the G10/FR4 Epoxy glass fabric laminated sheet products for you, but also very experienced design concept, strong program management system, well trained employees for Epoxy glass fabric making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.

FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
  A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
  A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
  A:It depends on quantity,the larger quantity is,the more discount you can get.

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
