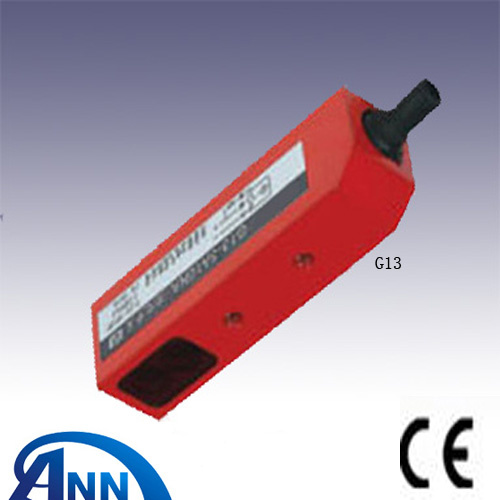

G13 Photoelectric Sensor Switch

Name: G13 Photoelectric Sensor Switch
Brand: all-electronics-online.com
SKU: 792955675
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	G13
Detect Distance:	50-800mm
Output Type:	1 Switch Output E5
Shell Material:	Metal
Working Environment Temperature:	-25c-75c

Product Description

G15 Photoelectric sensor switch

Model explanation of Photoelectric Sensor

1. G: Photoelectric sensor
2. Sub code No.(18, 50, 76.....)
3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)

Technical Parameters:

Structural category				Photoelectric switch
Outward appearance code				G13
Diffuse type	Detection distance			10cm
	10- 30 VDC	NPN	NO	G13-3A10NA
			NC	G13-3A10NB
			NO+NC
		PNP	NO	G13-3A10PA
			NC	G13-3A10PB
			NO+NC
	90~ 250 VAC	SCR Controllable silicon	NO
			NC
		Relay output
Retroreflictive	Detection distance			1m
	10- 30 VDC	NPN	NO	G13-3B1NA
			NC	G13-3B1NB
			NO+NC
		PNP	NO	G13-3B1PA
			NC	G13-3B1PB
			NO+NC
	90~ 250 VAC	SCR Controllable silicon	NO
			NC
		Relay output
Trough beam	Detection distance			3m
	10- 30 VDC	NPN	NO	G13-3C3NA
			NC	G13-3 C3NB
			NO+NC
		PNP	NO	G13-3C3PA
			NC	G13-3C3PB
			NO+NC
	90~ 250 VAC	SCR Controllable silicon	NO
			NC
		Relay output
DC/AC/Control output				DC:200mA
DC/AC Consumption current				DC<15 mA
DC/AC Response time				DC<2ms
Directional angel				3°-10°
Detected object				transparent or opaque body
Working environment temperature				-25 °c~+55°c
Intensity of illumination working environment				Sunlight under 10000LX incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54

1.Detection distance: 10cm (diffuse type)

1m (retroreflective type)

3m (trough beam type)

2.DC/AC/Control output: DC:200mA

3.DC/AC Consumption current: DC:<15mA

4.DC/AC Response time: DC<2mS

5.Directional angle: 3~10 degree

6.Detected object: transparent or opaque body

7.Working environment temperature: -25~+55 C

8.Intensity of illumination of working environment: no more than 10000LX in sunlight and 3000LX under incandescent lamp

9.Shell material: Metal

10.Protection grade: IP54
