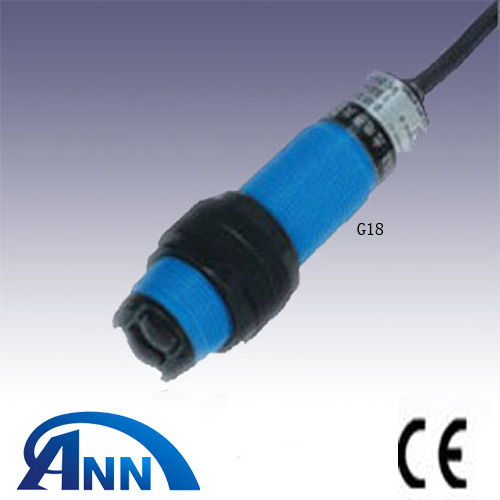

G18 NPN PNP No Nc AC DC IP67 Waterproof Plastic Diffuse Infrared Photoelectric Sensor Switch

Name: G18 NPN PNP No Nc AC DC IP67 Waterproof Plastic Diffuse Infrared Photoelectric Sensor Switch
Brand: all-electronics-online.com
SKU: 792956915
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	G18
Detect Distance:	50-800mm
Output Type:	1 Switch Output E5
Shell Material:	Metal
Working Environment Temperature:	-25c-75c

Product Description

G15 Photoelectric sensor switch

Model explanation of Photoelectric Sensor

1. G: Photoelectric sensor
2. Sub code No.(18, 50, 76.....)
3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)

Technical Parameters:

Model NO.	Detection distance	Working voltage	Output		Detection way
Model NO.	Detection distance	Working voltage	Form	State	Detection way
G18 -3A 10NA	10cm	DC10-30V	NPN	NO	Diffuse type
G18 -3A 10NB	10cm	DC10-30V	NPN	NC	Diffuse type
G18 -3A 10NC	10cm	DC10-30V	NPN	NO+NC	Diffuse type
G18 -3A 10PA	10cm	DC10-30V	PNP	NO	Diffuse type
G18 -3A 10PB	10cm	DC10-30V	PNP	NO	Diffuse type
G18 -3A 10PC	10cm	DC10-30V	PNP	NO+NC	Diffuse type
G18 -2A 10LA	10cm	AC90-250V	SCR Control lable silicon	NO	Diffuse type
G18 -2A 10LB	10cm	AC90-250V	SCR Control lable silicon	NC	Diffuse type
G18-3B2NA	2m	DC10-30V	NPN	NO	Retroreflective
G18-3B2NB	2m	DC10-30V	NPN	NC	Retroreflective
G18-3B2NC	2m	DC10-30V	NPN	NO+NC	Retroreflective
G18-3B2PA	2m	DC10-30V	PNP	NO	Retroreflective
G18-3B2PB	2m	DC10-30V	PNP	NC	Retroreflective
G18-3B2PC	2m	DC10-30V	PNP	NO+NC	Retroreflective
G18-2B2LA	2m	AC90-250V	SCR Control lable silicon	NO	Retroreflective
G18-2B 2LB	2m	AC90-250V	SCR Control lable silicon	NC	Retroreflective
G18 -3C 5NA	5m	DC10-30V	NPN	NO	Through beam
G18 -3C 5NB	5m	DC10-30V	NPN	NC	Through beam
G18 -3C 5NC	5m	DC10-30V	NPN	NO+NC	Through beam
G18 -3C 5PA	5m	DC10-30V	PNP	NO	Through beam
G18 -3C 5PB	5m	DC10-30V	PNP	NC	Through beam
G18 -3C 5PC	5m	DC10-30V	PNP	NO+NC	Through beam
G18 -2C 5LA	5m	AC90-250V	SCR Control lable silicon	NO	Through beam
G18 -2C 5LB	5m	AC90-250V	SCR Control lable silicon	NC	Through beam

Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.

Our product range specified as following:

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.

Low voltage electrical products range including: Circuit Breaker, Contactors, Fuses, Relays, Push Button& Indicator Lamps, Switches, Power Supply, Distribution Box, Industrial Sockets& Plug, Terminals, Warning light, Electrical Accessories, Electric Power Fitting, Hardware & Tools, Construction Electrical, Lamps & Lighting, Meters & Instruments.

Quality is our life, all our products produce according to the international standard like IEC60898, IEC947-2. Most of our products have got ISO9001, CCC, CE certificates and some of our products have also passed CB, GS, KEMA, UL, VDE certificates. We have won high reputation for its good quality, accurate shipments and reasonable price.

We sincerely welcome customers to cooperate with us on basis of quality and mutual benefit. If you are interested in our 'products, please don't hesitate to contact with us, we will supply quick & satisfied reply.
