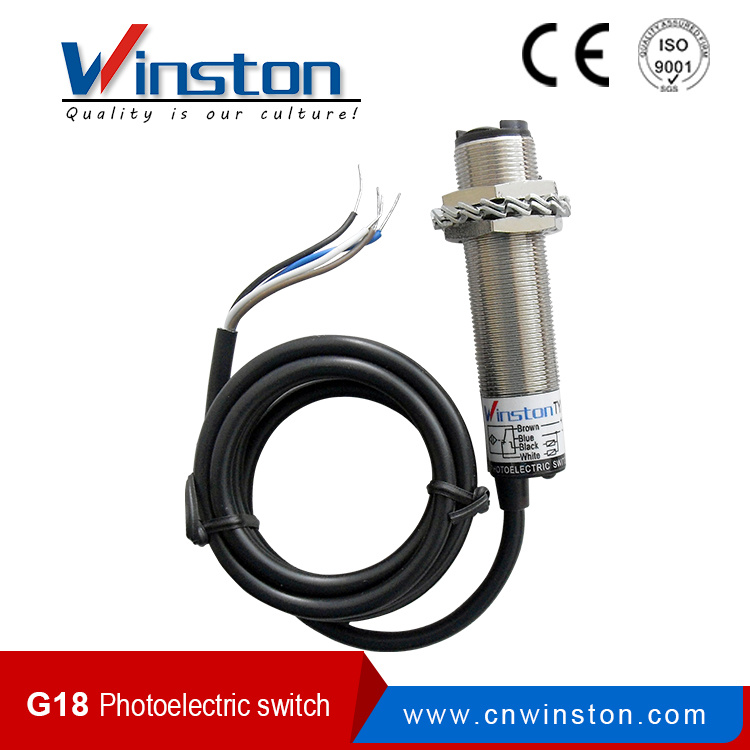

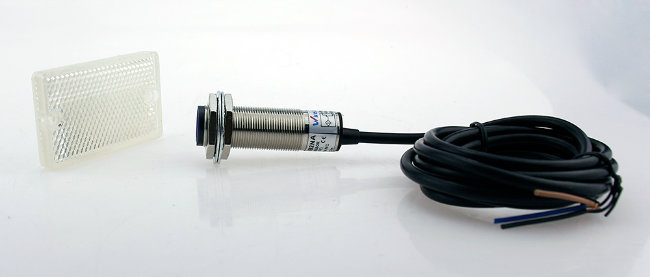

G18 Through-Beam Type Photo Cell Proximity Sensor
| Price: |
US $ 7.09-8.67/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
G18 |
| DC/SCR Control Output: |
DC:200mA |
| Detected Object: |
Transparent or Opaque Body |
| Diffuse: |
10-30cm |
| Retroreflective: |
2m |
| Trough Beam: |
5m |
| Type: |
Through-Beam Type |
| IP Rating: |
IP54 |
Product Description
Product Description:

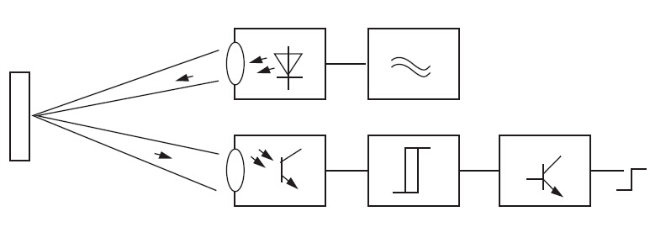

The working principle of the photoelectric switch is that when the beam
emitted by the emitter is blocked or partly reflected by the object, the
beam receiver whereby makes a judgment and reacts. |
Technique parameter:
1. G: Photoelectric sensor
2. Sub code No. (18, 50, 76...)
3. Operating voltage(2: 90-250VAC; 3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
| Diffuse type | Detection distance | 10-30cm |
| 10-30VDC | NPN | NO | G18-3A10NA |
| NC | G18-3A10NB |
| NO+NC | G18-3A10NC |
| PNP | NO | G18-3A10PA |
| 90-250VAC | NC | G18-3A10PB |
| NO+NC | G18-3A10PC |
| SCR Contro Hable silicon | NO | G18-2A10LA |
| NC | G18-2A10LB |
| Relay output | |
| Retroreflective type | Detection distance | 2m |
| 10-30VDC | NPN | NO | G18-3B2NA |
| NC | G18-3B2NB |
| NO+NC | G18-3B2NC |
| PNP | NO | G18-3B2PA |
| 90-250VAC | NC | G18-3B2PB |
| NO+NC | G18-3B2PC |
| SCR Contro Hable silicon | NO | G18-2B2LA |
| NC | G18-2B2LB |
| Relay output | |
| Through beam | Detection distance | 5m |
| 10-30VDC | NPN | NO | G18-3C5NA |
| NC | G18-3C5NB |
| NO+NC | G18-3C5NC |
| PNP | NO | G18-3C5PA |
| 90-250VAC | NC | G18-3C5PB |
| NO+NC | G18-3C5PC |
| SCR Contro Hable silicon | NO | G18-2C5LA |
| NC | G18-2C5LB |
| Relay output | |
| DC/SCR Control output | DC:200mA |
| DC/AC Consumption current | DC<15mA,AC<10mA |
| DC/AC Response time | AC/Dc<2ms |
| Directional angle | 3 . -10 . |
| Detected object | transparent or opaque body |
| Working environment temperature | 25~+55ºC |
| Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX |
| Shell material | Plastic |
| Protection grade | IP54 |

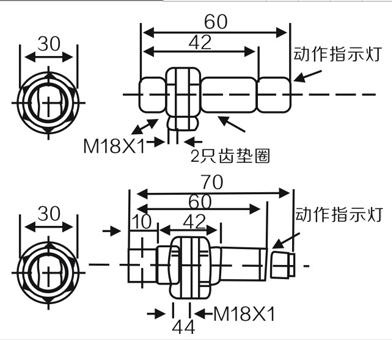

OVERALL DIMENSIONS

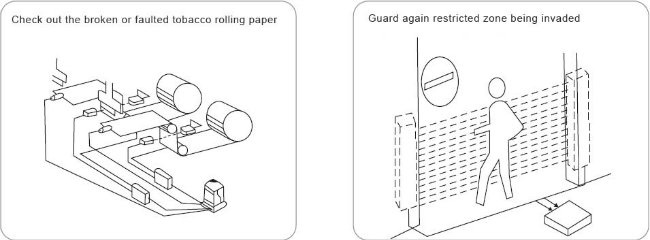

Application illustration of photoelectric switch
