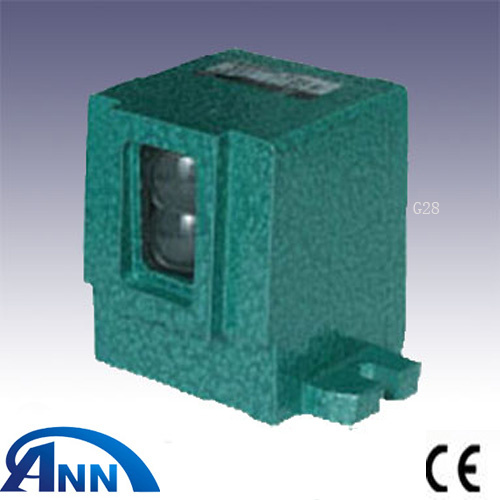

G28 Photoelectric Switch Sensor

Name: G28 Photoelectric Switch Sensor
Brand: all-electronics-online.com
SKU: 792961035
Availability: InStock
Rating: 4.7 (131 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	G28
Detect Distance:	50-800mm
Output Type:	1 Switch Output E5
Shell Material:	Metal
Working Environment Temperature:	-25c-75c

Product Description

G15 Photoelectric sensor switch

Model explanation of Photoelectric Sensor

1. G: Photoelectric sensor
2. Sub code No.(18, 50, 76.....)
3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)

Technical Parameters:

Structural category				Photoelectric switch
Outward appearance code				G28
Diffuse type	Detection distance			50cm
	10- 30 VDC	NPN	NO	G28-3A50NA
			NC	G28-3A50NB
			NO+NC	G28-3A50NC
		PNP	NO	G28-3A50PA
			NC	G28-3A50PB
			NO+NC	G28-3A50PC
	90 250 VAC	SCR Controllable silicon	NO	G282A50LA
			NC	G28-2A50LB
		Relay output		G28-2A50JC
Retroreflictive	Detection distance			3m
	10- 30 VDC	NPN	NO	G28-3B3NA
			NC	G28-3B3NB
			NO+NC	G28-3B3NC
		PNP	NO	G28-3B3PA
			NC	G28-3B3PB
			NO+NC	G28-3B3PC
	90 250 VAC	SCR Controllable silicon	NO	G28-2B3LA
			NC	G28-2B3LB
		Relay output		G28-2B3JC
Trough beam	Detection distance			10m
	10- 30 VDC	NPN	NO	G28-3C101NA
			NC	G28-3C101NB
			NO+NC	G28-3C101NC
		PNP	NO	G28-3C101PA
			NC	G28-3C101PB
			NO+NC	G28-3C101PC
	90 250 VAC	SCR Controllable silicon	NO	G28-2C101LA
			NC	G28-2C101LB
		Relay output		G28-2C101JC
DC/AC/Control output				DC:200mA; AC:300mA; Relay2A
DC/AC Consumption current				DC<15 mA; AC<10 mA
DC/AC Response time				DC<2ms; AC<20ms
Directional angel				3°10°
Detected object				transparent or opaque body
Working environment temperature				-25 +55
Intensity of illumination working environment				Sunlight under 10000LX incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54
