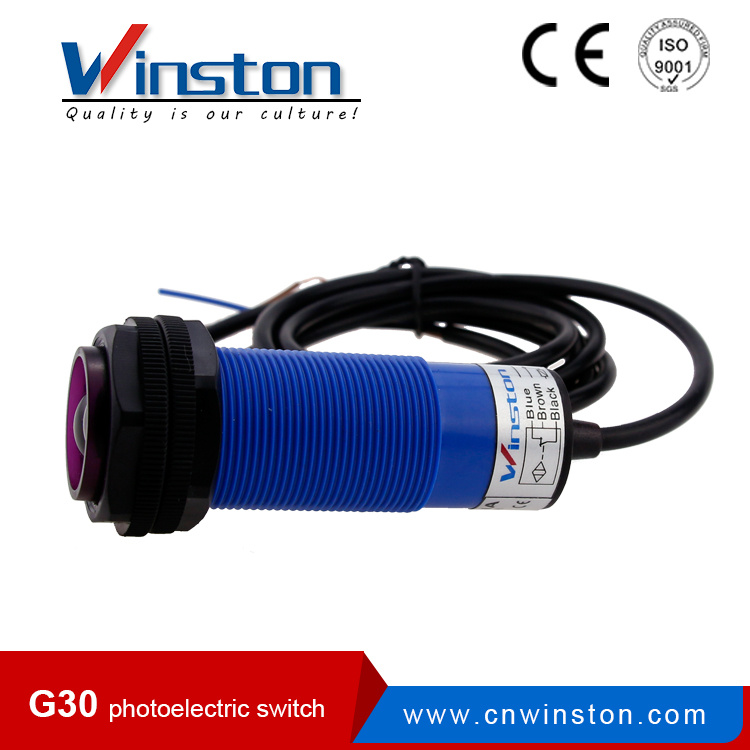

| Prod Model: |
G30 |
| Detected Object: |
Transparent or Opaque Body |
| Shell Material: |
Metal,Plastic |
| Protection Grade: |
IP66 |
| Diffuse: |
20-100cm |
| Retroreflective: |
3-5m |
| Trough Beam: |
10m |
| IP Rating: |
IP66 |
Product Description
Technique parameter:
1. G: Photoelectric sensor
2. Sub code No. (18, 50, 76...)
3. Operating voltage(2: 90-250VAC; 3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
9. Other photoelectric sensor models: G12, G13, G14, G15, G16, G17, G18, G23, G24, G25, G26, G28, G30, G33, G35, G36, G40, G44, G50, G54, G55, G64, G68, G70, G71, G72, G180, G74, G75, G76, G77, G78, G80, G85, G86, G90, G100, G110, G139, G56, G60, G63, G65, G57, E3F, E3JK and so on.
10. More details, please contact us.
| Diffuse type | Detection distance | 20-100cm |
| 10-30VDC | NPN | NO | G30-3A70NA |
| NC | G30-3A70NB |
| NO+NC | G30-3A70NC |
| PNP | NO | G30-3A70PA |
| 90-250VAC | NC | G30-3A70PB |
| NO+NC | G30-3A70PC |
| SCR Contro Hable silicon | NO | G30-2A70LA |
| NC | G30-2A70LB |
| Relay output | G30-2A70JC |
| Retroreflective type | Detection distance | 3m |
| 10-30VDC | NPN | NO | G30-3B3NA |
| NC | G30-3B3NB |
| NO+NC | G30-3B3NC |
| PNP | NO | G30-3B3PA |
| 90-250VAC | NC | G30-3B3PB |
| NO+NC | G30-3B3PC |
| SCR Contro Hable silicon | NO | G30-2B3LA |
| NC | G30-2B3LB |
| Relay output | G30-2B3JC |
| Through beam | Detection distance | 10m |
| 10-30VDC | NPN | NO | G30-3C101NA |
| NC | G30-3C101NB |
| NO+NC | G30-3C101NC |
| PNP | NO | G30-3C101PA |
| 90-250VAC | NC | G30-3C101PB |
| NO+NC | G30-3C101PC |
| SCR Contro Hable silicon | NO | G30-2C101LA |
| NC | G30-2C101LB |
| Relay output | G30-2C101JC |
| DC/SCR Control output | DC:200mA |
| DC/AC Consumption current | DC<15mA,AC<10mA |
| DC/AC Response time | AC/Dc<2ms |
| Directional angle | 3 . -10 . |
| Detected object | transparent or opaque body |
| Working environment temperature | 25~+55ºC |
| Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX |
| Shell material | Metal,Plastic |
| Protection grade | IP66 |

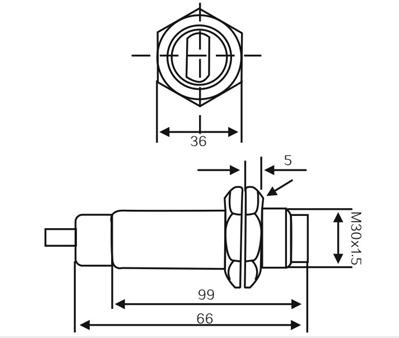

OVERALL DIMENSIONS
Application illustration of photoelectric switchDetection of thick carton.
Detecting if beer is affixed with mark or not.
Product accounting.
Check out the broken strip from carding machine.
Check out the broken or faulted tobacco rolling paper.
Guard again restricted zone being invaded.
