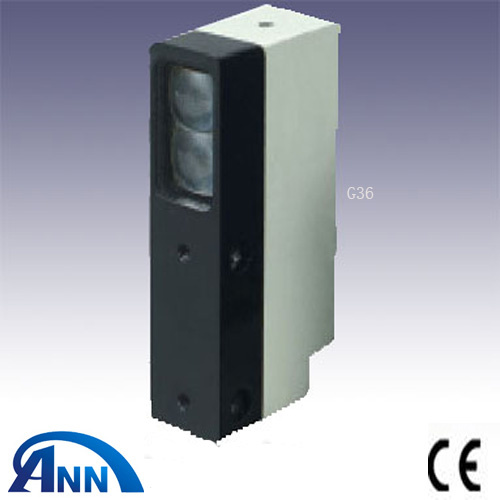

G36 Photoelectric Sensor Switch

Name: G36 Photoelectric Sensor Switch
Brand: all-electronics-online.com
SKU: 792963325
Availability: InStock
Rating: 4.3 (106 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	G36
Detect Distance:	50-800mm
Output Type:	1 Switch Output E5
Shell Material:	Metal
Working Environment Temperature:	-25c-75c

Product Description

G36 Photoelectric sensor switch

Model explanation of Photoelectric Sensor

1. G: Photoelectric sensor
2. Sub code No.(18, 50, 76.....)
3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)

Technical Parameters:

Model NO.	Detection distance	Working voltage	Output		Detection way
Model NO.	Detection distance	Working voltage	Form	State	Detection way
G36 -3A 20NA	20cm	DC10-30V	NPN	NO	Diffuse type
G36 -3A 20NB	20cm	DC10-30V	NPN	NC	Diffuse type
G36 -3A 20NC	20cm	DC10-30V	NPN	NO+NC	Diffuse type
G36 -3A 20PA	20cm	DC10-30V	PNP	NO	Diffuse type
G36 -3A 20PB	20cm	DC10-30V	PNP	NC	Diffuse type
G36 -3A 20PC	20cm	DC10-30V	PNP	NO+NC	Diffuse type
G36-3B2NA	2m	DC10-30V	NPN	NO	Retroreflective
G36-3B2NB	2m	DC10-30V	NPN	NC	Retroreflective
G36-3B2NC	2m	Diffuse type	NPN	NO+NC	Retroreflective
G36-3B2PA	2m	DC10-30V	PNP	NO	Retroreflective
G36-3B2PB	2m	DC10-30V	PNP	NC	Retroreflective
G36-3B2PC	2m	DC10-30V	PNP	NO+NC	Retroreflective
G36 -3C 5NA	5m	DC10-30V	NPN	NO	Through beam
G36 -3C 5NB	5m	DC10-30V	NPN	NC	Through beam
G36 -3C 5NC	5m	DC10-30V	NPN	NO+NC	Through beam
G36 -3C 5PA	5m	DC10-30V	PNP	NO	Through beam
G36 -3C 5PB	5m	DC10-30V	PNP	NC	Through beam
G36 -3C 5PC	5m	DC10-30V	PNP	NO+NC	Through beam
