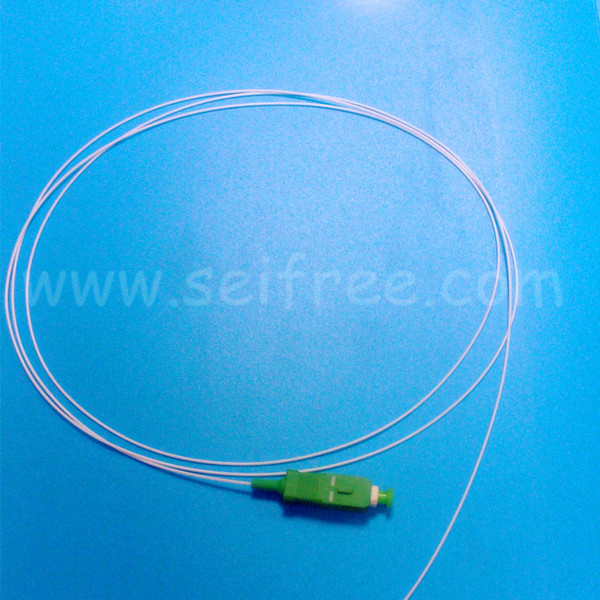

G652D Sc/APC Pigtail Fiber Optic Patch Cable

Name: G652D Sc/APC Pigtail Fiber Optic Patch Cable
Brand: all-electronics-online.com
SKU: 699658122
Availability: InStock
Rating: 4.5 (42 reviews)

Price:	US $ 0.5-1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOFC-1-SA-0-D-09-0-C-15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D
Connector Type:	Sc/APC (One Connector)
Cable:	1 Fiber
Jacket Type:	PVC
Pigtail Diameter:	0.9mm
Length:	150cm
Wiring Devices:	ODF
Condition:	New
Certification:	RoHS, ISO

Product Description

Description
Optical Jumper Wires are important parts of optic network. They have same or different type connector which is installed on the end of fiber optic cable.

Applications Features
Optical Network Wiring                                                                            Low Excess Loss
Test Equipment                                                                                        High Return Loss

Ordering Information
SOFC-       -       -       -       -       -       -       -

Cable	First End	Second End	Fiber Type	Pigtail Dia.(mm)	Fan Out Length	Jacket Type	Length
1=1Fiber	FU(A)=FC/UPC(APC)	FU(A)=FC/UPC(APC)	H=Hi 780	09=Φ0.9	05=50cm	E=PE	05=50cm
2=2Fiber	SU(A)=SC/UPC(APC)	SU(A)=SC/UPC(APC)	F=Flex 1060	2=Φ2mm	10=100cm	C=PVC	10=100cm
4=4Fiber			D=G652D	3=Φ3mm		H=LSZH
	LU(A)=LC/UPC(APC)	LU(A)=LC/UPC(APC)	A=G657A		20=200cm	A=Armored	20=200cm
R=Ribbon	X=Customization		B=G657B	X=Customization
			B=Bow-type
			OM1=62.5/125
			OM2=50/125
			OM3=50/125
			OM4=50/125

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
