G652D Single Mode Optical Fiber Cable GYXTW for Outdoor Aerial Use

Prod Model:	GYXTW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	GYXTW
Installation Style:	Duct & Burial
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura
Loose Tube Material:	PBT with Jerry
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Color Of Fiber And Loose Tube:	Red,Black,Yellow,Violet,Pink,Aqua
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown,Grey,White,
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001

Product Description

G652D Single Mode Optical Fiber Cable GYXTW for Outdoor Aerial Use

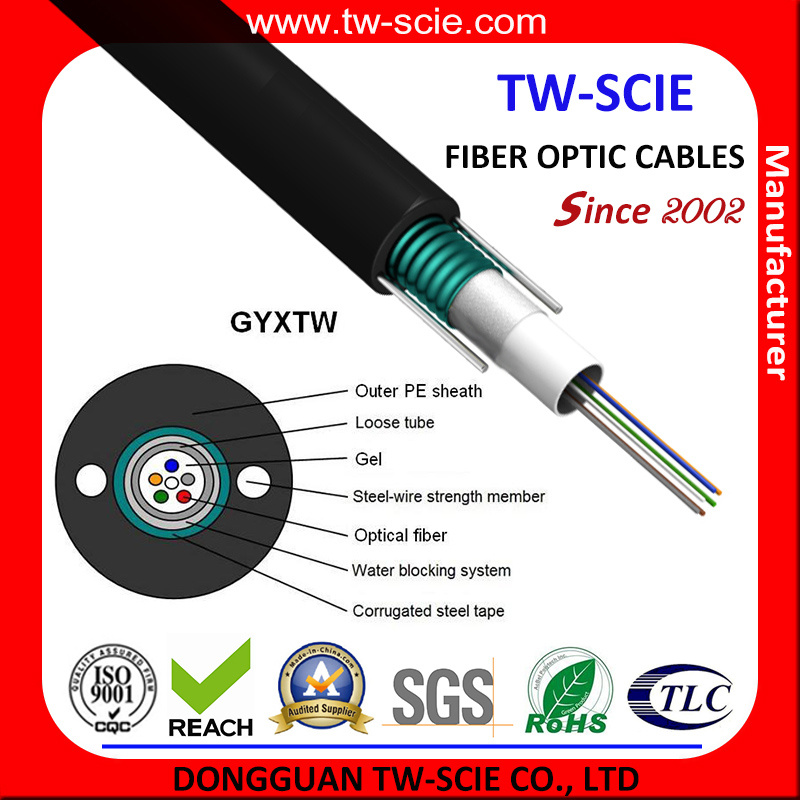

·Description  The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

·Characteristics         · Good mechanical and temperature performance         · High strength loose tube that is hydrolysis resistant         · Special tube filling compound ensure a critical protection of fiber         · Crush resistance and flexibility         · PSP enhancing moisture-proof         · Two parallel steel wires ensure tensile strength         · Small diameter, light weight and friendly installation         · Long delivery length ·Standards         GYXTW cable complies with Standard YD/T 769-2003. ·Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm Attenuation (+20ºC) @850nm     ≤3.0 dB/km ≤3.0 dB/km @1300nm     ≤1.0 dB/km ≤1.0 dB/km @1310nm ≤0.36 dB/km ≤0.40 dB/km     @1550nm ≤0.22 dB/km ≤0.23dB/km     Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km @1300nm     ≥1000 MHz·km ≥600 MHz·km Numerical Aperture     0.200±0.015NA 0.275±0.015NA Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

·Technical Parameters

Cable Type Fiber Count Cable Diameter mm Cable Weight kg/km Tensile Strength   Long/Short Term N Crush Resistance   Long/Short Term N/100mm Bending Radius   Static /Dynamic mm GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D GYXS/GY XTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D GYXS/GY XTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D GYXS/GY XTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D GYXS/GY XTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC

Company Information

Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:
optic cable, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.

optic cable is mostly competitive, contact us now!

Optic Cable Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-12	8.9	90	10 times O.D.	20 times O.D.	1500	600	1000	300
14-24	10.2	110
