| Prod Model: |
Fiber Optical Cable |
| Fiber Range: |
4-24 Cores |
| Cable Diameter: |
7.0-8.0mm |
| Loose Tube Material: |
Fbt |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
Product Description

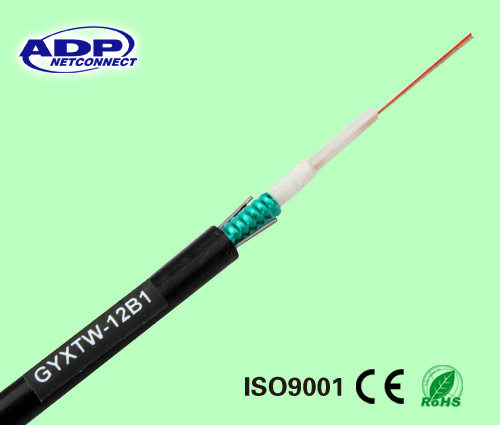

G652D Singlemode 12 Cores GYXTW Fiber Optical Cable

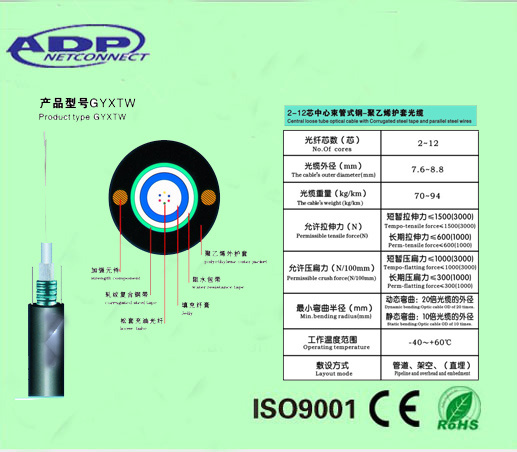

Product's SpecificationThe fibers, 250μ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
Application

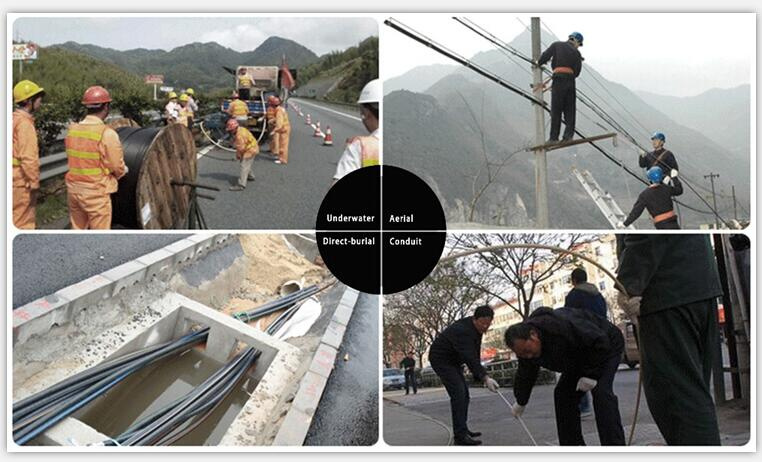

· Adopted to outdoor distribution.
· Suitable for aerial, pipeline laying method.
· Long distance and local area network communication.
Optical Characteristics
| Fiber Sort | Multimode | G.651 | A1a: 50/125 | Graded-index fiber |
| A1b: 62.5/125 |
| Singlemode | G652 (A, B,C) | B1.1: Conventional fiber |
| G.652D | B2: Zero dispersion shifted |
| G.655 | B1.2: Cut-off wavelength shifted |
| G.657 (A1, A2, B3) | B4:Main technical data for positive dispersion shifted single-mode fiber |

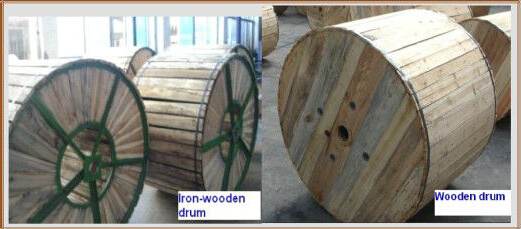

Package:3000 Meters/wooden drum or custmized.
Application· Adopted to outdoor distribution.
· Suitable for aerial, pipeline laying method.
· Long distance and local area network communication.
