Prod Model: |
TK-H0019 |
Warranty: |
5 Years |
Color: |
Customized |
Delivery Time: |
Within 2 to 4 Days |
Insertion Loss: |
<0.2dB |
Return Loss: |
>50dB |
Sample: |
Available |
Fiber Connector Type: |
Sc/LC/St/FC/E2000/Mu |
Fiber Diameter: |
0.9/2.0/3.0mm for Optional |
Fiber Mode: |
Singlemode or Multimode |
Application: |
Communication |
Type: |
Single-mode Fiber |
Connection Structure: |
SC |
Certification: |
ISO9001 |
Sheath Material: |
PVC/LSZH |
Product Description

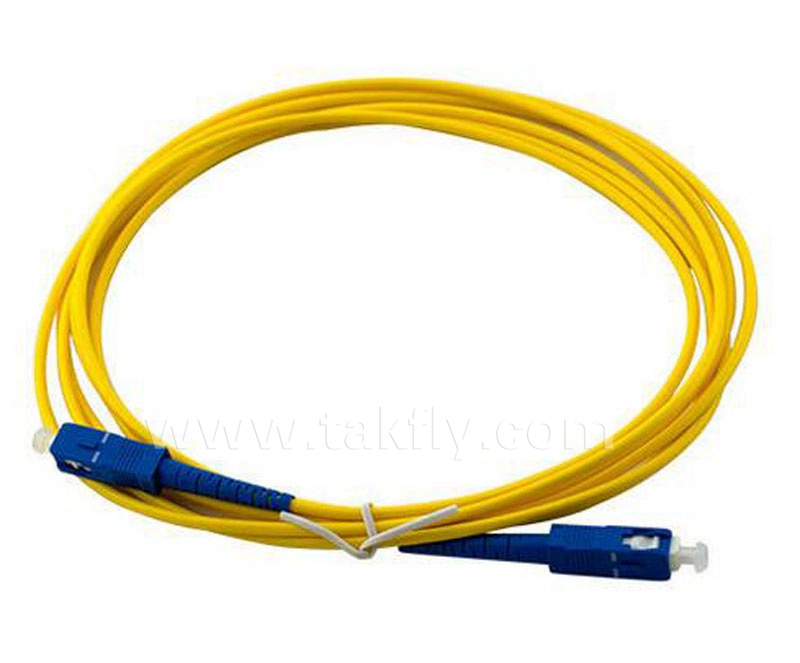

G657. B3 SC/Upc/APC Simplex Fiber Optic Patch Cord
Application:
1. All types of fibre patch cord with different structures
2. High speed optical routes for Fibre-To-The-Home networks (FTTH)
3. Cables with extreme low bending requirements
4. Small-sized optical component
Characteristics:
1. Superior to standard ITU-T G.657.B3 fibre, bending radius down to as small as 5mm and full compatibility with all G.652.D fibres.
2. Low attenuation satisfying the operation demand in O-E-S-C-L band
3. Low microbending loss for highly demanding cable designs including ribbons
4. Accurate geometrical parameters and large MFD which insure low splicing loss and high splicing efficiency High nd value satisfying long service life in minimum bend radius
Specification:
| Characteristics | Conditions | Specified Values | Units | |
| Optical Characteristics | | | | | | | | | | |
| Attenuation | 1310 nm | | ≤0.35 | [dB/km] | |
| | 1383 nm(after H2-aging) | | ≤0.35 | [dB/km] | |
| | 1550 nm | | ≤0.21 | [dB/km] | |
| | 1625 nm | | ≤0.23 | [dB/km] | |
| Attenuation vs. Wavelength | 1285~1330 nm | | ≤0.03 | [dB/km] | |
| Max. α difference | 1525~1575 nm | | ≤0.02 | [dB/km] | |
| | | | | | | | | | |
| Zero dispersion wavelength | | | 1300~1324 | [nm] | |
| | | | | | | | | | |
| Zero dispersion slope | | | ≤0.092 | [ps/(nm2·km)] | |
| PMD | | | | | | | | | | |
| Maximum Individual Fibre | | | ≤0.1 | [ps/ | km] | | |
| Link Design Value (M=20,Q=0.01%) | | | ≤0.06 | [ps/ | km] | | |
| Typical value | | | 0.04 | [ps/ | km] | | |
| Cable cutoff wavelengthλcc | | | ≤1260 | [nm] | |
| Mode field diameter (MFD) | 1310 nm | | 8.4~9.3 | [ | m] | |
| | 1550 nm | | 9.3~10.3 | [ | m] | |
| Effective group index of refraction (Neff) | 1310 nm | | 1.468 | | | | | | | |
| | 1550 nm | | 1.469 | | | | | | | |
| Point discontinuities | 1310 nm | | ≤0.05 | [dB] | |
| | 1550 nm | | ≤0.05 | [dB] | |
| Geometrical Characteristics | | | | | | | | | | |
| Cladding diameter | | | 125.0±0.7 | [ | m] | |
| Cladding non-circularity | | | ≤0.7 | [%] | |
| Coating diameter | | | 245±5 | [ | m] | |
| Coating-cladding concentricity error | | | ≤12.0 | [ | m] | |
| Coating non-circularity | | | ≤6.0 | [%] | |
| Core-cladding concentricity error | | | ≤0.5 | [ | m] | |
| Curl (radius) | | | ≥4 | [m] | |
| Delivery length | | | 2.1 to 50.4 | [km/reel] | |
| Environmental Characteristics | (1310 nm, 1550 nm & 1625 nm) | | | | | | | | |
| Temperature dependence | | | | | | | | | | |
| Induced attenuation at | -60ºC to +85ºC | | ≤0.05 | [dB/km] | |
| Temperature-humidity cycling | | | | | | | | | | |
| Induced attenuation at | -10ºC to +85ºC,98% RH | | ≤0.05 | [dB/km] | |
| Watersoak dependence | | | | | | | | | | |
| Induced attenuation at | 23ºC, for 30 days | | ≤0.05 | [dB/km] | |
| Damp heat dependence | | | | | | | | | | |
| Induced attenuation at | 85ºC and 85% RH,for 30 days | ≤0.05 | [dB/km] | |
| Dry heat aging at | 85ºC, for 30 days | | ≤0.05 | [dB/km] | |
| Mechanical Specification | | | | | | | | | | |
| Proof test | off line | | ≥0.69 | [GPa] | |
| | | | ≥1.0 | [%] | | | | | |
| | | | ≥100 | [kpsi] | |
| Macro-bend induced attenuation | | | | | | | | | | |
| 1 turns around a mandrel of 5 mm radius | 1550 nm | | ≤0.15 | [dB] | |
| 1 turns around a mandrel of 5 mm radius | 1625 nm | | ≤0.45 | [dB] | |
| 1 turn around a mandrel of 7.5 mm radius | 1550 nm | | ≤0.08 | [dB] | |
| 1 turn around a mandrel of 7.5 mm radius | 1625 nm | | ≤0.25 | [dB] | |
| 1 turn around a mandrel of 10 mm radius | 1550 nm | | ≤0.03 | [dB] | |
| 1 turn around a mandrel of 10 mm radius | 1625 nm | | ≤0.1 | [dB] | |
| Coating strip force | average torce (typical) | | 1.5 | [N] | |
| | peak force | | ≥1.3 ≤8.9 | [N] | |
| Dynamic stress corrosion susceptibility parameter nd(typical) | | 27 | | | | | | | |
| | | | | | | | | | | |
Thanks for refer our products, any further question please feel free to contact me.
Looking forward to hearing from you!
