| Prod Model: |
DS-001 |
| Main Frame: |
Hot-Sipped Galvanized Tube |
| Shading System: |
Inside and Outside Shading System |
| Ventilation System: |
Roof Vent or Wall Vent |
| Dead Load: |
15kg/M2 |
| Maximum Rainfall: |
140mm/H |
| Thickness: |
80/100/150/200mic Single/Double Film |
| Structure Type: |
Dome |
| Heating System: |
Furnace with Heating Fans |
| Controlling System: |
Aotomatic Controlling Box |
| Transport Package4 Hectares Per Month: |
Shipped in 30 Days |
| Type: |
Production Greenhouse |
| Size: |
Large |
| Cover Material: |
Film |
| Layer: |
Double |

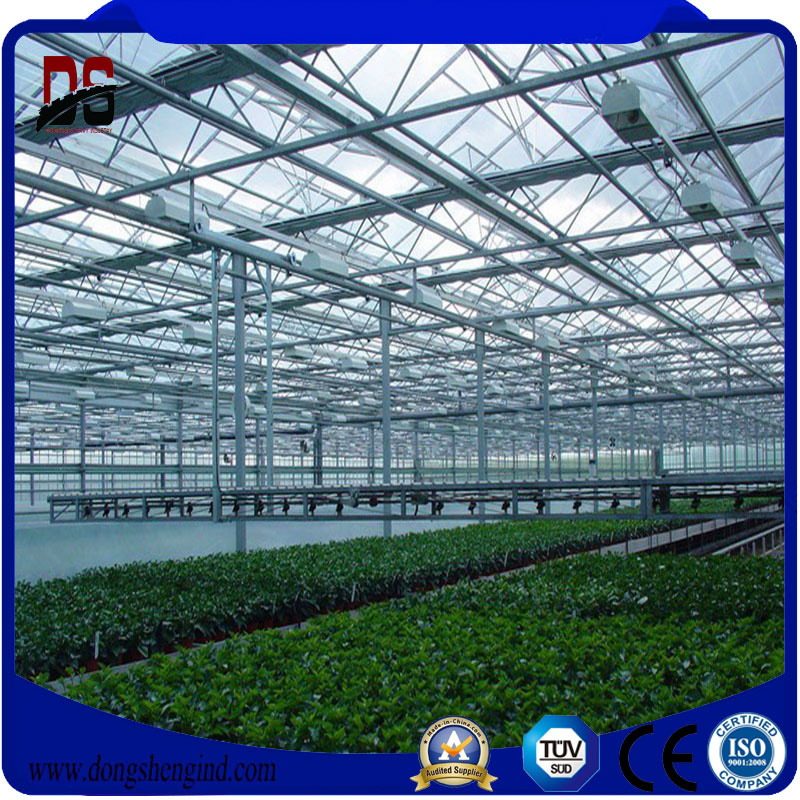

Product Description
Galvanized Steel Structure Glass Cover Used Commercial Greenhouses
1.Product Description1. Brief Introduction
The plastic film multi-span greenhouse, bringing about fabulous social or economic benefits, is a kind of
simple and practical equipment for cultivation or breeding, easy to construct, convenient to use and low
cost, applied widely on the cultivation of vegetables, fruits, flowers and breeding of aquatic products and
poultry as well as scientific experiences all around the world with the development of plasticfilm industry.
It is able to provide the conditions of suitable illumination, moisture and temperature, raising the output
and resisting the natural disasters. It is also able to bring forward or backward the provision, remitting
the contradictions of provision and demand.
2. Structure and Configuration
The skeleton is equipped with the thin steel tubes linked with the appropriate connectors.
The section of the upright is circular, rectangular and U-shaped. About the roof,
the framework is arched or inverted-V-shaped, accessible to be equipped with
the suitable gutters. All of the mental material, many types, is two-side hot-galvanized,
rust-resisting, standard and originally produced.
The facilities that are fitted for it can be the film-reeling ventilation system or the roof row-rack
ventilation system and the A-type rack-pinion screening system as well as the side
cooling pad ventilation system.
The greenhouse can also be equipped with some facilities such as fans and furnaces,etc.
The covering material is the plastic film, thickness of 0.08mm-0.15mm, PE or EVA,
colorless and semi-transparent.
The main body can be in service for more than 10 years.
3.Technical Parameter
| Agriculture Plastic Film Green house for planting |
| Span | 6.0~12.0m(customization) |
| Covering | PEFilm |
| Wind load | 0.40KN/m2 |
| Snow load | 0.25KN/m2 |
| Dead load | 15KG/m2 |
| Maximum rainfall | 140mm/h |
| Hanging load | 14.0kg/m2 |
| Electrical parameters | 220/380V,50HZ |
| Specification and dimension |
| Structure | The south and north sides of Greenhouse are gables, the east and west sides are side walls. |
| Span | 6.0~12.0m(customization) | L*W | Customization |
| Column space | 4.0m | Around the dado height | 0.5m |
| Shoulder height | 3.0m | Ridge height | 5.0m |
4,Greenhouse Application

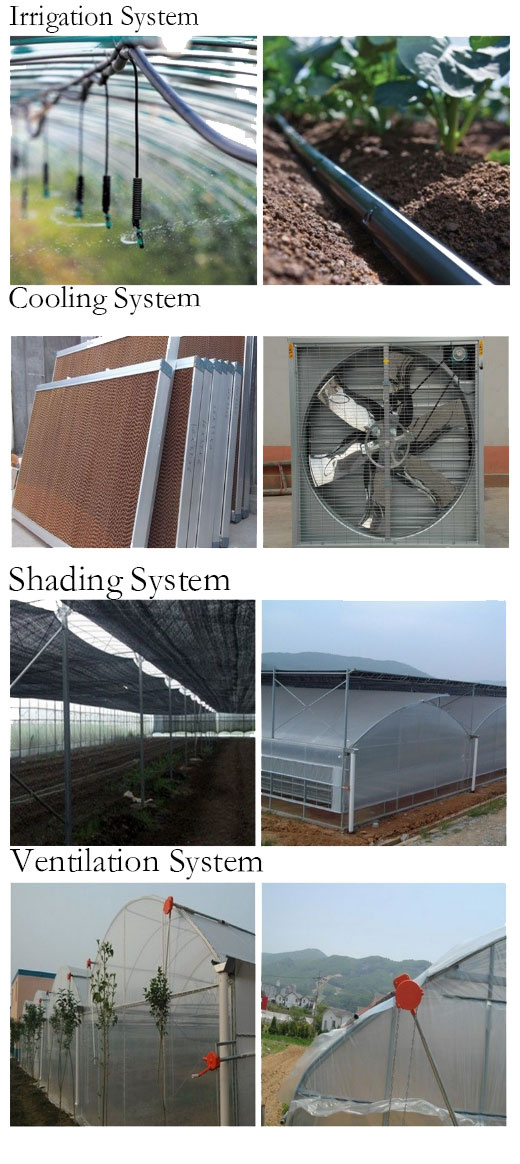

5.Greenhouse System

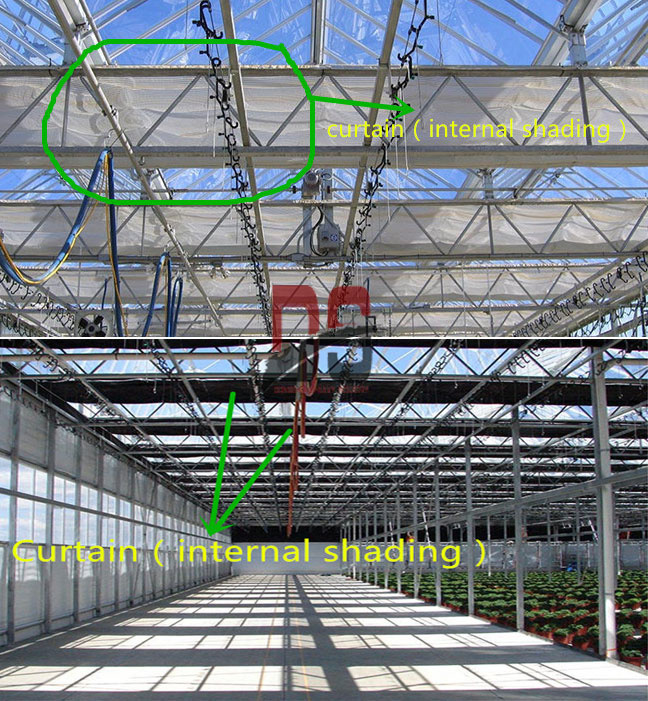

6.Greenhouse Details

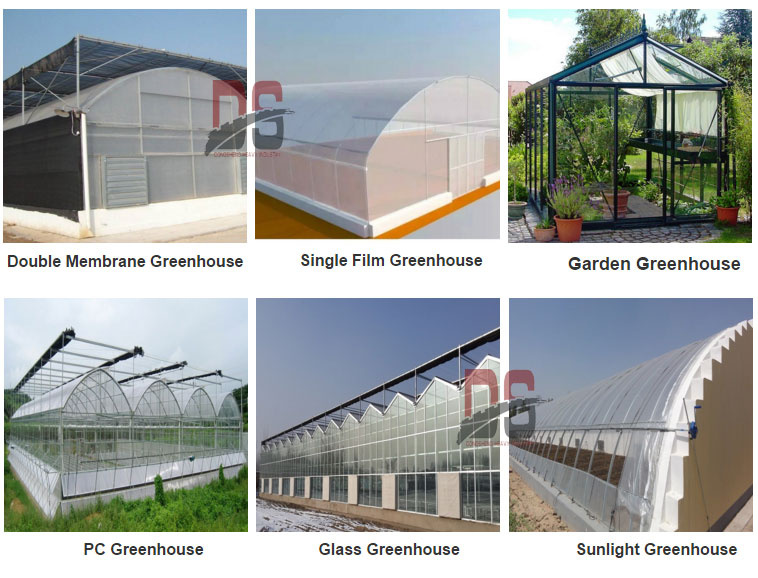

7.Other Products
a. PC sheet greenhouse
b. Plastic film greenhouse
c. Single span film greenhouse
d. Greenhouse system
8.Our service
1. Based on the client's requirements.
2. After-sales installation and debugging.
3.Warranty period of at least 5 years.
4.High quality products, professional and technical team,best service.

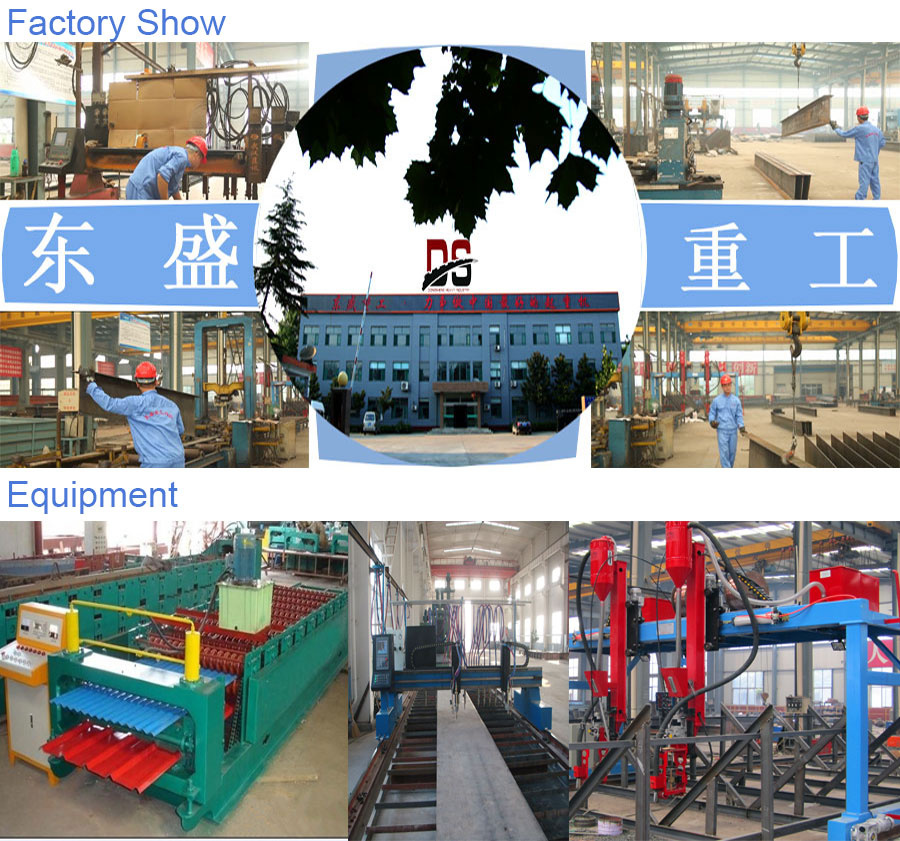

9.Company Introduction
Shandong Dongsheng Heavy Industry Technology Co., Ltd is a large companyspecialized in designing, manufacturing,
selling, and installing various Overhead CranesGantry Cranes, Steel Structure Warehouses, Steel Structure Workshops,
Steel Structure Frames Building and Industrial Fabrication.
The company was first established in the year of 2000 and has passed ISO9001:2008 Quality System Certificate.
Now it covers an area of 30,000 square meters and has 175 employees with more than 50 experienced senior engineers.
The company focuses on Technical Innovation, R &D on New Products, and Production Efficiency Improvement.
For the Cranes, from complex custom equipment to standard equipment, Dongsheng can meet all your material handling needs.
For the Steel Structures, Dongsheng offers custom-engineered solutions, services and technical consulting
and we deliver the quality products you need, when and where you need them.
