| Prod Model: |
VT310N |
| Free Tracking Platform: |
Yes |
| GPS Chip: |
U-Blox 7 |
| Memory: |
4MB Data Logger |
| Wiretapping: |
Support |
| Backup Battery: |
950 mAh |
| Fuel Monitoring: |
Detect Dual Fuel Consumption |
| Two Way Location: |
GPS + Lbs Mode |
| Input Voltage: |
9 ~ 36 VDC |
| Over Speed Alarm: |
Support |
| Temperature Sensor: |
Support |
Product Description
Gapless GSM Locator Vehicle GPS Tracker with Free Tracking Software(2 years warranty, One time payment, Free Tracking Platfrom (PC base & Android), CE & RoHS & SGS certification, GPS tracker manufacturer)
We have developed TWO-WAY location into GPS tracker, from now, we can achieve GPS trackers are tracking inside the building/ tunnel/ subway etc..... that's mean we can track the car when lost GPS signal or GPS antenna was damaged or GPS was jammed etc.
The other biggest improvement is cool start the device, it can be very fast locate in 15s and traditional cool start will take 30s to 180s to finish the locate on map.
1. Product Overview

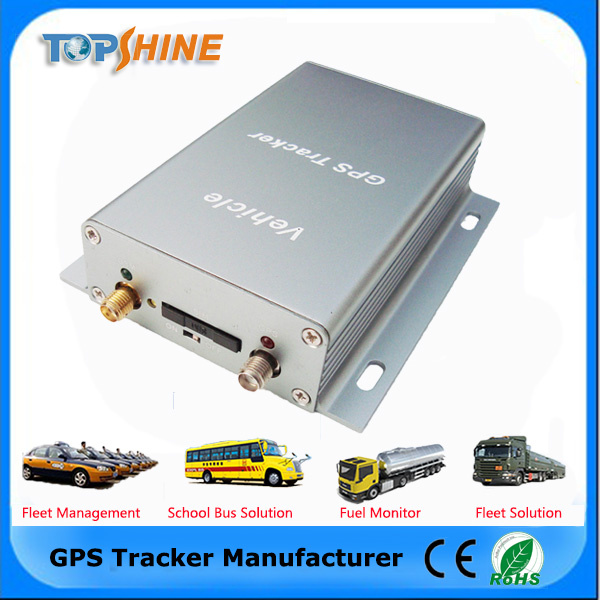

VT310N is a professional level GPS vehicle tracker focus on positioning and vehicle security. It can support detecting engine off/on, controlling door/windows/engine, can equip fuel consumption detection, temperature detection, geo-fencing, SOS alert, over speed alert, It has abundant ports for additional applications and tracking solutions especially suitable for fleet management.
2. Functions & Features
* Two way location
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening (optional)
* Get location physical name via SMS & from the web-platform
* Door open/close status detecting
* Door open/close control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signal
* I/O: 5 Inputs, 5 Outputs, 2 Analog Inputs.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Accident alarm (need crash sensor support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, (optional)
3. Application
- Vehicle Tracking & Security
- Fleet Management
- Equipment Security
- Asset

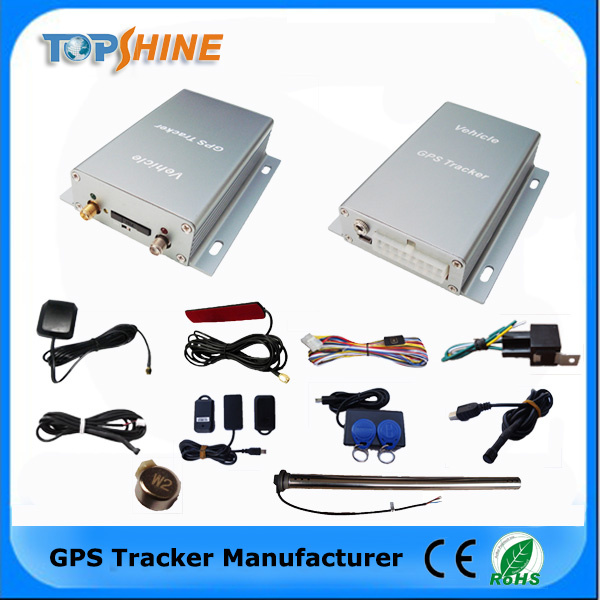

4. Complete Set| Standard Accessories |
| Main unit | GSM antenna |
| Wiring | GPS antenna |
| SOS button | Relay |
| Optional Accessories |
| Ultrasonic fuel sensor | Temperature sensor |
| Cuttable fuel sensor | Microphone |
| Crash sensor | USB cable |
5. Specifications | Items | Specifications | Items | Specifications |
| Dimension | 117*85*26mm | Weight | 185g |
| Input voltage | DC 9V~36V/1.5A | Back-up Battery | 950mAh/3.7V |
| Power Consumption | 65mA standby current | Memory | 4M Byte |
| Sensor | Motion sensor | GPS Sensitivity | -159dB |
| Positioning Accuracy | 10meters, 2D RMS | GPS Chip | U-blox 7 |
| GSM Frequency | GSM 850/900/1800/1900MHz | Battery Work Time | 43 hours in power-saving mode and 10 hours in nomal mode |

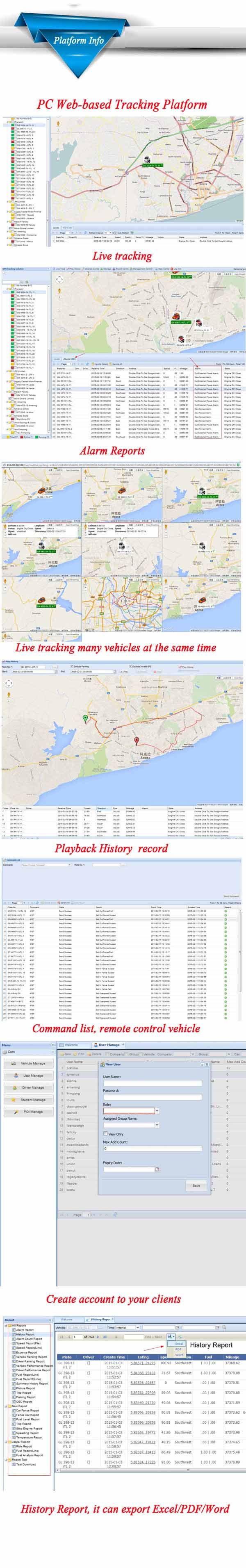

6. Topshine GPRS01 tracking platform* Tracking platform with API
* More stable & easy expansion
* Flexible configuration menus and assign power for certain user
* Icon can show 8 direction
* Events reminder ( maintainance alert, expired alert, odometer alert etc )
* Cell phones scan the QR code to download APP
* Directly manage Nevigate, Live Track and take photos
* Show GEO-fence and POI in the main track
* Flashing icon to show alarm status
* Provide customer demand for customization
Topshine company provide free tracking platform (web based and mobile APP)
link: www.track-car.com
Mobile link: www.track-car.com/m
User: test1
Pass: 123
7. Our services- Any inquiries will be replied within 12 hours on workday
- Professional manuafacurer and wholesaler for 8 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idear
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- You can pay for the order via: T/T , Western Union, money gram and Paypal
FAQ
Q: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
2. Charge the tracker.
Q: No response to SMS command
A: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.
Q: Why there is a "Last" appearing in a positon report SMS?
A: There is no GPS signal. Please take the tracker to somewhere open area.
Q: How to use tracking platform?
A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W,010,ID
(2) Set APN: W,011,APN name
(3) Set IP and Port: W,012,210.209.68,9600
(4) Enable GPRS: W,013,1
(5) Set report time interval: W,0.14,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle Manage
Q: How to connect Relay to cut off engine?
A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
