Gas Pressure Switch for PS-La15

Name: Gas Pressure Switch for PS-La15
Brand: all-electronics-online.com
SKU: 673093291
Availability: InStock
Rating: 4.6 (72 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-LA15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Switching Circuits:	Spdt, Spst-No, Spst-Nc
Sampling Medium:	Air, Water or Compatible Fluids
Overpressure Rating:	1.2MPa
Ambient Temperature Range:	-25 + 85
Approvals:	Ce, CQC
Type:	Electronic
Application:	Vehicles
Explosion-proof Type:	Non Explosion-proof
Contact:	Normally Open

Product Description

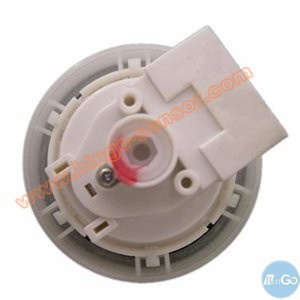

Low Pressure Switch PS-LA15

Introduction

The Low Pressure Switch PS-LA15 offers the same proven compression spring and precision snap action electrical switch as the other popular and widely used pressure switches.
The Low Pressure Switch PS-LA15 is designed specifically to variable applications
With wide adjusting set point from 5kPa to 100kPa, as well as to hold tight set point
Tolerances throughout a wide temperature range.

Specification

SPDT, SPST electrical loads:	5A @ 125/250 VAC
	10A @ 125/250 VAC
	16A @ 125/250 VAC
Switching circuits	SPDT, SPST-NO, SPST-NC
Electrical terminals:	#187 (3/16") 4.8x0.5 mm quick connect
Electrical terminals:	#250 (1/4") 6.3x0.8 mm quick connect
Set points Tolerance:	+/-5% ~ +/-10% of set point.
Overpressure rating:	1.2MPa
Ambient temperature range	-25 + 85
Sampling line connector:	1/8" NPT or 1/4" NPT male connectors; other,other types of connector on customer demands.
Sampling Medium	Air, water or compatible fluids
Dimensions	For typical dimensions
Mounting Orientation	Diaphragm must be vertical (Horizontal optional).
Materials:	Diaphragm: Post-cured silicone, RTI>150 deg C.
	Pressure housing: Thermo-plastics with RTI>130
	Snap action switch housing: Thermo-plastics with RTI>120 deg C, UL94 V-0.
Product Life:	Mechanical: 200,000 cycles.
Product Life:	Electrical: 100,000 cycles.
Approvals	CE, CQC
