Gas Thermostat in Valves/Thermostat in Celsius

Gas Thermostat in Valves/Thermostat in Celsius
Price: Negotiable/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: HX02
Type: Other Home Appliance Parts

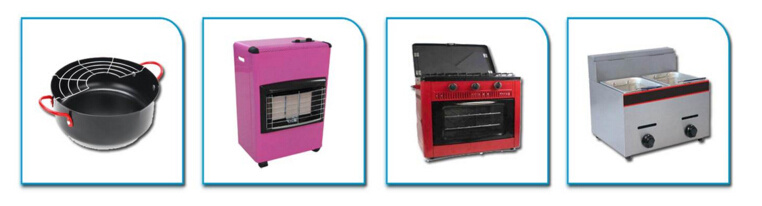

Application: Heaters, Water Heaters, Fireplace, Fried Furnace
Applicable: Gas Ng/LPG/Propanetane
Inspection: Laboratory
Customization: Support

Product Description

 About Hot water systems/Gas boiler thermostat

 Single knob control (turn off the heat, often open flame, temperature setting),with flame-out protection  device ,restart automatically locked .
 The pressure of the often open flame traffic and the main airway can be adjust .
 There are two groups Air inlet and air outlet in the Side and bottom,to facilitate rapid installation in a  reliable way.





 Packaging & Delivery:


 Packaging Details: Plastic bag and cartons
 Delivery Detail: 15 days after order confirmation







  Scope of Application









 Specifications:

 Natural gas heater with thermostat
 1.The high quality.
 2. Different styles.
 3.The best delivery date.
 4.Customiza







Parameter Specification  Hot water systems/Gas boiler thermostat


Operating temperature13ºC-38ºCCustomization
Intake way1/2---14NPT . Quick connectorCustomization
Outlet wayM16×1.5 , 3/8-19NPTCustomization
MaterialAluminum alloy
Maximum intake pressure50mbar
Exhaust pressure3-18mbar
Voltage regulatorWithout
Solenoid valve drop-away current and absorption current80-200mACustomization
Sealed wayRubber seal
Thermocouple interfaceM8×1.0 , M9×1.0Customization
SUITABLE GASLiquefied petroleum gas, natural gas
Drive modeThermal expansion
Ambient Temp0ºC-80ºC

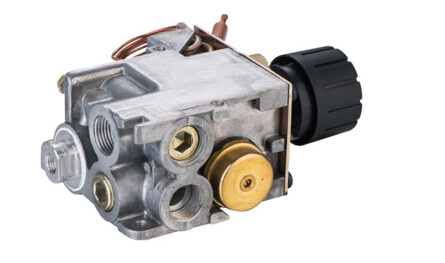

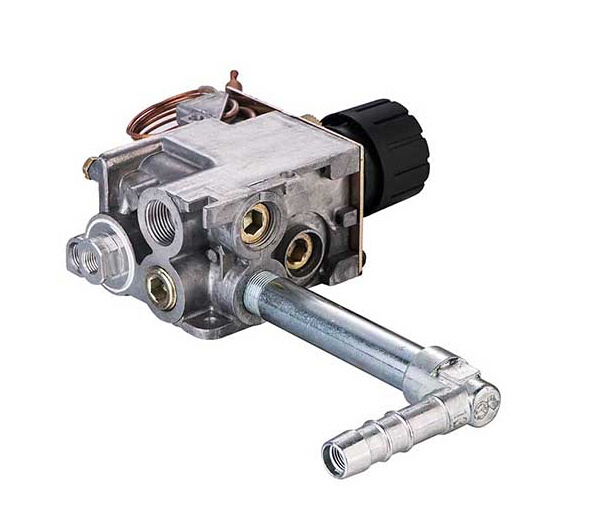

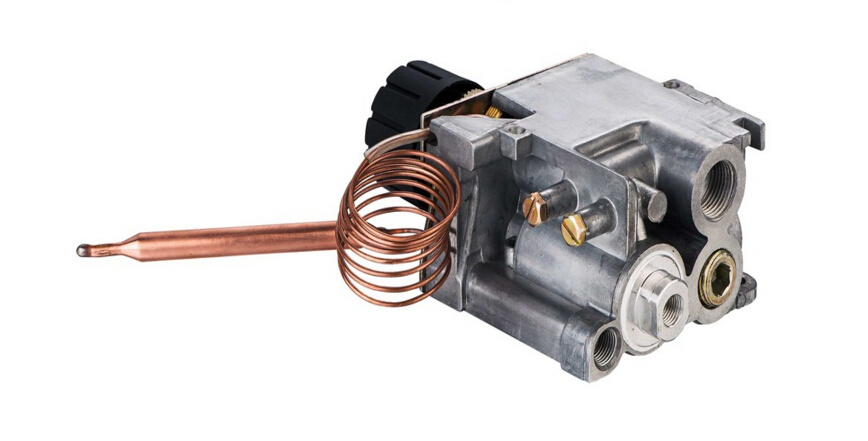

The picture of the Gas thermostat in valves/thermostat in celsius


















Zhejiang Huaxi Electronics Co., Ltd is located at the foot of national key place of interest Yandang Mountain and abuts on "China Electric Capital"Liushi, Wenzhou. It was founded in 1997 with a floor area of 4, 003 sq. M, and building area of 5, 600 sq. M. At present, it owns more than 100 staff including 16 engineers.

The Company mainly produces(WENHAN, HX brand) kinds of temperature controller, overheat temperature protectors, temperature displays and gas temperature control valves, which are wideyl applied in electric water heater, electric oven, washing machine, plastic machinery, west cabinet equipment, fuel gas oven, gas air-condition, Turkey cooker, boiler pump, central air-condition heating, ventilation system and such support control products.

The companys is development, production of metallized film capacitors. It is equipped with advanced production equipment and detection instruments. The products are of stable and reliable quality and widely used in fields such as communication, household appliances, power supply, green lighting, commputer, industrial control, electric tool, auto-eletctonics, etc.

Since the foundation of the company, we have always insisted on the principle of paying equal attention to talents and products; Absorbing experienced engineers and professional managing personnel. Basing on strict management, high techonlogy, advanced mechanical facilities, perfect test technique, it can provide the user whit high quality products and good fater-sales service. The main products have been certified to CSA, VED, CQC and CE. The quality control system has been wholly carried out in conformity with ISO. The products mand by our company are used with those of famous domestic manufacturers. The company has become the cooperation partner of foreign famous brand OEM. The products are well sold all over China and also exported abroad, selling well around China and exported oversas.
