Gas Tubine Flow Sensor, Air Flow Meter, Water Intelligent Flowmeter
| Price: |
US $ 800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
LDZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Version: |
New Design |
| Language: |
English |
| Advantage: |
Updated Design |
| Sensor: |
Tube/Flange |
| Accuracy: |
±0.2-0.5% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Atomic Physics |
| Size: |
Dn50-100 |
| Warranty Period: |
1year |
| Transmission Distance: |
1000m |
| Type: |
Variable Area Flow Meter |
Product Description

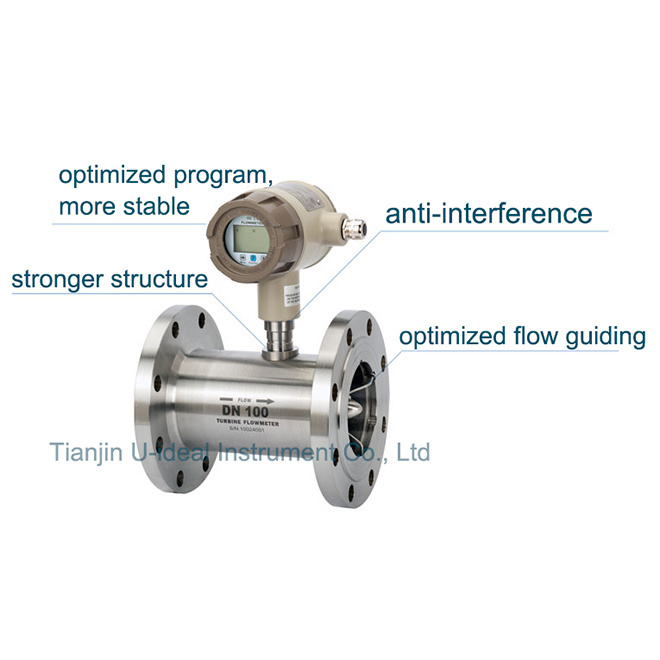

Tianjin U-ideal Instrument Co., Ltd Turbine Flow meter LCD Intelligent Liquid Turbine Flow Meter 4~20mA/digital water flow meter/marine fuel flow meter
What is Turbine Flow Meter?Turbine flow meter is a new kind of flow meter that absorbs the advanced flow metering technologies home and abroad. When fluid passes the turbine, it causes the turbine to rotate at a speed proportional to fluid velocity. As each turbine blade passes through the magnetic field generated by the meter's magnetic pickup, an AC voltage pulse is generated. These pulses provide an output frequency that is proportional to volumetric flow.
Turbine flow meters are designed to have so many characteristics, such as simple structure, light weight, high precision, good reiteration, sensitive reaction, easy installation and using. Equipped with other display devices with special functions, turbine flowmeter can also do quantity control, excessive alarm and so on. It is really perfect in flow measurement and energy saving.
Features of Turbine Flow Meter
High accuracy, usually reach ± 1%R, ± 5%R, or even reach ± 0.2%R for high-precision type
Good repeatable and repeatability, can reach 0.05%-0.2% in short term, if regular calibration or online calibration can get an extremely high accuracy, so it is preferred in trade
Pulse signal output, suitable for total flow measurement and computer connection, no zero drift, strong anti-jamming capability
High frequency signal (3-4kHz), strong signal resolution
Wide range, middle and big diameter can reach 1: 20, and small diameter can reach 1: 10
Compact structure, easy installation and maintenance, strong flow capacity
Suitable for high pressure measurement. The interface of the instrument doesn't have to be opened, so it can be made to a high pressure instrument easily
It can be customer-tailored according to different sensors, for example, low-temperature type, two-way type, underground type, sand special type, etc
It can be insert type, suitable for large diameter measurement, little pressure loss, low price, can be taken out in continuous flow, and easy installation and maintenance.
Applications of Turbine Flow Meter
Water Treatment
Pump Testing
Paper & Pulp
Effluent Treatment Plants
Waste Water & Sewerage
Food & Diary Processing
Chemical Process PlantsOur other related products: Level gauges, flow meters, pressure transmitters, indicators, industrial system.
| Diameter and connection | 4,6,10,15,20,25,32,40 thread connection |
| (15,20,25,32,40)50,65,80,100,125,150,200 flange connection |
| Accuracy | ±1%R,±0.5%R,±0.2%R(Customer-made) |
| Range | 1:10, 1:15, 1:20 |
| Instrument material | 304 Stainless Steel, 316L Stainless Steel, etc |
| Medium temperature | -20°C--+110°C |
| Environment condition | Temperature:-10°C--+55°C, Relative humidity: 5%-90%, Atmospheric pressure: 86-106Kpa |
| Output signal | Sensor: Pulse frequency signal, Low voltage: ≤0.8V,High voltage: ≥8V |
| Transmitter: Two-wire 4-20mA current signal |
| Power supply | Sensor: +12VDC,+24VDC(optional) |
| Transmitter: +24VDC |
| Site display type: instrument with 3.2V lithium battery |
| Signal transmission wire | STVPV3×0.3 ( three-wire), 2×0.3 (two-wire) |
| Transmission distance | ≤1000m |
| Signal wire interface | Basic type: Hausmann interface, Explosion proof: Internal thread M20*1.5 |
| Explosion class | Basic type: Non-explosion proof product, Explosion proof: ExdllBT6 |
| Protection degree | IP65 |
Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
