| Prod Model: |
WP401A |
| Measuring Medium: |
Steam, Water, Oil, Air |
| Accuracy Grade: |
0.2%Fs, 0.5%Fs |
| Pressure Range: |
0-0.2kpa to 100kpa, 0-0.2kpa to 400MPa |
| Certification: |
Ce, ISO9001, RoHS |
Product Description

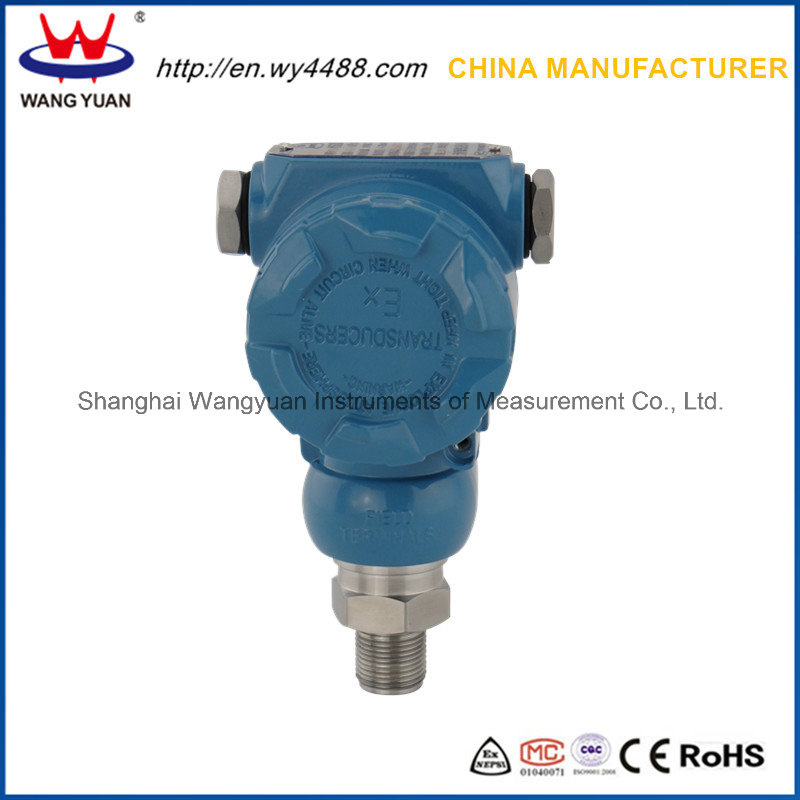

Gauge Pressure 4-20mA Pressure transmitter
Model: WP401A
Application:
This Gauge Pressure 4-20mA Pressure transmitter can be used to measure PRESSURE in:
- Petroleum and chemical industry,
- Gas Bolier, Gas burner
- Electric power, water supply,
- Oil & Gas and other automatic control industries
Description:
1. WP401A Gauge Pressure 4-20mA Pressure transmitter adopt advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology.
2. The gauge pressure swtich/transmitter is designed to work well under various conditions.
3. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure transmitters.
4. Various output signal 4-20mA (2-wire), strong anti-jamming, it is suitable for long distance transmission.
Features of Gauge Pressure 4-20mA Pressure transmitter:
* Imported sensor component
* Measure pressure of Corrosive medium
* World-class pressure transmitter technology
* Compact dimension design, strong
* Light weight, easy to install, maintenance-free
* Range can be adjusted in external, widely range of shift
* 100% Linear meter is configurable
* 3 1/2 LCD or LED digital indicator is configurable
* Explosion-proof type: Ex-iaIICT6--- Intrinsically safe comply with requirement of GB3836·4-83;
Ex-dIIBT4--Flameproof comply with requirements of GB3836·2-83.
Specification:
Name | WP401A Gauge Pressure 4-20mA Pressure transmitter |
Pressure range | 0-±0.2~±100kPa, 0 - 0.2kPa~400MPa |
Accuracy | 0.1%FS; 0.2%FS; 0.5 %FS |
Pressure type | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N). |
Process connection | G1/2,M20*1.5,1/4NPT,1/2NPT, Customized |
Electrical connector | Terminal block, Cable |
Output signal | 4-20mA (1-5V); 4-20mA with HART protocol;0-10mA(0-5V); 0-20mA(0-10V) |
Power supply | 24V DC; 220V AC, 50Hz |
Compensation range | -10~70ºC |
Operation temperature | -40~85ºC |
Material | Shell: Aluminium alloy |
Wetted part: SUS304/ SUS316L/ Teflon |
Media | gas, air, liquids, weak corrosive gas |
Indicator (local display ) | 3 1/2 LCD, 3 1/2 LED, 4 or 5 bits LCD indicator, 1-100% linear meter |
Maximum pressure | Measurement upper limit | Overload | Long term stability |
<50kPa | 2~5 times | <0.5%FS/year |
≥50kPa | 1.5~3 times | <0.2%FS/year |
Note: When range <1kPa, only no corrosion or weak corrosive gas can be measured. |

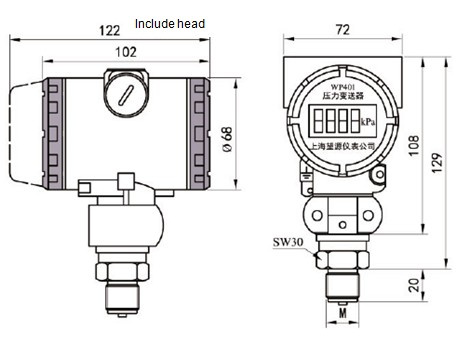

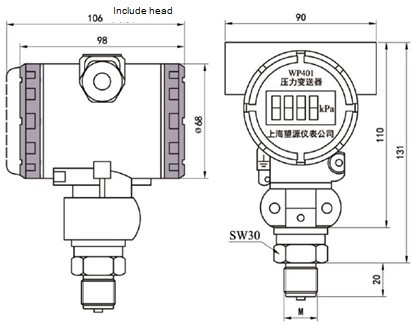

Dimensions of Gauge Pressure 4-20mA Pressure transmitter:
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
