| Prod Model: |
GCK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Insulation Voltage: |
660V |
| Rated Operating Voltage: |
380V, 660V |
| Frequency: |
50Hz |
| Horlzontal Busbar Rated Current: |
6300A |
| Vertical Busbar Rated Current: |
1200A |
| Rated Short Time Withstand Current: |
80ka |
| Rated Short Time Peak Current: |
176ka |
| Protection Degree: |
IP30 |
| Confirmity Standard: |
IEC60439, GB7251.1 |
| Warranty: |
1year |
| Type: |
Power |
| Form: |
All- packaged Type |
| Operation Voltage: |
Low Voltage |
| Size: |
1 Uint |
| Application Range: |
High-rise Buildings |
| Shell Protection Grade: |
IP30 |
| Brand: |
Yangke |
Product Description

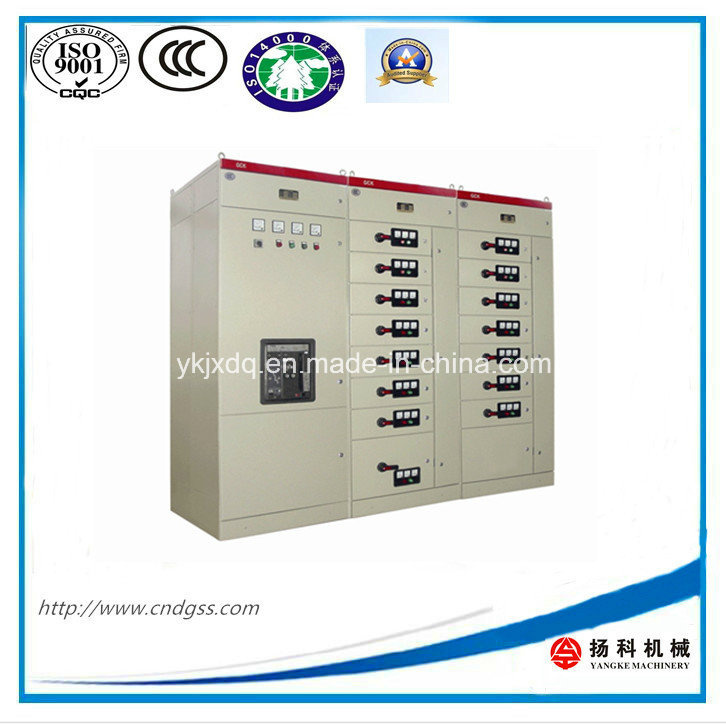

GCK electrical switchgear applies to 380 - 660V AC 50Hz low-voltage distribution system for power power receiving and feeding, lighting, motor control and power compensation. It contains functions of power center (PC) and motor control center(MCC) which is served for power supply and distrbution as well as power control in places as factories, mines, airport, hospitals, high-rise buildings and etc.
GCK low-voltage withdrawable switchgear is a complete switchgear assembled with modules in factory(PC),motor control center switchgear(MCC) and power; the requirements of IEC60439 Low-voltage complete switchgear equipment and controller JB/T9661 Low-voltage withdrawable switch equipment standard.
Main technical datas
| No. | Item | Parameter |
| 1 | Protection degree | IP30 |
| 2 | Rated operating voltage(V) | AC380 |
| 3 | Rated insulation voltage(V) | 660 |
| 4 | Environment | Indoor |
| 5 | Altitude | ≤2000m |
| 6 | Ambient temperature | -50~+40ºC; min. temperature of storage and transportation -30ºC |
| 7 | Relative humidity | ≤85% |
| 8 | Control motor capacity(kW) | 0.45-155 |
| 9 | Lifespan | 500 times operation |
| 10 | Horizontal busbar current rating(A) | 1600. 3150 |
| 11 | Vertical busbar current rating(A) | 630 |
| 12 | Main circuit contact connector current rating(A) | 200, 400 |
| 13 | Auxiliary circuit contact connector current rating(A) | 20 |
| 14 | Feed circuit max. current rating(A) | 400 |
| 15 | Power reception circuit current rating(A) | 1000,1600,2000,2500 |
| 16 | Rated short time withstand current (effective value/A) | 50, 80 |
| 17 | Rated short time withstand current (Peak value/A) | 5, 176 |
| 18 | Withstand voltage(V/min.) | 2500 |
Packaging & Delivery
| Packaging Detail: | wooden box |
| Delivery Detail: | within 5-15working days after the deposit |
