| Prod Model: |
GCK |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe |
| Indoor Metal-Clad Enclosed Switchgear: |
Metal Clad Switchgear |
| Low Voltage Switchgear: |
IP31or IP54 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
I Overview

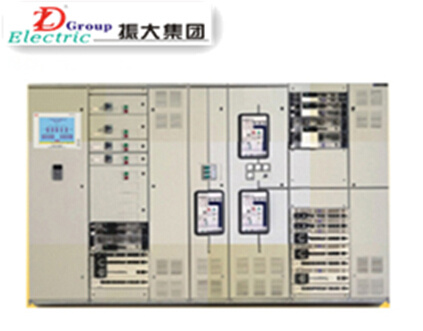

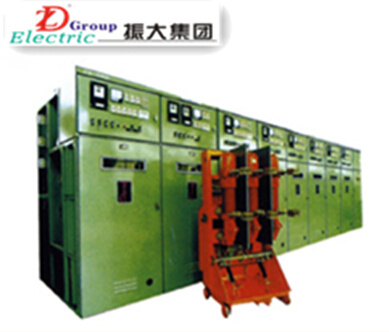

GCK type low voltage switchgear (hereinafter referred to as the device) is suitable for AC 50Hz, rated working voltage 400V, rated current 4000A and below the low-voltage power grid, for power generation, transmission and distribution system as dynamic lighting, power conversion, Protection and Control and other occasions. All types of devices through pilot projects (TTA) and National Compulsory Certification (CCC), and after a long trial run assessment.
Device complies with GB7251.1-2005 and JB/T9961 standards.
II Environment conditions
- Indoor installation.
- The ambient temperature is not higher than +40 ºC, not less than -5 ºC, and 24h average temperature does not exceed the +35 ºC.
- Air cleaner, the relative humidity at the highest ambient temperature of +40 ºCnot more than 50% in the lower temperature allows a higher humidity, as in +20 ºC, relative humidity of 90%, and allows accidental temperature changes a small amount of condensation produced:
- Altitude does not exceed 2000m.
- Pollution degree: 3.
- during transportation and storage temperature of -25 ºC~ +55 ºC, in a short time (less than 24h) up to +70 ºC.
- Device used in some of the electrical components and accessories do not meet these conditions and conditions of use do not match with the normal conditions, by the manufacturer and user consultation.
III Technical parameters
| Rated voltage Ue V | 400
400 |
| Rated insulation voltage Ui V | 690
690 |
| Rated current In A | The level bus | 630~1600 | 1000~2500 | 2500~4000 |
| Vertical bus | 1000,1250 |
| Rated short time withstand current Icw(1s) kA | The level bus | 30 | 50 | 80 |
| Vertical bus | 30 | 50 | 50 |
| Rated peak withstand current Ipk kA | The level bus | 63 | 105 | 176 |
| Vertical bus | 63 | 105 | 105 |
| Protection class | IP30,IP40 |
Established in the middle of 90's, Shanghai Zhenda group has a dozens of subsidiary companies. The group mainly engaged in transmission and distribution equipment, metallurgical industry, green energy, real estate and energy efficient electrical products.

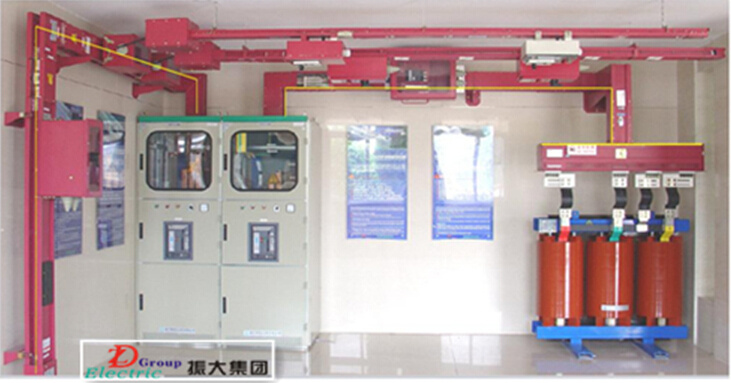

Shanghai Zhenda Complete sets of Electrical Co., Ltd which is managed and holded by the group mainly manufacture busway, cable bridge and complete sets of HV/LV switchgear. As producing designated enterprise of HV/LV complete sets of equipment of departments of national machinery and power supply industry, Shanghai Zhenda Complete sets of Electrical Co., Ltd has two production bases in Taizhou city named Jiangsu Zhongyuan Electrical Limited Company and Jiangsu Aiqing cable bridge and busway equipment Company. The factories cover an area of 35, 000 square meters with the building area of 20, 000 square meters. The company has international advanced production equipment including 3 flexible production lines, stored energy spot, welding machine, CNC bus machine, CNC punching machine and more than 20 sets of large equipment and so on. All of the employees is more than 150 people, including over 20 professional engineers. Based in the center of the international metropolis Shanghai, with the support of the Group's production scale, manufacturing standards and R&D capabilities, Zhenda has become one of the largest scale and most competitive manufacturer of transmission and distribution equipment company.
Shanghai Zhenda Complete sets of Electrical Co., Ltd takes the lead to pass the authentication of ISO9001-2000 and CCC National Compulsory authentication and makes a number of product patents in particular ZDMC series busway (Patent Number: ZL-2008.2013538.8) that has reach international first-class level.
The company has modern enterprise management, complete quality inspection system, strict testing standards and good after-sales service, which make us get into the market evaluation to be the best. Company is evaluated as "China star enterprise", "A level honor enterprise" and "contract and credit enterprise" and so on.
Adhering to the innovation development double win business philosophy, Group is growing at an annual rate of more than 30% expansion and establish long term cooperation with many well-known domestic and foreign electrical automation companies.
