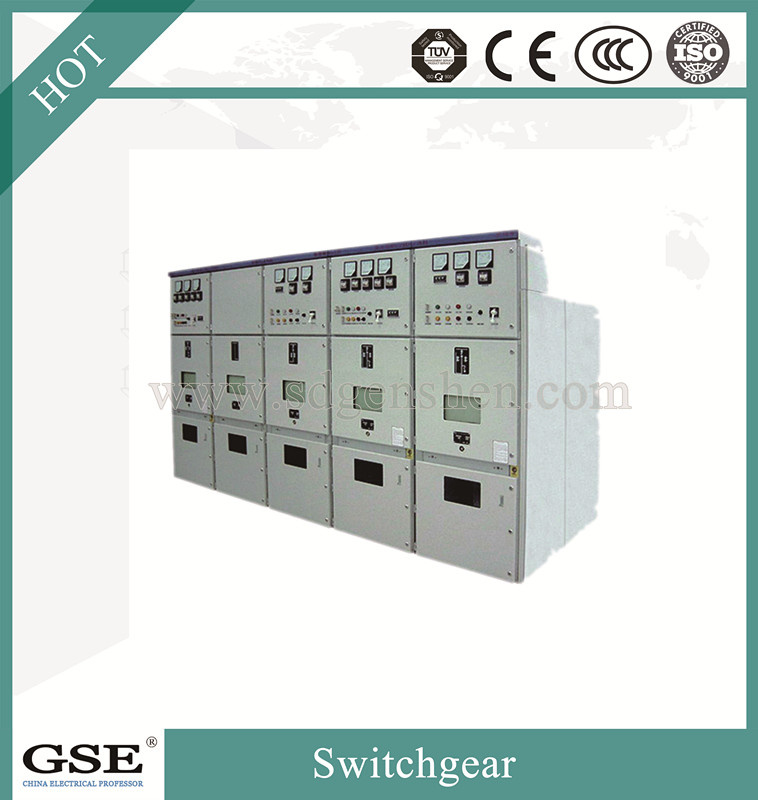

Gcs Draweable Low Voltage AC Metal Enclosed Switchgear
| Price: |
US $ 2500-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Rated Voltage: |
380V |
| Rated Current: |
2500A/2000A/1000A/600A/400A |
| Rated Short Circuit Breaking Current: |
15ka/30ka/50ka |
| Rated Peak Tolerant Current: |
30ka/65ka/105ka |
Product Description
GCS draweable low voltage AC metal enclosed switchgearThe partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard
1.Product Overview
GGD AC low-voltage distribution cabinet is suitable for power distribution system of AC 50 Hz, rated working voltage 380 V and rated working current 3150 A in power plants, substations, and industrial enterprises, etc. It is used as lighting, electric energy conversion, distribution and controlling of distribution equipment.
GGD AC low-voltage distribution cabinet is designed according to senior management of energy ministry, general electric power users and requirements of design department. The device is a innovative type of low-voltage distribution cabinet that is in line with the safety, economic, reasonable and reliable principles. The product has high capability of breaking, high thermal stability, flexible electrical scheme, convenient combination, seriation, high practicability, innovative structure, high protection grade, etc. It can be used as the upgraded replacement of the low-voltage complete switchgears.
The device conforms to IE439 < Low-voltage complete switchgear and control equipment >, GB7251 < Low-voltage complete switchgear> standards.
2.Normal working environment:| Air temperature around | No higher than 40ºC and lower than -5ºC |
| Average temperature | No more than +35ºC within 24 hrs. Needs to drop the capacity according to actual conditions; |
| Altitude | No more than 2000 m |
| Highest temperature | +40ºC |
| Relative air humidity | No more than 50%.Larger relative humidity is allowed when the temperature is relatively low: ex. +20ºC 90%. Consider the frost effect due to temperature change accidentally; |
| the inclination of the device to the vertical of the ground is no more than 5 degrees, and the whole cabinets are in relatively same level (conforms to GBJ232-82 standard) |
| The device should be installed in a place without violent vibration and impact, and no corrosion to its electric components |
| | |
3.Electric basic parameters| Model | Rated voltage (V) | Rated current (A) | Rated short circuit breaking current (KA) | Rated short-term tolerant current (1s) (KA)
| Rated peak tolerant current (KA) |
| GGD1 | 380 | A | 1000 | 15 | 15 | 30 |
| B | 600(630) |
| C | 400 |
| GGD2 | 380 | A | 1500(1600) | 30 | 30 | 65 |
| B | 1000 |
| C | 600 |
| GGD3 | 380 | A | 3150 | 50 | 50 | 105 |
| B | 2500 |
| C | 2000 |

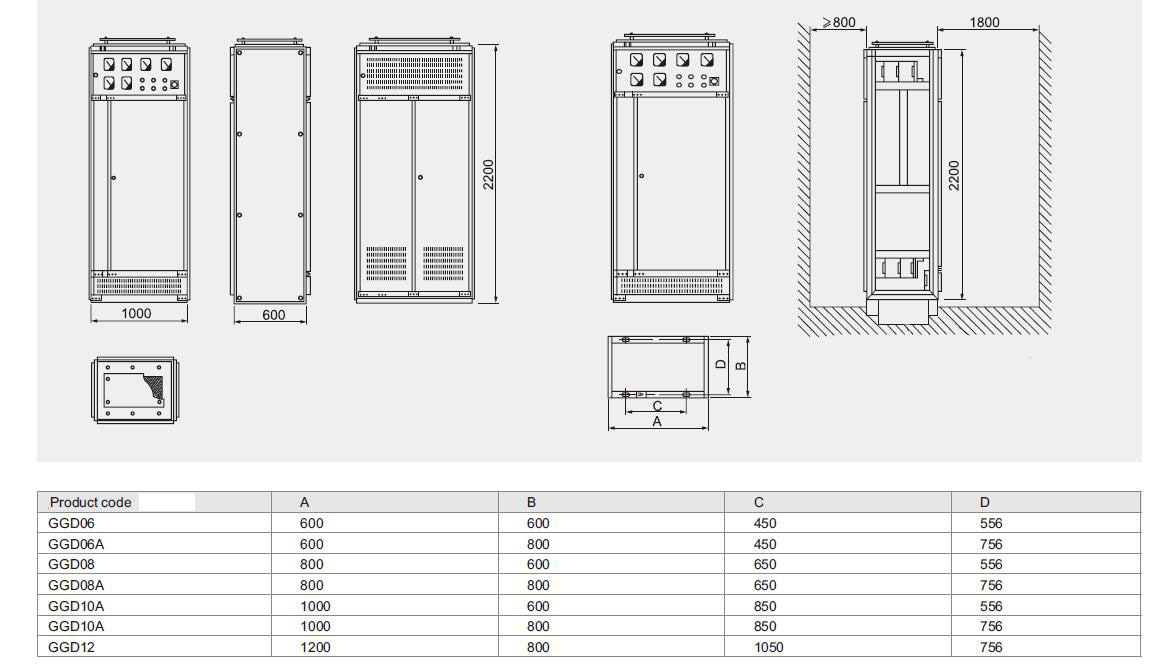

4.Drawn
5.Package

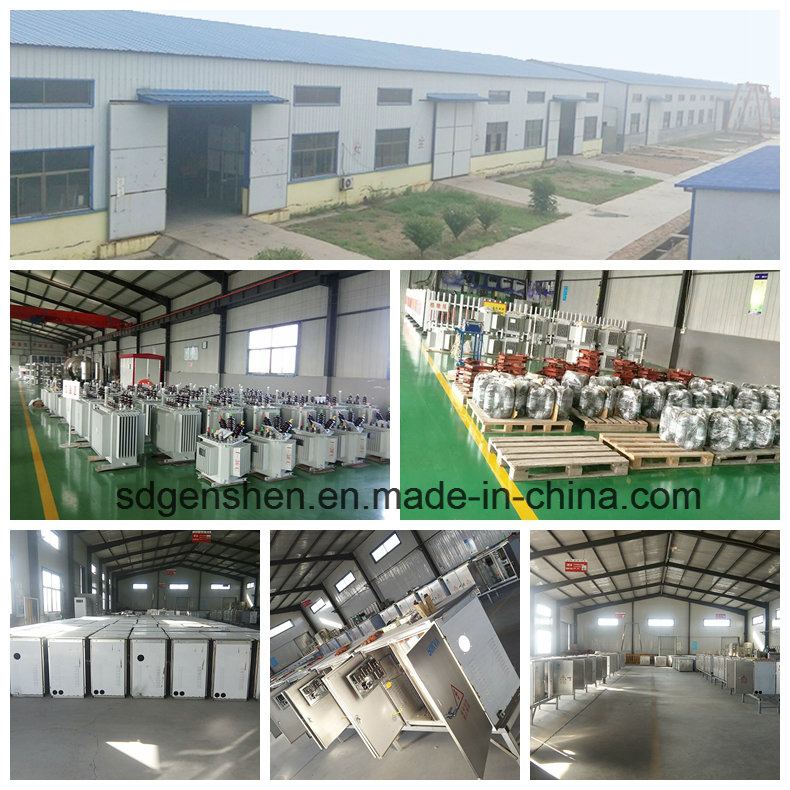

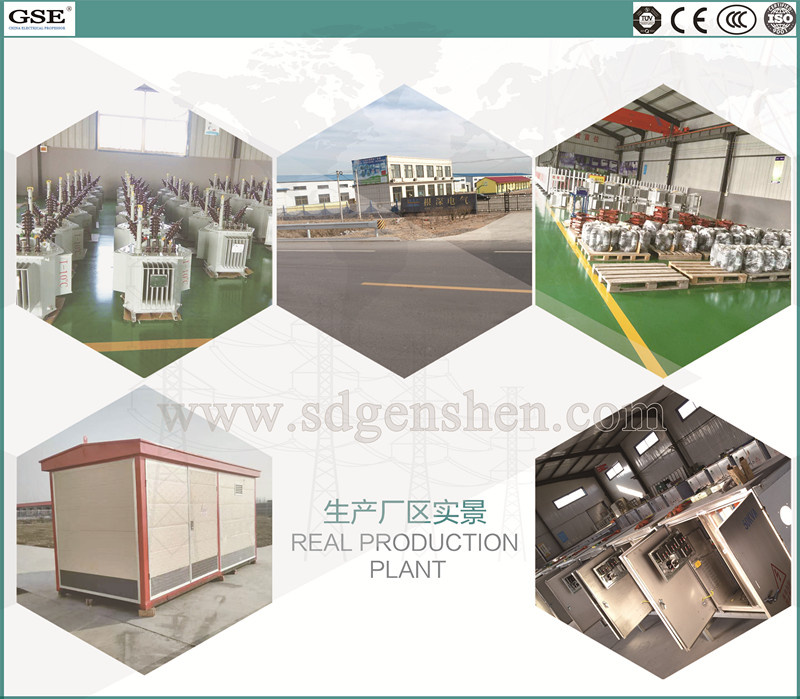

6.Our Company
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao.We are specialized in JP Cabinet, Power Distribution, Electric Energy Metering box, High Voltage Switch Cabinet, Box Type Substation, Transformer, Protection Devices, Low voltage switchgear and other electrical equipment and accessories with ISO9001, TUV, and CE standard in China, which is the partner of State Grid Corporation and National Railway Administration of China.We have always cooperated with China's government.We guarantee the highest quality of our products and services with every order.Taking exceptional care with every request is not only our policy, it's our promise.We will at all times be known as professional and honorable operators who are as good as our word.
7.Certificate
8.RFQ 8.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
8.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
8.3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
8.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
8.5.Q: How can I pay you?
A: T/T, L/C is very well used.
8.6.Q: What about the production?
A: Produce time is 4~6weeks.
8.7.Q: Could you offer some spare parts?
A: Yes, no problem.
8.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
